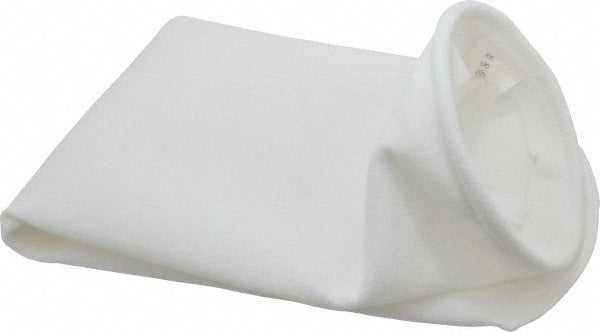

Pentair KE100K2S High Flow Bag Filter 100 Micron 200 Gpm

Product Description

The PENTAIR KE100K2S is a Size 2 high-flow bag filter designed for industrial and commercial liquid filtration systems requiring high throughput with fine particulate removal. Rated at 100 microns with a maximum flow rate of 200 GPM, this filter handles demanding flow conditions without sacrificing filtration efficiency. The polyester filter bag measures 7 inches in diameter and 32 inches in length, providing 4.4 square feet of effective filtration area. It is suited for water treatment, process fluid filtration, and similar high-volume applications where consistent particulate control is required.

This filter is used in Size 2 high-flow bag filter housings in commercial and industrial settings. Typical applications include process water filtration, cooling tower side-stream filtration, and general liquid filtration in manufacturing or facility maintenance environments. The 100-micron rating makes it appropriate for removing larger particulate loads in first-stage or pre-filtration configurations. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers of this type of filter element.

Key Features

• 100-micron filtration rating for effective coarse-to-medium particulate removal
• 200 GPM maximum flow rate supports high-volume system demands
• Size 2 bag format fits standard high-flow Size 2 filter housings
• Polyester construction rated up to 300 degrees F for elevated-temperature service
• 4.4 square feet of filtration area for extended service intervals
• 7-inch diameter by 32-inch length matches standard Size 2 high-flow housing dimensions

Compatibility

Designed as an OEM-style replacement element for Size 2 high-flow bag filter housings accepting a 7-inch diameter by 32-inch bag filter.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off flow and depressurize the filter housing completely before opening the vessel and replacing the bag element. Ensure the sealing ring seats properly to prevent bypass. Verify the housing is rated for the system operating pressure and temperature before returning the system to service.
