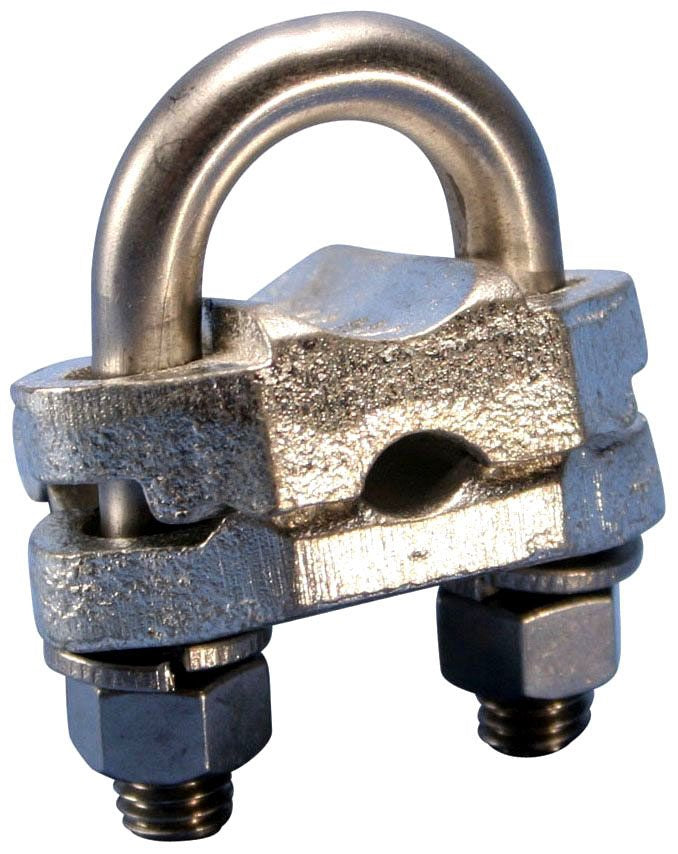

Pentair GC064 nVent ERICO U-Bolt Ground Rod Clamp

Product Description

The Pentair GC064 is a U-bolt ground rod clamp. It connects grounding conductors to ground rods. This clamp works with ground rods measuring five-eighths to three-quarters inches in diameter. It accommodates conductor sizes from four AWG solid to two-aught AWG stranded, as well as sixteen to fifty square millimeters stranded. This clamp ensures a reliable connection in grounding systems. It features a secure design to endure harsh underground conditions. Made with high-quality materials, it maintains its performance over time.

• Designed for five-eighths to three-quarters inch ground rods
• Accepts four AWG solid to two-aught AWG stranded conductors
• Constructed from 304 stainless steel and bronze

Product Highlights

This clamp is essential for grounding applications. It provides a strong and lasting connection.

Product Information

Standard Information

• UPC: 782856617112

Technical Specifications

• Rod Size: five-eighths to three-quarters inches
• Conductor Size: four AWG solid to two-aught AWG stranded, sixteen square millimeters to fifty square millimeters stranded
• Material: 304 stainless steel and bronze
• Conductor Orientation: Parallel or perpendicular
