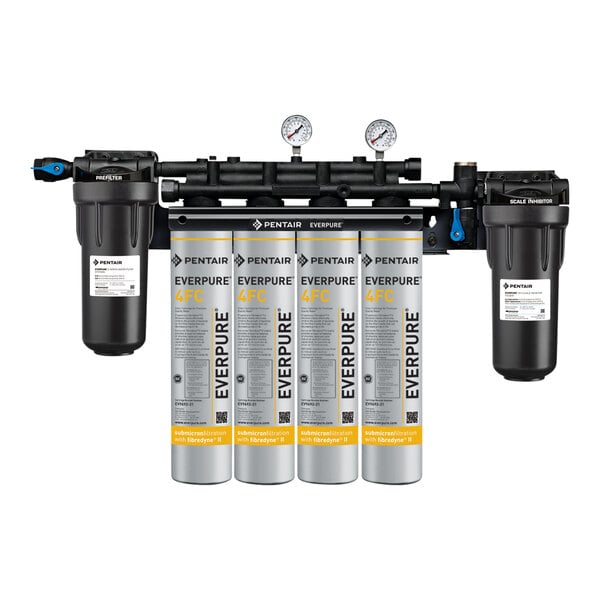

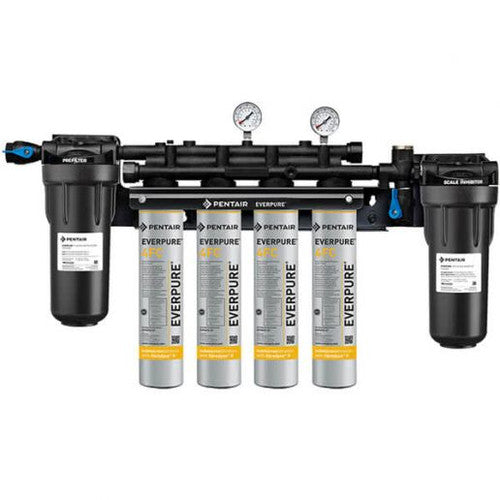

Pentair EV932944 PENTAIR High Flow CSR Quad-4FC Water Filtration System

Product Description

The Pentair EV932944 Everpure High Flow CSR Quad-4FC Water Filtration System effectively filters water. It is designed to remove chlorine, cysts, bacteria, and sediment. This system uses Fibredyne submicron carbon block filtration to capture dirt and particles as small as 0.5 microns.

• Filters water up to sixty thousand gallons at a maximum flow rate of ten GPM.
• Quick change design for easy and sanitary cartridge replacement.
• Operates within a pressure range of ten to one hundred twenty-five PSI and a temperature range of thirty-three degrees Fahrenheit to one hundred degrees Fahrenheit.

Product Highlights

This system is suitable for high volume and combination water-fed equipment. It includes an SR-X Feeder with a scale stick cartridge that prevents scale buildup in ice machines and coffee brewers.

Product Information

Standard Information

• Brand: Everpure
• Capacity: 60,000 Gallons (227,125 L)

Technical Specifications

• Cubic Measurement: 2.5898
• Dimensions: 19.5 x 34 x 6.75
• Filter Media Type: Spun Pre Filter, Fiberdyne, Hydroblend Post Filter
• Filter Rating (Microns): 10 Micron Pre Filter, 0.5 Micron Primary Filters
• Height: 19.5 Inches
• Length: 6.75 Inches
• Maximum Flow: 10.00 GPM (37.8 Lpm)
• Maximum Pressure: 125 PSI (8.6 Bar)
• Minimum Pressure: 10 PSI (0.7 BAR)
• Removes Scale/Lime: Yes
• Removes or Reduces Taste/Odor: Yes
• Temperature Range: 33°F to 100°F
• Width: 34 Inches
• Inlet & Outlet Connection: 3/4 Inches
• Operational Weight: 43 lbs. (10.50 kg)
• Shipping Weight: 37 lbs.
• Depth: 6.75 Inches
• Micron Rating: 0.5 Micron
• Service Flow Rate: 10 GPM
