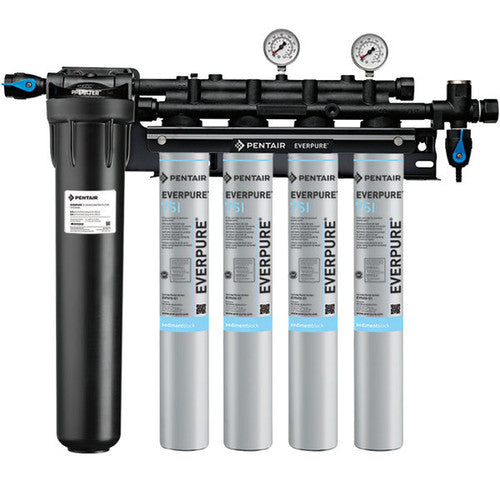

Pentair EV932477 Everpure Insurice Quad PF 7SI Filtration System

Product Description

The Pentair EV932477 Everpure Insurice Quad PF 7SI Filtration System is designed for filtration in ice machines. This system is efficient for cubers that exceed 2,401 lbs of daily output and flakers that exceed 5,001 lbs per day. It has a maximum service flow rate of fourteen gallons per minute and operates under a pressure range of ten to one hundred twenty-five psi. This filtration system effectively reduces scale, particulate matter, and cysts, while also limiting slime growth.

• Addresses scale build-up to lower ice machine maintenance.
• Provides filtration at 0.5 microns for effective particulate and cyst reduction.
• Offers a rated capacity of one hundred thousand gallons for reliable performance.

Product Highlights

This filtration system enhances ice machine efficiency and quality by ensuring cleaner ice and prolonged equipment lifespan.

Product Information

Standard Information

• Brand: Pentair
• Model Number: EV932477

Technical Specifications

• NSF Certification: 42 and 53
• Micron Rating: 0.5 micron
• Recommended Usage: Cubers over 2,401 lbs/day and flakers over 5,001 lbs/day
• Maximum Service Flow Rate: 14 gpm (53 Lpm)
• Rated Capacity: 100,000 gallons (378,541 L)
• Pressure Requirements: 10 - 125 psi (0.7 - 8.6 bar)
• Temperature Range: 35 - 100°F (2 - 38°C)
• Overall Dimensions: 25.59 inches H x 29.36 inches W x 6.75 inches D
• Inlet Connection: 3/4 inches
• Outlet Connection: 3/4 inches
