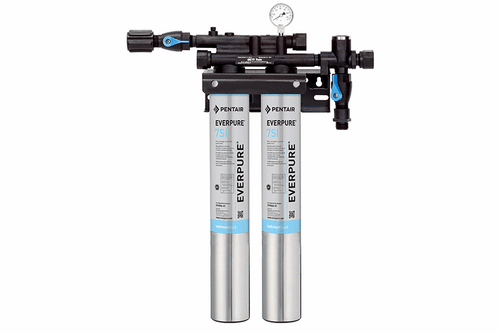

Pentair EV932472 Everpure Insurice Twin 7SI Water Filtration System

Product Description

The Pentair EV932472 Everpure Insurice Twin 7SI Water Filtration System is suitable for use with Pentair Everpure Insurice and Insurice PF Manifold Systems. This system effectively filters sediment down to 0.5 micron using advanced depth filtration and Fibredyne media. It efficiently reduces harmful cysts like Cryptosporidium and Giardia, enhancing water safety for ice production. By keeping chlorine and chloramines present, it minimizes slime growth in machines and bins, ultimately reducing maintenance and downtime costs.

• Filters particles as small as 0.5 micron for better water quality.
• Reduces cysts to ensure safer water for ice creation.
• Helps prevent scale buildup, extending the life of ice machines.

Product Highlights

The system features a sanitary cartridge replacement making it easy to maintain and replace. It is certified to NSF/ANSI Standard 53 and complies with ASHRAE Standard 188P.

Product Information

Standard Information

• Brand: Pentair
• MPN: EV932472

Technical Specifications

• Capacity Gallons: 50,000 gallons (189,270 L)
• Cubic Measurement: 1.3346
• Diameter: 25.26 inches x 16.6 inches x 5.5 inches
• Filter Media Type: Fiberdyne media
• Filter Rating: 0.5 microns
• Height: 25.26 inches
• Length: 5.5 inches
• Maximum Flow Gallons/Minimum: 7.0 GPM (26.5 LPM)
• Maximum Pressure: 125 PSI (8.6 Bar)
• Minimum Pressure: 10 PSI (0.7 Bar)
• Temperature Range: 40°F to 100°F (4.44°C to 37.78°C)
• Type: Insurice Twin 7SI System
• Width: 16.6 inches
• NSF: 42 Aesthetic Effects / NSF 53
• Micron Rating: 0.5 micron
• Service Flow Rate: Maximum 7.0 GPM (26.5 LPM)
• Overall Dimensions: 25.26 inches H x 16.6 inches W x 5.5 inches D
• Inlet Connection: 3/4 inch
• Outlet Connection: 3/4 inch
