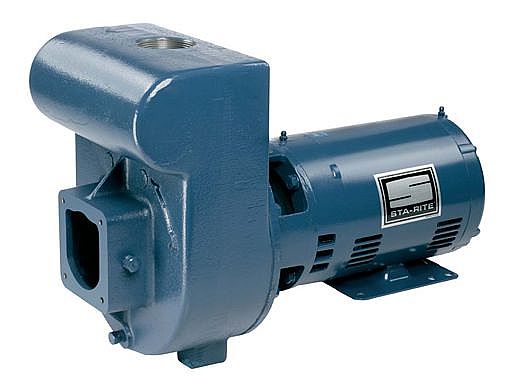

Pentair DMH3-171 Centrifugal Commercial Pump 230/460V 3-Phase 3HP

Product Description

The Pentair DMH3-171 centrifugal commercial pump is a reliable solution for high-performance water movement in public swimming pools, aquatic facilities, water parks, and fountains. Designed for durability and efficiency, this 3 horsepower, 230/460V, 3-phase pump is equipped with a heavy-duty motor and cast iron construction.

• High performance and self-priming characteristics
• Medium head model with continuous duty rated motor at 3450 RPM
• Suitable for outdoor installation

Product Highlights

This commercial pump features a back pull-out design for easy servicing, a precision cast and machined bronze impeller for long seal life, and a non-overloading design. It is NEMA Listed and suitable for outdoor installation, making it ideal for high-usage environments.

Product Information

Standard Information

• Brand: Pentair
• MPN: DMH3-171
• Application: Public swimming pools, aquatic facilities, water parks, fountains

Technical Specifications

• Horsepower: 3 HP
• Voltage: 230/460 V
• Phase: 3
• Speed: 3450 RPM
• Material: Cast iron
• Weight: 124.3 lbs
• Series/Model: D-Series
