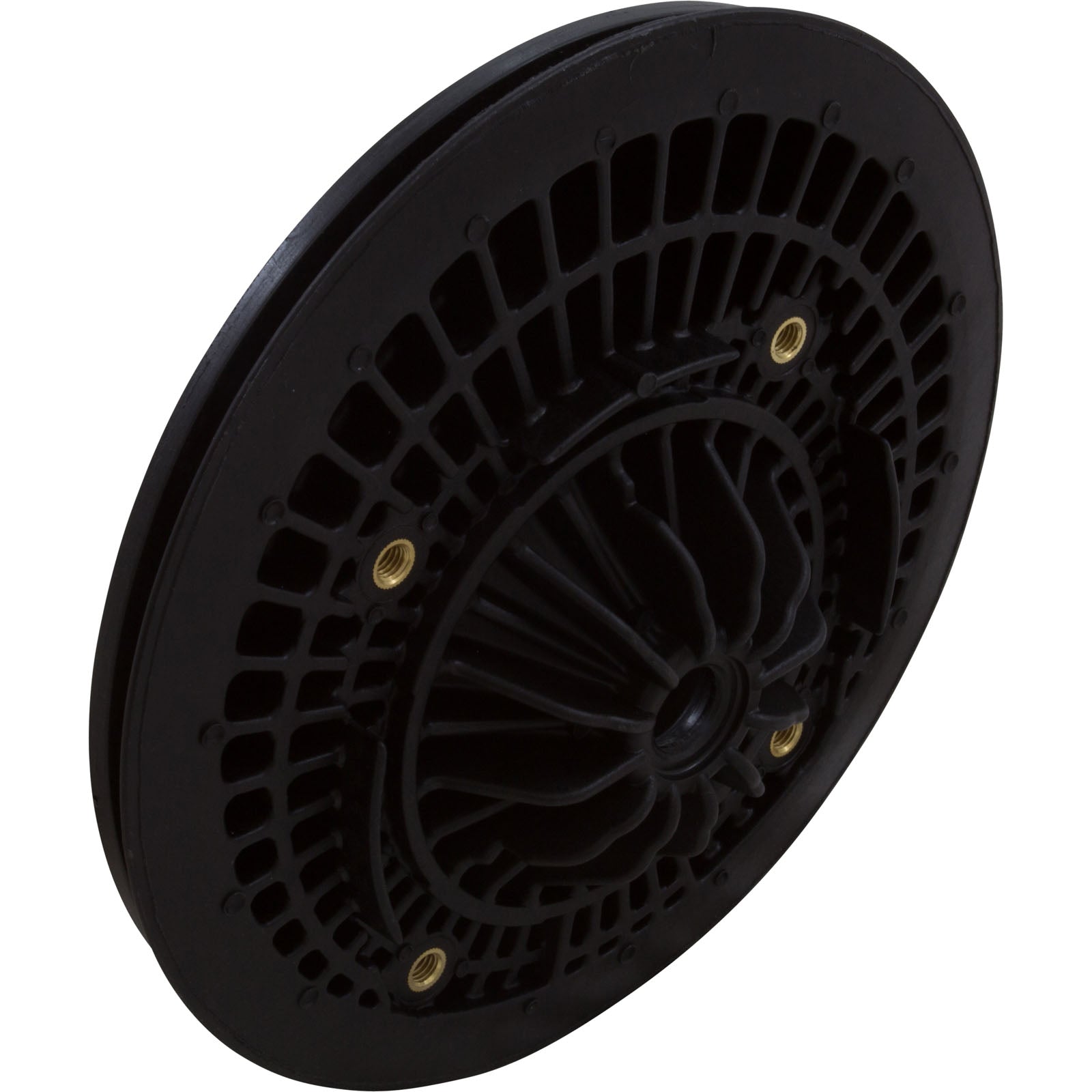

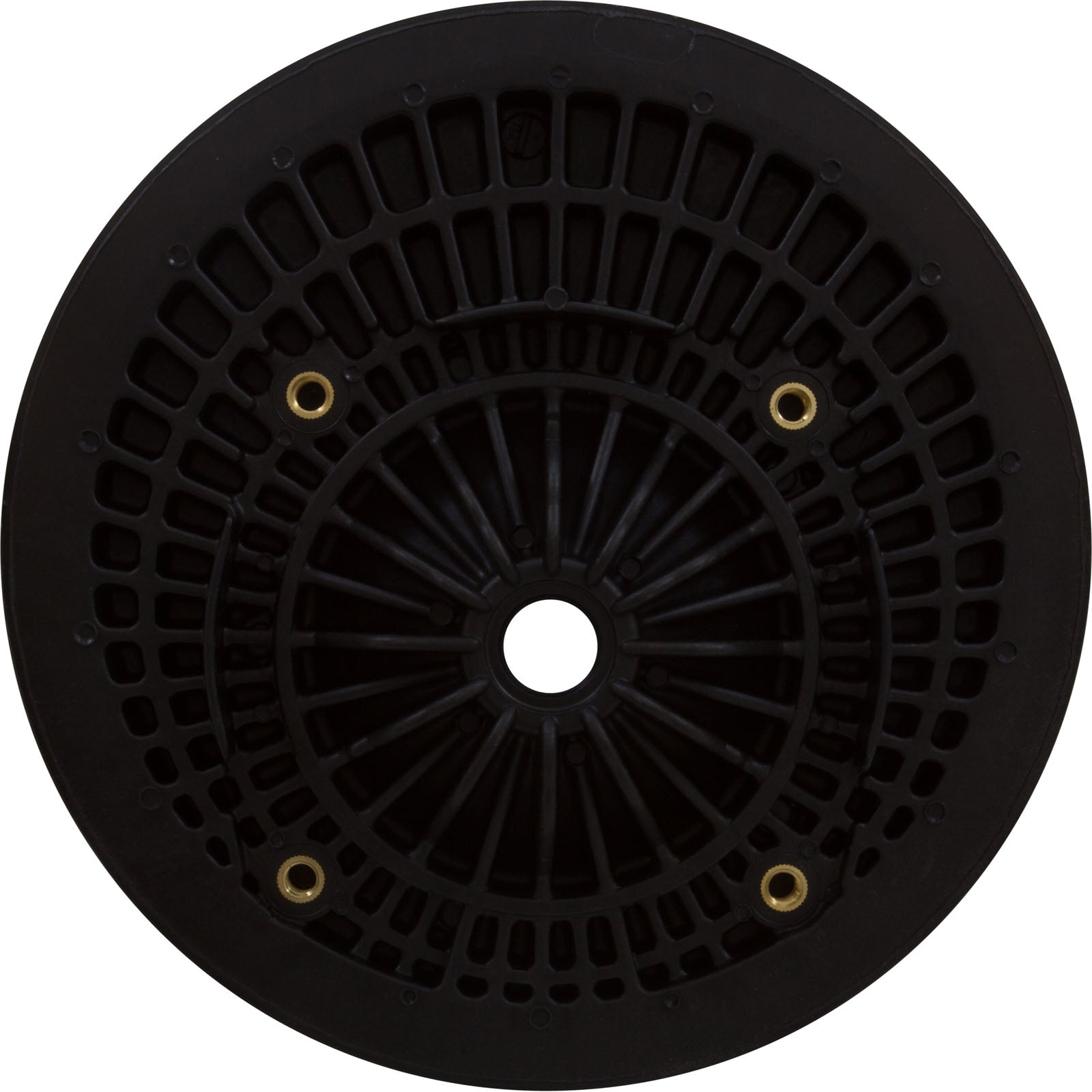

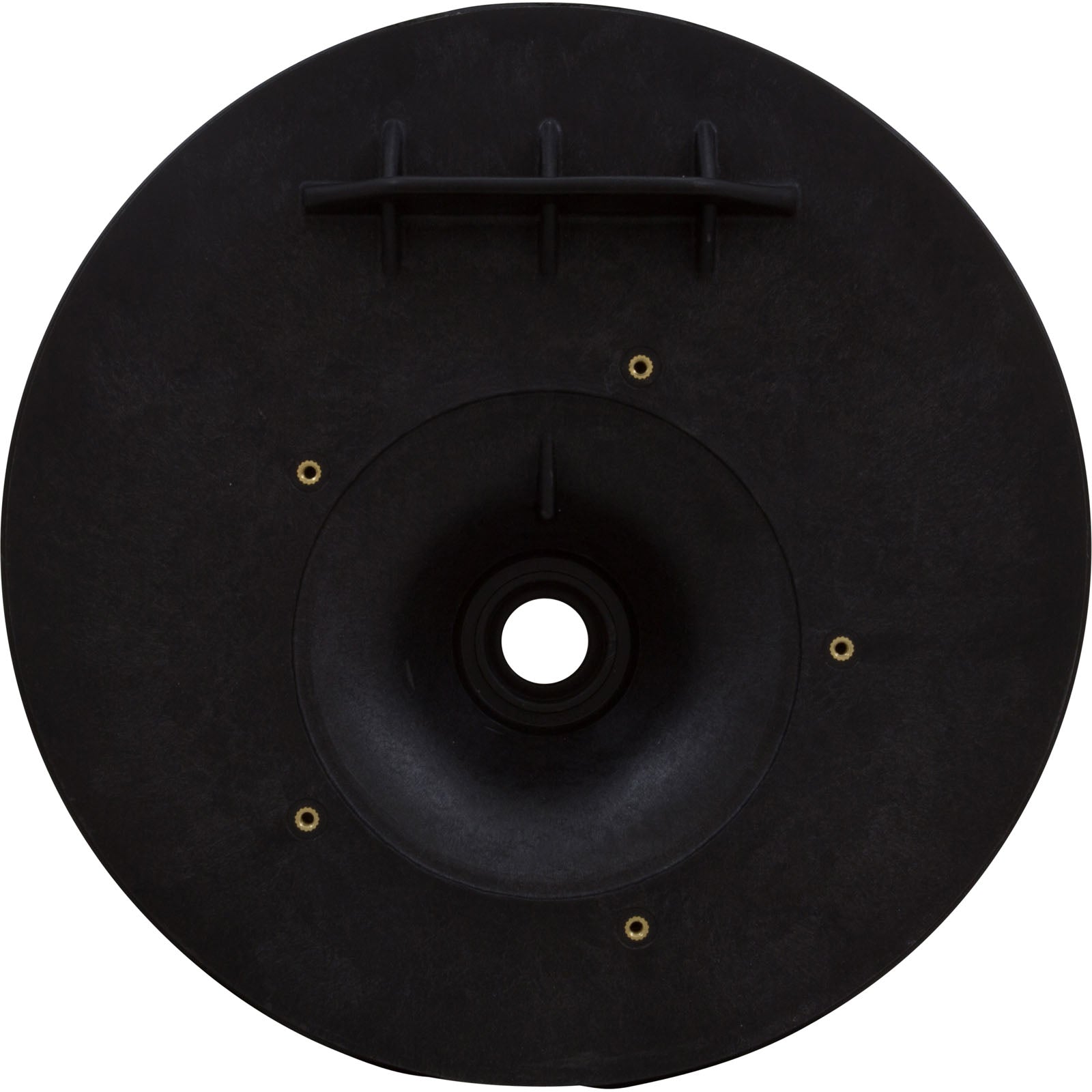

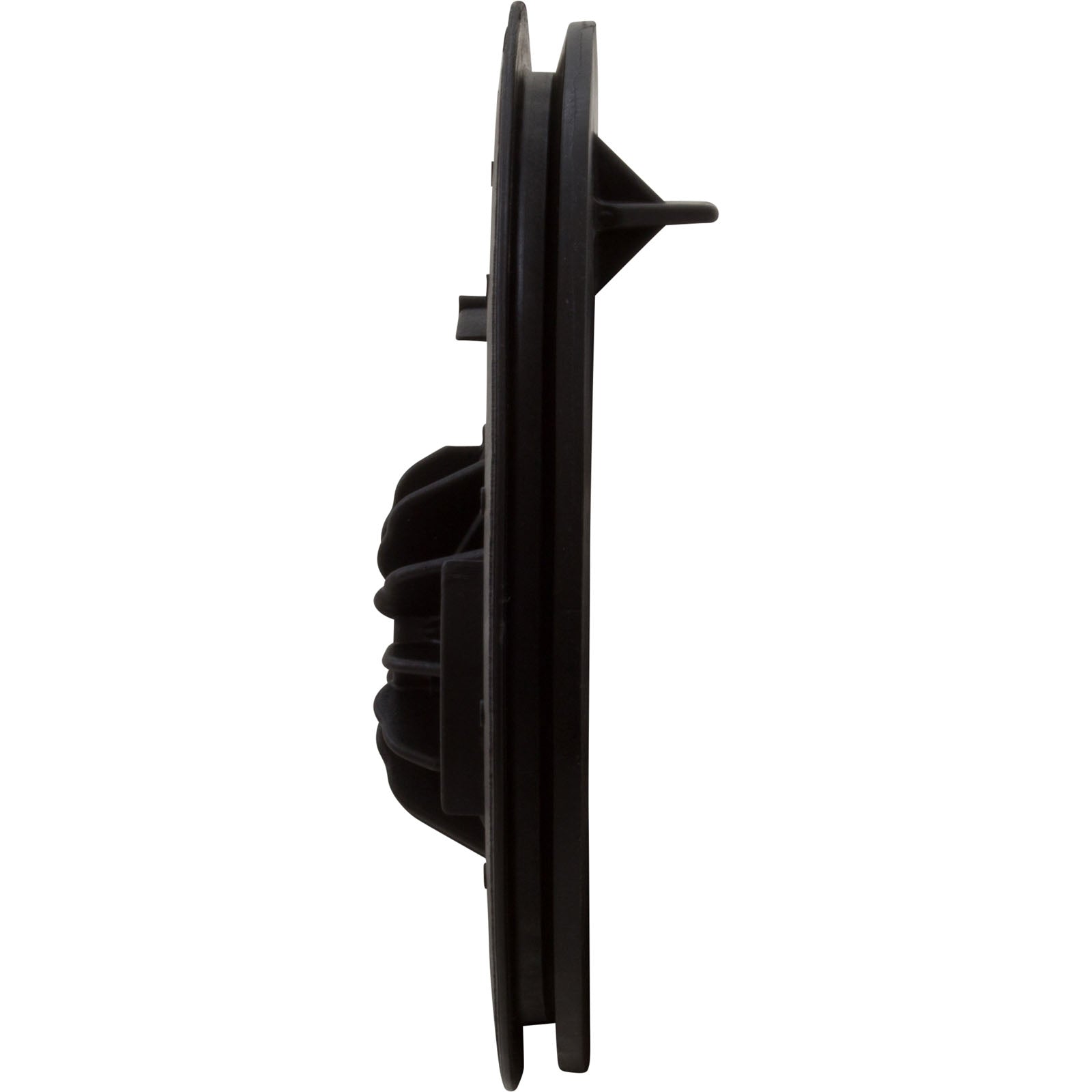

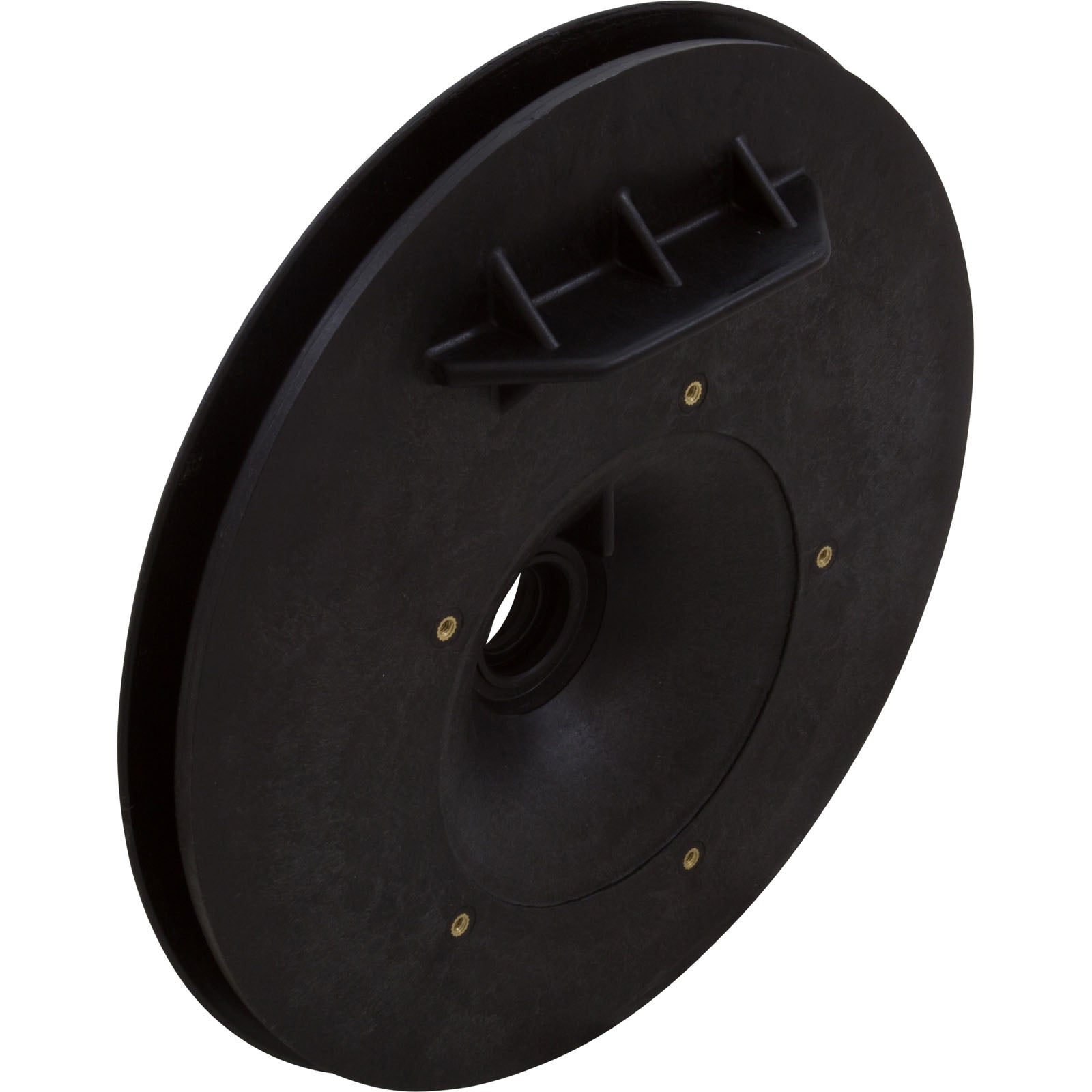

Pentair C103-193PZ Seal Plate Assembly

Product Description

The Pentair C103-193PZ is a seal plate assembly for Sta-Rite Max-E-Glas and Dura-Glas I pool pumps. It connects the pump volute to the motor securely. The assembly is made from plastic and features a square flange for easy motor attachment.

• Compatible with Sta-Rite Max-E-Glas and Dura-Glas I pump models.
• Features a square flange for secure motor mounting.
• Utilizes a 4-screw configuration for volute attachment.

Product Highlights

This seal plate is essential for mounting between the pump and motor, ensuring proper function and efficiency for your pool system.

Product Information

Standard Information

• Manufacturer: Sta-Rite/Pentair
• Model: Dura-Glas, Max-E-Glas

Technical Specifications

• Material Type: Plastic
• Volute to Seal Plate Mounting Type: 4 Screws
• Volute to Seal Plate Hole Spacing: 3-9/16 inches
• Seal Plate to Motor Mounting Type: Square Flange
• Seal Plate to Motor Hole Spacing: 5 inches
• Impeller Space Diameter: 5-1/8 inches
• Horsepower: 0.5hp-3.0hp
