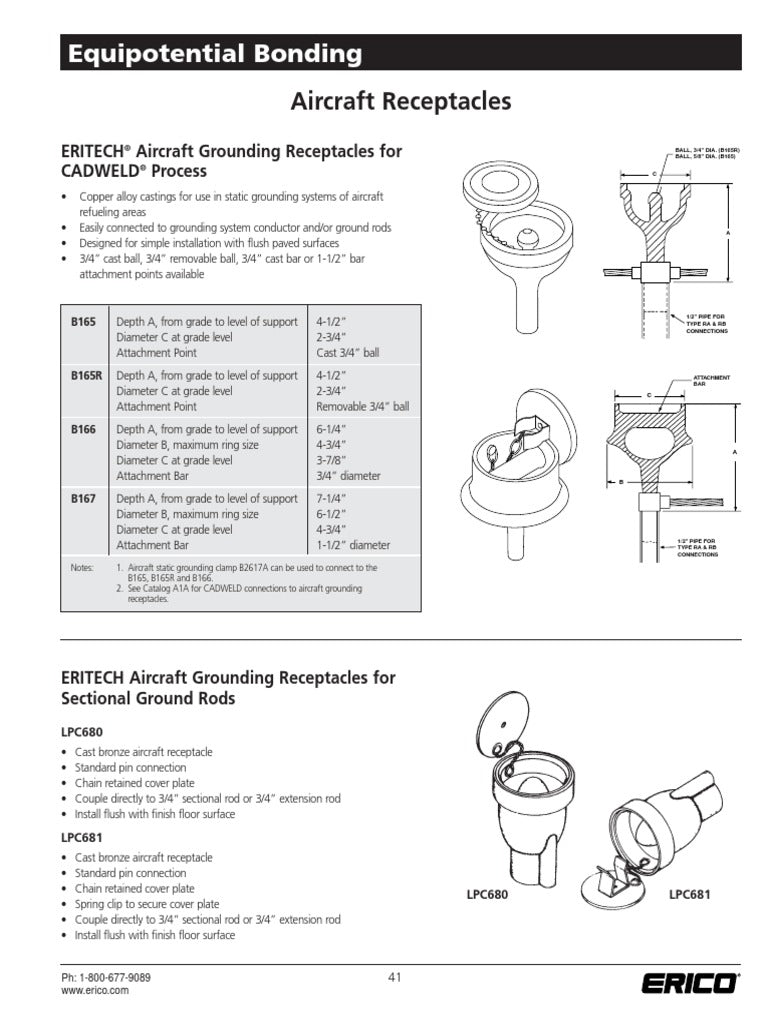

PENTAIR B165R Aircraft Grounding Receptacle

Product Description

The PENTAIR B165R is an aircraft grounding receptacle designed for static grounding systems in refueling areas. This component is made from phosphor bronze, providing a dependable connection to grounding system conductors and ground rods. It is straightforward to install in flush paved surfaces. The receptacle is also compatible with nVent ERICO Cadweld connections. Additionally, it includes a removable sixteen millimeter ball stud for quick attachment and detachment, allowing it to serve as a tie-down and static ground point.

• Designed for static grounding systems in refueling areas.
• Features a removable sixteen millimeter ball stud for easy use.
• Compatible with nVent ERICO Cadweld connections.

Product Highlights

The PENTAIR B165R ensures reliable grounding for safety in refueling applications.

Product Information

Standard Information

• Brand: PENTAIR
• MPN: B165R

Technical Specifications

• Material: Phosphor Bronze
• Diameter 1: 69.9 mm
• Diameter 2: 55.6 mm
• Depth: 114.3 mm
• Attachment Point: Removable 16 mm Ball Stud
• Pipe Size: 1/2
• Connection Type: RA, RB
