The Pentair 523735 IntelliChlor Plus & LT Salt Chlorine Generators provide serviceability and accuracy. This drop-in replacement for existing Pentair salt chlorine generators requires no additional plumbing and is compatible with existing IntelliChlor Power Center and Pentair automation systems. The modular design enables simple replacements for electronics and sensors.
Provides an alternative to buying, handling, storing, and carrying chlorine.
Drop-in replacement for existing Pentair salt chlorine generators, which requires no additional plumbing.
Compatible with existing IntelliChlor Power Center and Pentair automation systems.
Product Highlights
Provides an alternative to chlorine. Drop-in replacement. Compatible with existing systems.
Product Information
Standard Information
Brand: PENTAIR
Manufacturer Part Number: 523735
Technical Specifications
Item #
523735
Description
IntelliChlor Plus40 – 40K Cell
Chlorine Production
1.40 lbs per 24 hrs at 100%
Ideal salt level
3,400 ppm
Minimum operational salt level
3,000 ppm
Maximum salt level
4,500 ppm
Recommended Power Center
PC100 Power Center or Pentair Automation Systems
Drop-in replacement for
IntelliChlor IC40
Model
Pentair IntelliChlor Plus 40K Salt Cell
Type
Saltwater Chlorine Generator
Pool Capacity
Up to 40,000 gallons
Voltage
120/240V
Amperage
2.0A @ 120V / 1.0A @ 240V
Salt Level Range
3000-4000 ppm

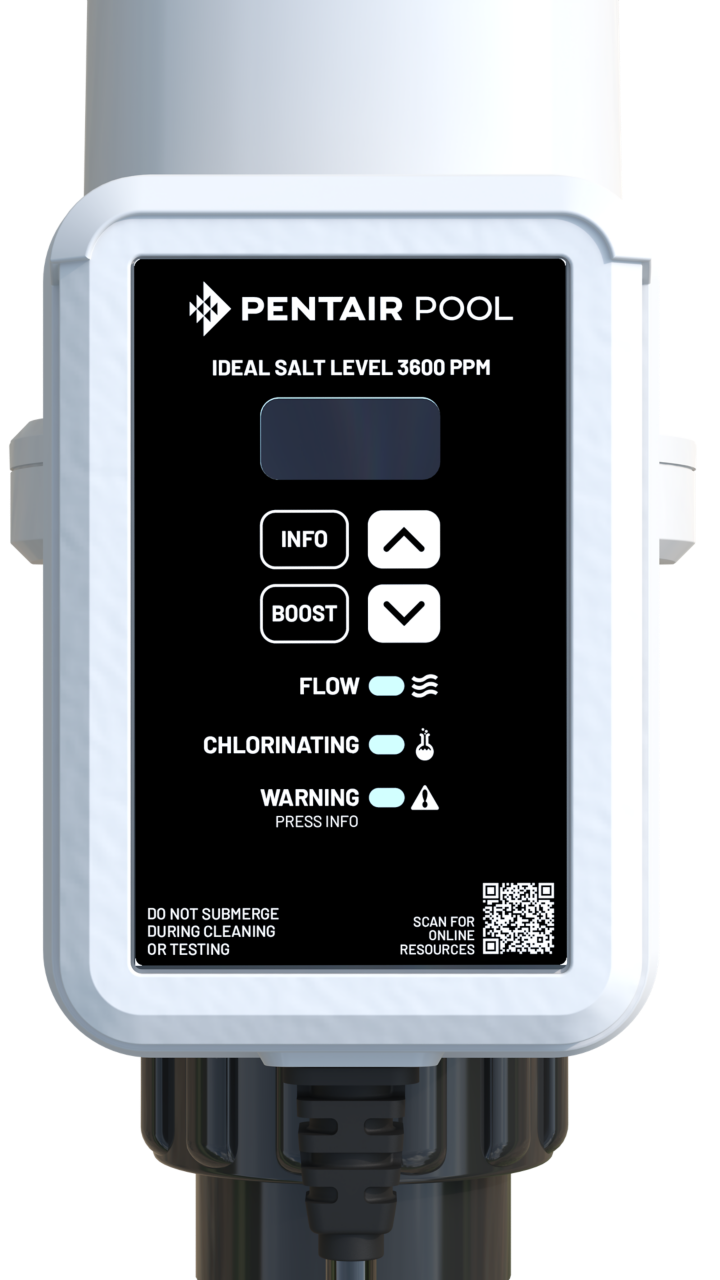

Display
LED indicators for easy monitoring of salt levels, chlorine output, and maintenance alerts
Compatible with
IntelliCenter, EasyTouch, and IntelliTouch automation systems
