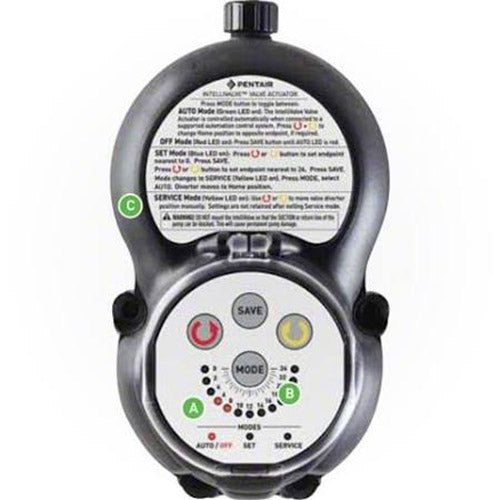

Pentair 521485 Intellivalve 13 LED 24V Sealed Valve Actuator 180 Degree Swing

Product Description

Pentair 521485 is a sealed valve actuator designed for precise water flow management. This actuator features intuitive push-button controls and a set of thirteen LED indicators to display valve positions. It allows for effective flow control for various water features in pools. It operates at twenty-four volts, making it compatible with standard automation systems, and is suitable for valve sizes of one point five, two, two point five, and three inches.

• Thirteen LED lights for clear indication of the valve position
• Weatherproof design for durability and reliability
• Adjustable increments for precise flow control

Product Highlights

This valve actuator is simple to install and use, providing efficient control over water features with a maintenance-free design.

Product Information

Standard Information

• Brand: Pentair
• MPN: 521485

Technical Specifications

• Power: 24 volts
• Max Amp Draw: 750mA
• Adjustable Range: 180 degrees
• Increment Adjustment: 3.75 degrees
• Suitable Valve Sizes: 1.5 inches, 2 inches, 2.5 inches, 3 inches
