Pentair 474058 Tube Sheet Coil Assembly Kit

Product Description

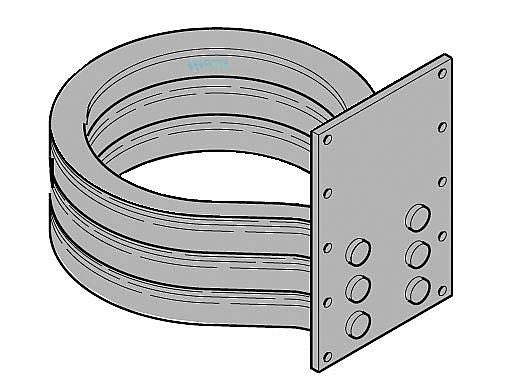

The Pentair Tube Sheet Coil Assembly Kit with MPN 474058 is designed for MasterTemp and Sta-Rite Max-E-Therm heaters. This kit is essential for maintaining the efficiency of heaters with 175K BTU and 200K BTU output. It includes all necessary components for installation and repair.

• Fits heat exchangers with coiled copper tubes
• Includes high-temperature RTV silicone and an O-ring kit
• Compatible with models built after January 12, 2009

Product Highlights

The assembly kit contributes to reliable performance and extended service life for your heating system.

Product Information

Standard Information

• Brand: Pentair
• MPN: 474058

Technical Specifications

• Plate dimensions: 5.5 inches wide x 8.5 inches tall
• Overall width: approximately 13 inches
• Overall length: approximately 15 inches
• Included components: Tube of high-temperature RTV silicone, O-ring kit (set of 12)
• Copper tubes: 3 coiled tubes for heat transfer
• Compatible models: MasterTemp and Sta-Rite Max-E-Therm heaters
