Pentair 357070S 10HP Motor Package EQ Series 3-Phase 208-230/460V Replacement Pentair EQK1000

Product Description

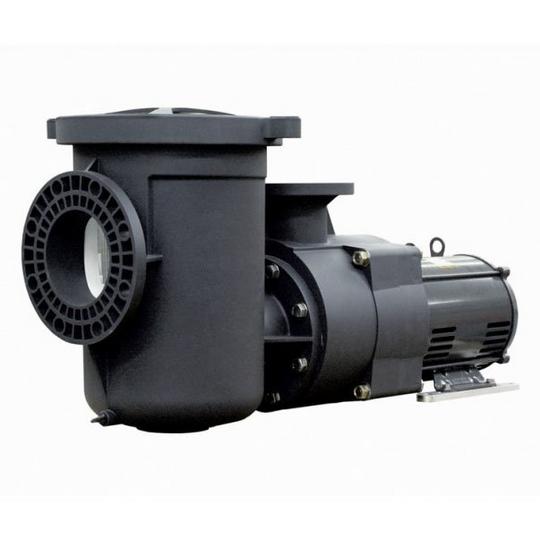

The Pentair 357070S is a robust 10HP three-phase electric motor package designed for the Pentair EQ Series EQK1000 pool pump. This high-efficiency motor operates at 208-230/460V and 60Hz, consuming 27-26.2/13.1 amps respectively, and is NEMA rated for demanding pool applications.

• Premium efficient, full service factor design
• Long insulation and bearing life for reduced heat and vibration
• Durable construction with stainless steel components

Highlights

Featuring class F insulation, a stainless steel shaft extension, and permanently lubricated ball bearings, this Pentair pump motor delivers reliable performance. The special JMZ mounting pattern and NEMA rating ensure compatibility, while the NSF listing guarantees safety for pool equipment.

Information

Standard

• Brand: Pentair
• Model: 357070S
• Compatibility: Pentair EQK1000 pump

Specifications

• Motor Power: 10HP
• Phase: 3-Phase
• Voltage: 208-230/460V
• Frequency: 60Hz
• Amperage: 27-26.2/13.1A
• Mounting: Special JMZ pattern
• Insulation Class: F
• Bearings: Permanently lubricated ball
• Shaft: 300 series stainless steel
• Certifications: NEMA rated, NSF listed
