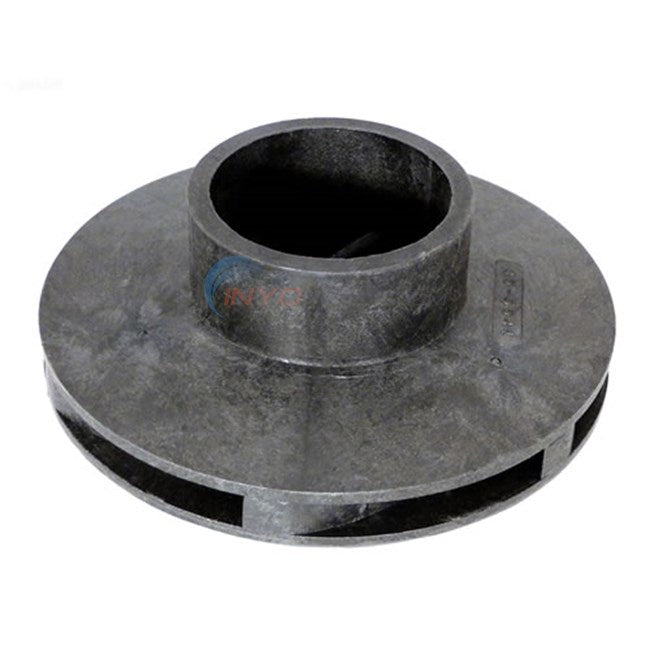

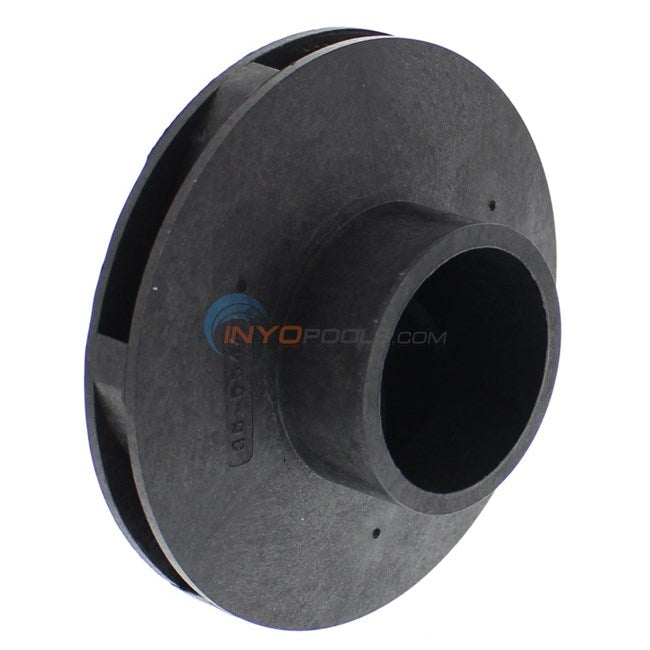

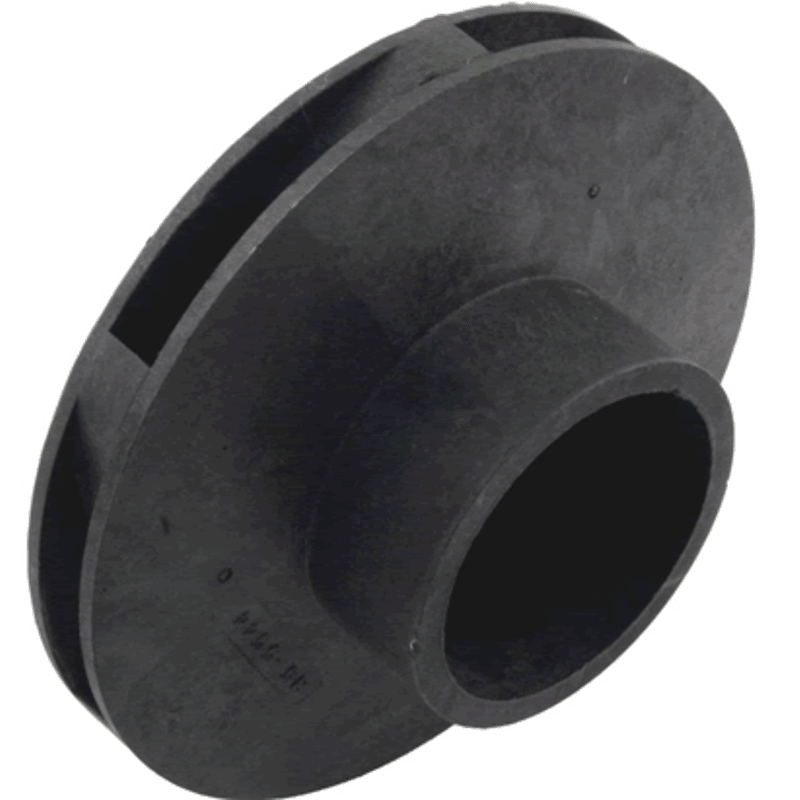

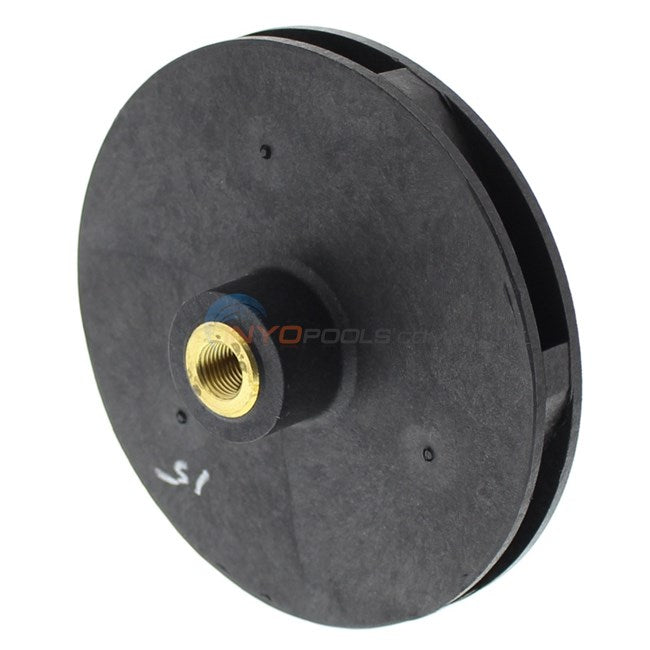

Pentair 355544Z Impeller Assembly

Product Description

The Pentair 355544Z is an impeller assembly designed for use with Challenger CHII-N1 and Waterfall pump models. This impeller is compatible with Model AF-75 and AFP-75 Waterfall specialty pumps, as well as 3F Challenger high-pressure inground pumps. The closed-face design effectively enhances pump efficiency.

• Rated for 3.0 full HP applications
• Outer diameter of five and one-eighth inches
• Features a vane width of three-eighths inches

Product Highlights

The Pentair 355544Z impeller assembly supports optimal operation in various pump models, ensuring reliability and durability.

Product Information

Standard Information

• Brand: Pentair
• Product Name: Impeller - 3HP - High Pressure

Technical Specifications

• HP: 3.0 Full HP
• Pump Models: Challenger CHII-N1, Waterfall
• Weight: 0.46 pound
• Shipping Dimensions: 5.5 x 5.5 x 2.5 inches
• Compatible With: Model AF-75, AFP-75 Waterfall Specialty Pump

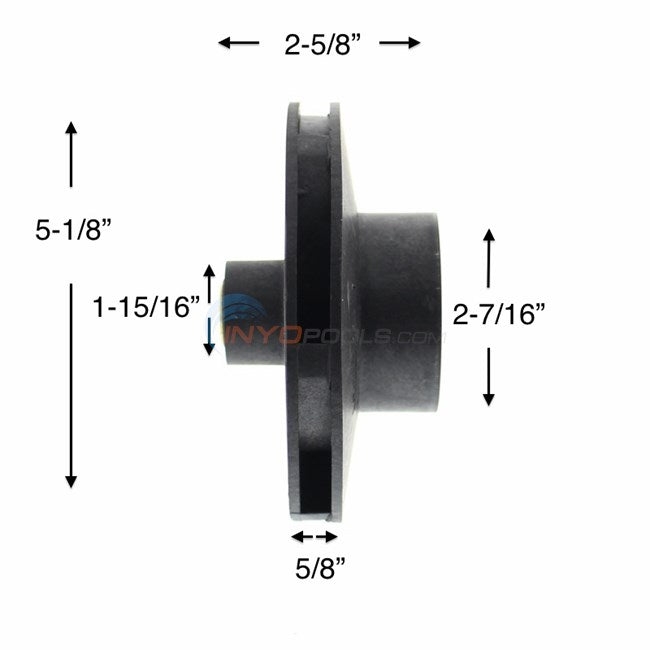

• Impeller Diameter (OD): 5-1/8 inches
• Vane Width (ID): 3/8 inches
• Eye Diameter (OD): 2-7/16 inches
• Eye Length: 15/16 inches
• Impeller Width (OD): 5/8 inches
• Seal Seat Depth: 3/4 inches
• Seal Seat Diameter (OD): 1-5/16 inches
