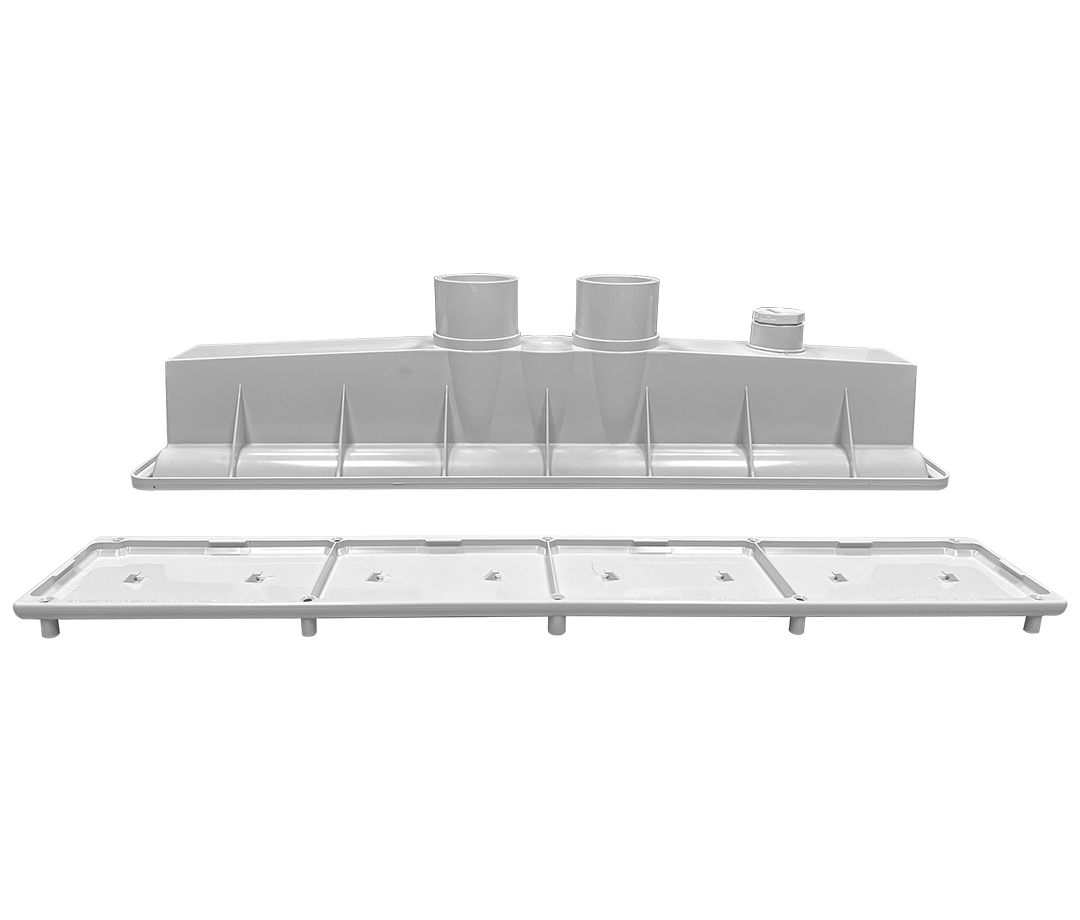

Pentair 289101 in-floor AVSC dual suction pebble top channel drain accepting 2.5 inches and 3 inches pipe

Product Description

The Pentair 289101 In-Floor AVSC Dual Suction Pebble Top Channel Drain is an unblockable, anti-vortex drain designed for pool circulation and debris removal. This drain is engineered to meet ANSI/APSP 7 and VGB safety standards, providing dual levels of entrapment protection. Its wide aperture efficiently removes heavy debris, while the dual-inlet design allows for two pumps, eliminating the need for additional suction points. It fits flush to the floor, ensuring an efficient and unobtrusive clean for pools, spas, and water features.

• Unblockable design for safety, meeting ANSI/APSP 7 Standard.
• Dual-inlet design allows for two pumps, eliminating additional suction points.
• Wide aperture for efficient cleaning and heavy debris removal.

Product Highlights

This AVSC drain offers superior swimmer protection and efficient debris removal for in-floor pool cleaning systems.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 289101
• Country of Origin: United States

Technical Specifications

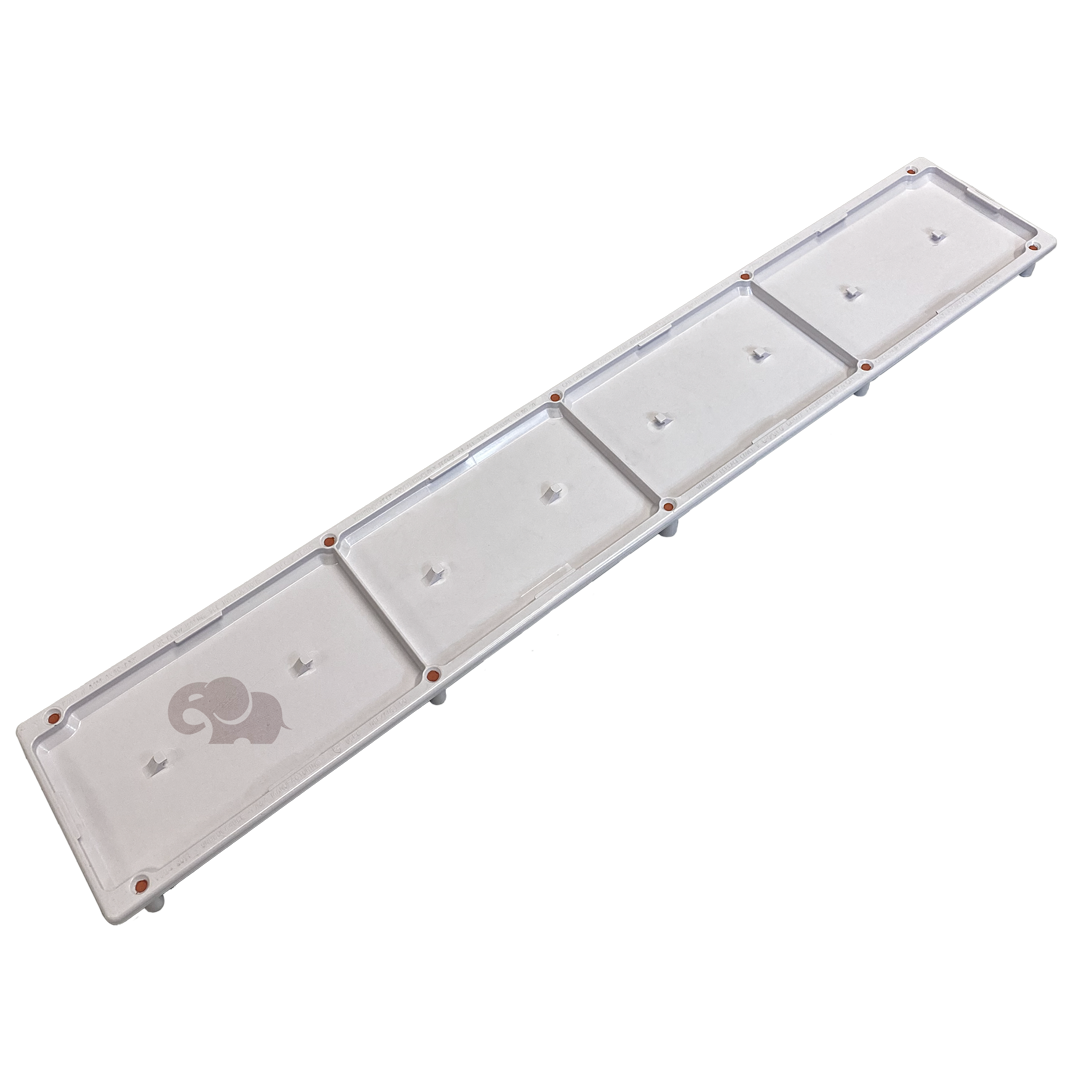

• Included Components: Drain Cover (Pebble Top), Baffle, Pressure Plug, Hydrostatic Plug, Hydrostatic Relief Valve Connection, Single Suction Drain Sump, 10 Torx Screws

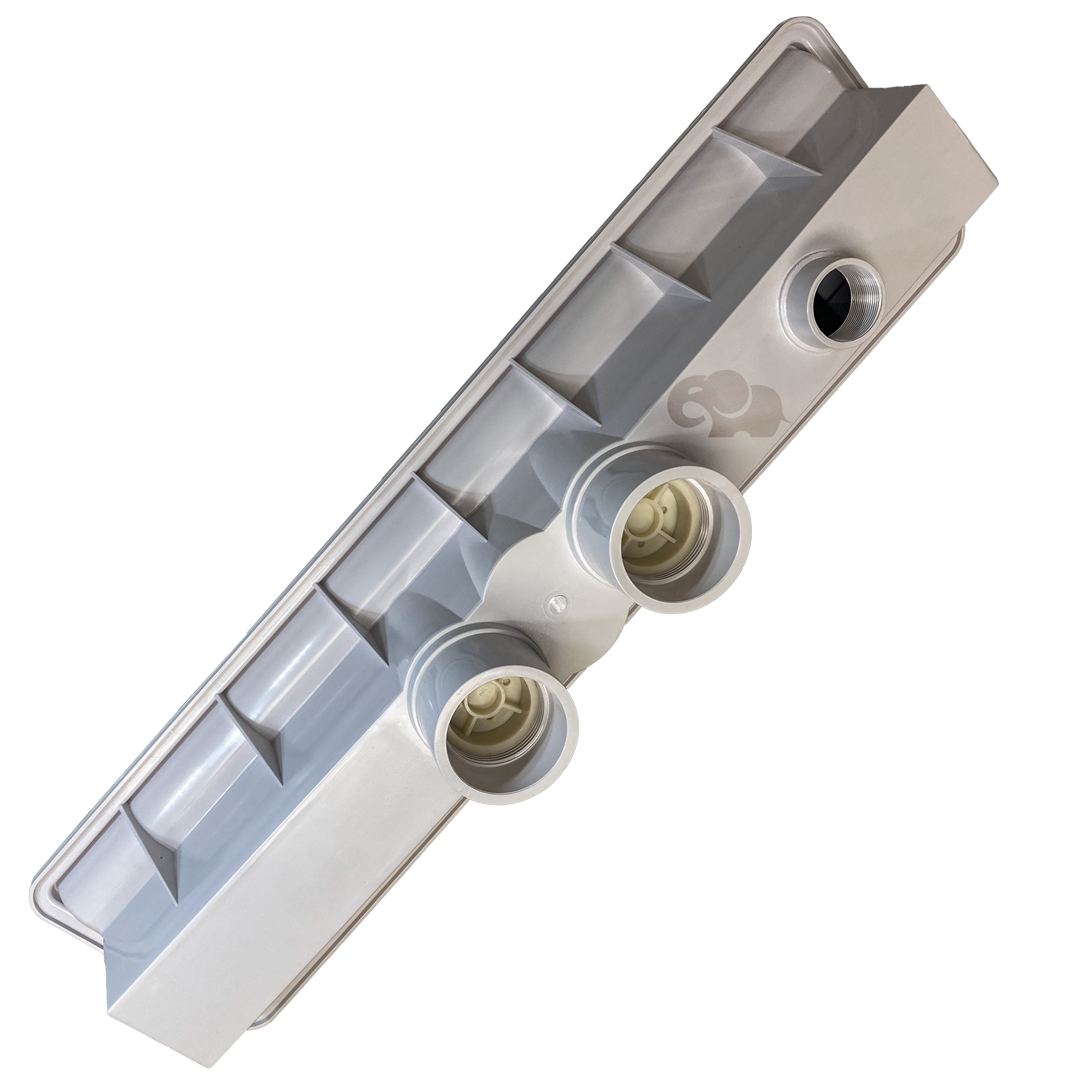

• Pipe Connection: Dual suction channel drain accepting both 2.5" and 3" pipe
• Body Material: UV-resistant engineered plastic
• Installation Compatibility: Gunite/shotcrete pools (not vinyl)
• Flow Rating: High-flow
