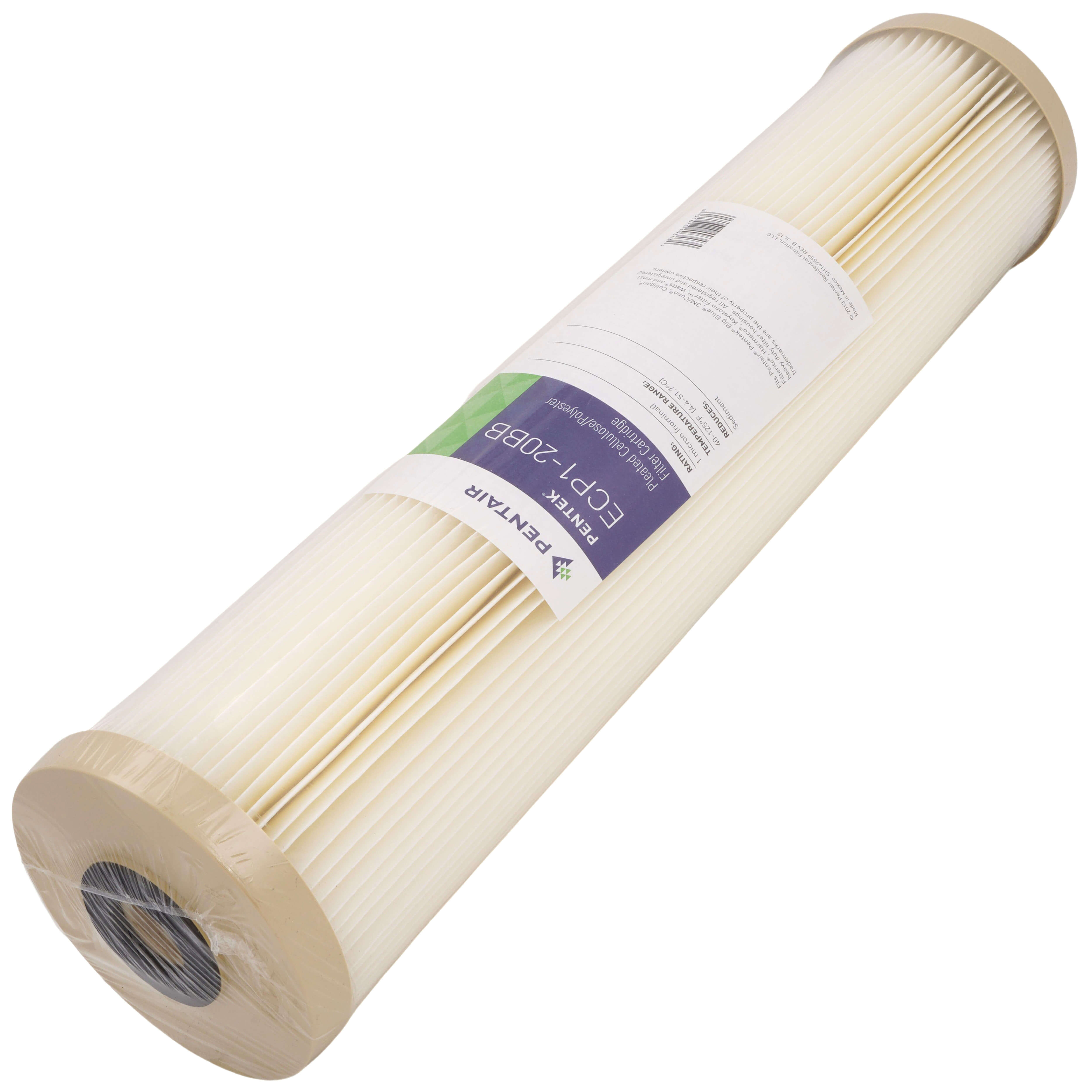

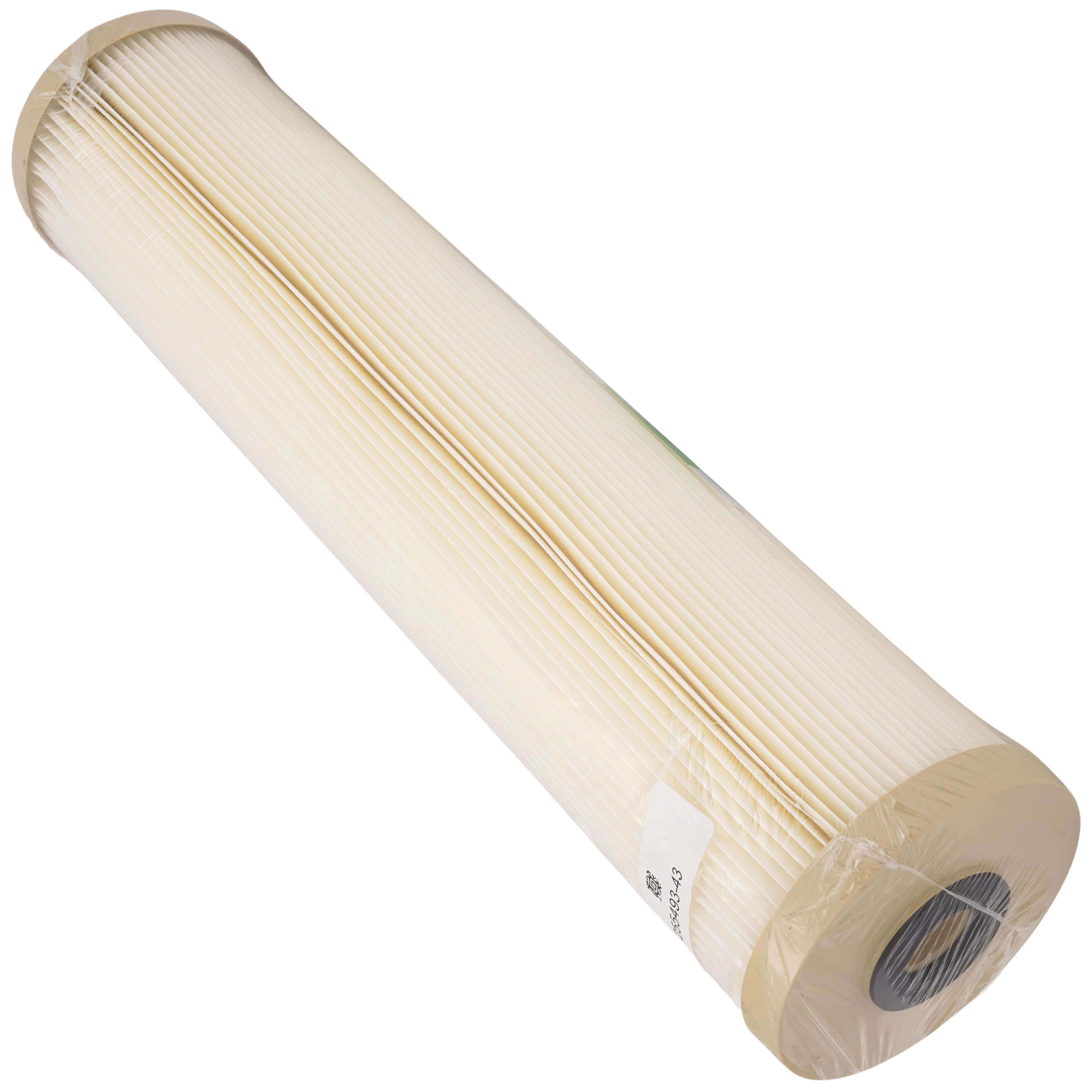

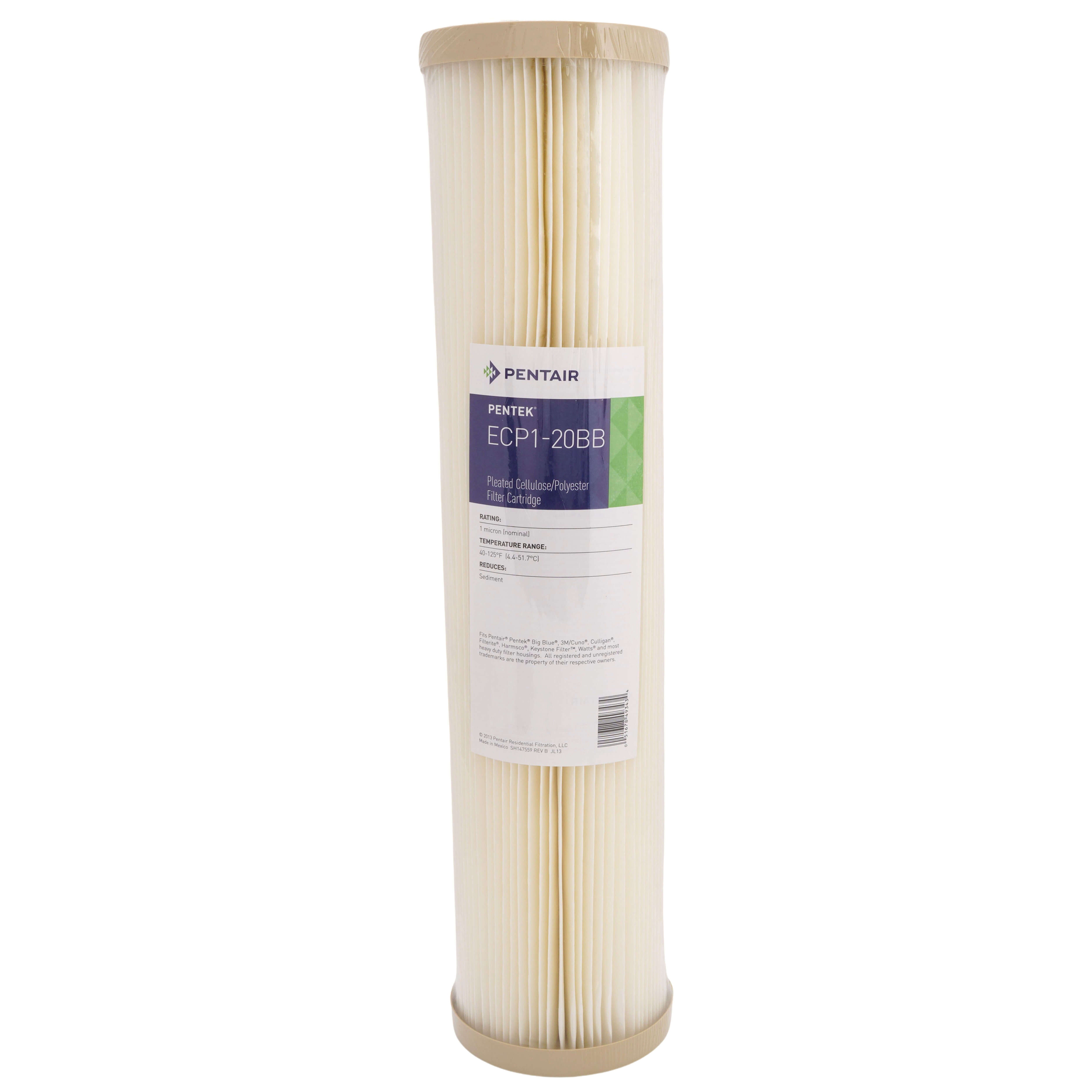

Pentair 255493-43 Ecp1-20bb, Big Blue Pleated Cellulose Polyester Sediment Filter Cartridge (1 Micron)

Product Description

The PENTAIR 255493-43 Ecp1-20bb is a Big Blue pleated cellulose polyester sediment filter cartridge with a 1-micron rating. It features a special formulation of resin-impregnated cellulose and polyester fibers, providing higher wet strength than regular cellulose cartridges. The cartridge is designed for point-of-entry applications with a 20 GPM flow rate and a maximum water temperature of 125°F.

• Replaces Pentek CP and HFCP Series Cartridges
• Provides higher wet strength than regular cellulose cartridges
• Minimal unloading and media migration

Product Highlights

This sediment filter cartridge has a 1-micron rating, a 20" height, and a 4-1/2" diameter, effectively reducing sediment in point-of-entry applications.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 255493-43

Technical Specifications

• Type: Sediment
• Model: Big Blue
• Height: 20"
• Material: Polyester
• Application: Point of Entry
• Filter Type: Pleated Cellulose
• Product Type: Filter Cartridge
• Micron Rating: 1
• Flow Rate (GPM): 20
• Diameter (Inches): 4-1/2"
• Max Water Temp (°F): 125°F
• Reduction Claim: Sediment
• Style: Double Open End
• Gasket Material: Polypropylene
• Brand: Pentair
• Product Line: ECP Series
