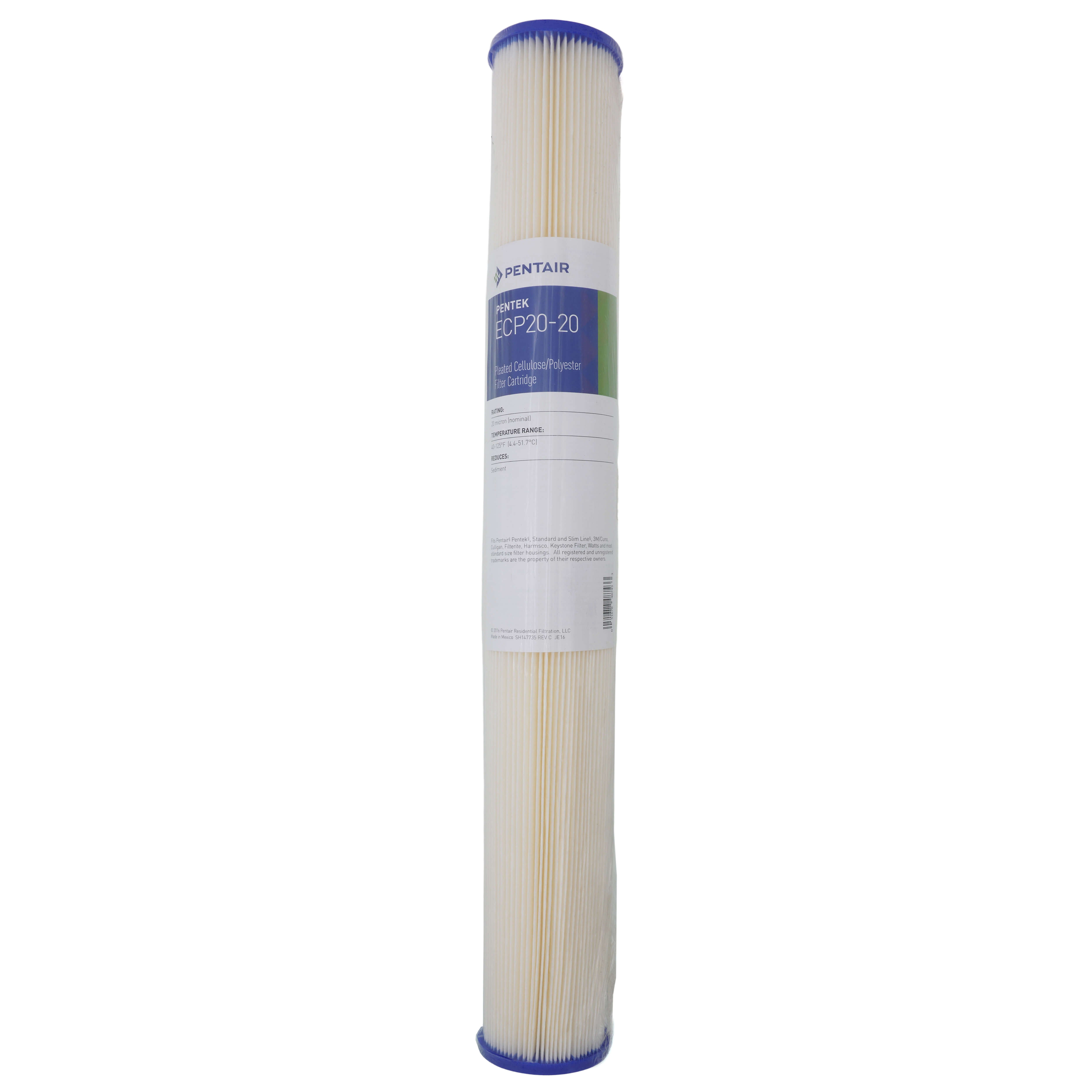

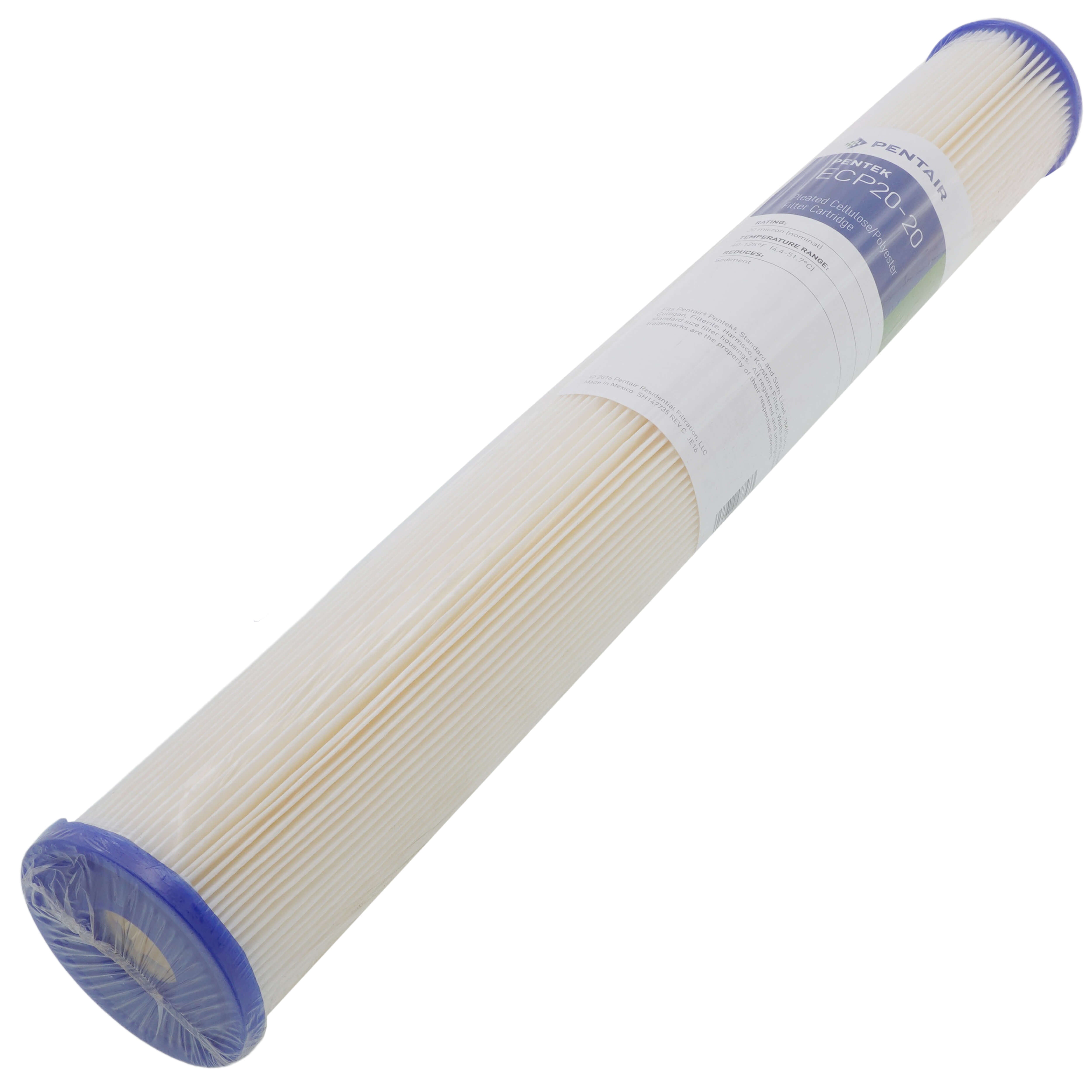

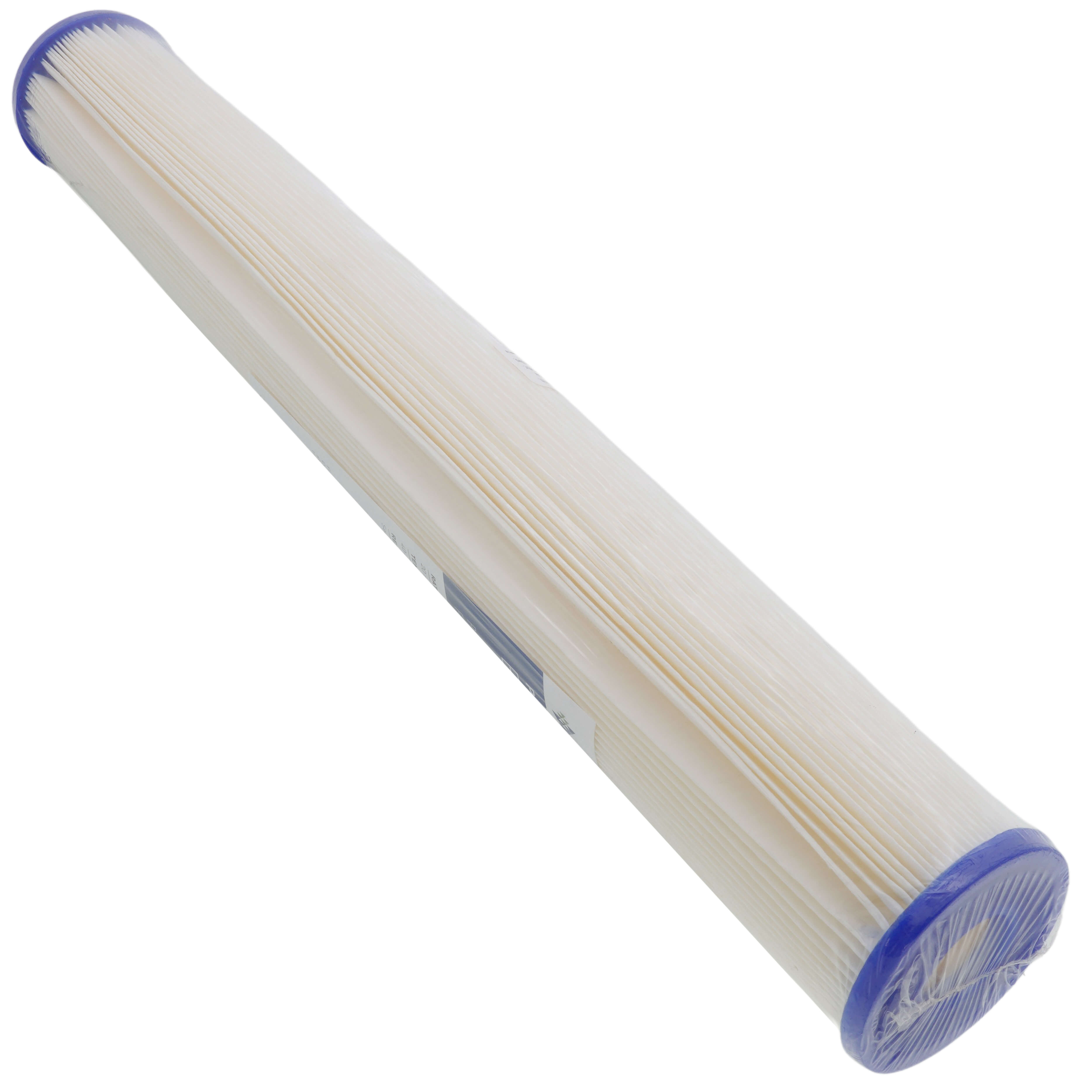

Pentair 255487-43 ECP20-20 Pleated Cellulose Polyester Sediment Filter Cartridge (20 Microns)

Product Description

The PENTAIR 255487-43 ECP20-20 pleated cellulose polyester filter is designed for high flow rates and maximum dirt-holding capacity. Constructed from resin-impregnated cellulose and polyester fibers, it provides higher wet strength than regular cellulose cartridges. The media is pleated around a polypropylene core for added strength.

• Replaces Pentek CP and HFCP Series Cartridges
• Special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges

Product Highlights

This filter provides high flow rates, high dirt-holding capacity, and extremely low pressure drop.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 255487-43

Technical Specifications

• Type: Sediment
• Height: 20"
• Material: Polyester
• Application: Point of Entry
• Filter Type: Pleated Cellulose
• Product Type: Filter Cartridge
• Micron Rating: 20 Micron
• Flow Rate (GPM): 10
• Diameter (Inches): 2-5/8"
• Max Water Temp (0F): 1250F
• Brand: Pentair / Pentek
• MPN: 255487-43
• Series: ECP
• Model: ECP20-20
• Min. Temp (0F): 40
• Specifications: Cellulose Polyester (Filter Media); Vinyl Plastisol (End Caps); Polypropylene (Big Blue End Caps); Polypropylene (Core)
