Pentair 166219 Big Clear Heavy Duty Series 10 inches Filter Housing

Product Description

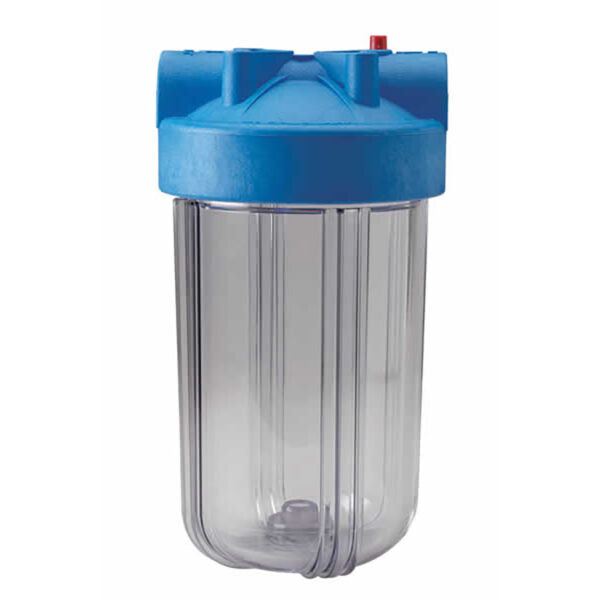

The Pentair 166219 Big Clear Filter Housings offer versatility for large-capacity filtration needs. The 10" heavy-duty housing has a clear sump and blue cap, and features a pressure relief/bleed button. It has a 1" NPT threaded connection and accepts up to 4-1/2" diameter cartridges.

• 10" heavy-duty housing with clear sump and blue cap
• Features a pressure relief/bleed button
• 1" NPT threaded connection

Product Highlights

This filter housing is suitable for high-flow and heavy-sediment applications. The extra-large housing allows for greater cartridge capacity.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 166219
• Country of Origin: United States of America

Technical Specifications

• Temperature (Min): 40 °F
• Temperature (Max): 100 °F
• Pressure (Min): 40 psi
• Pressure (Max): 100 psi
• Inlet Size: 1"
• Inlet Connection Type: NPT
• Weight: 7 lbs
• Housing Size: 10" x 4.5" Full Flow
• Port Size: 1" Ports
• Dimensions: 13 1/2 x 7 1/8
• Takes: 4 1/2" Filter Cartridges
• inlet/outlet: 1 NPT
• With: Pressure Release
• Fitting Size: 1"
• Integral Bracket: N
• Pressure Relief: Y
• Style: Big Clear
• Sump Size: 10"
• Item Weight: 4.75 lbs per EA
• Material: Lexan
• Pipe Size: 1" NPT
• Gasket Material: Buna
