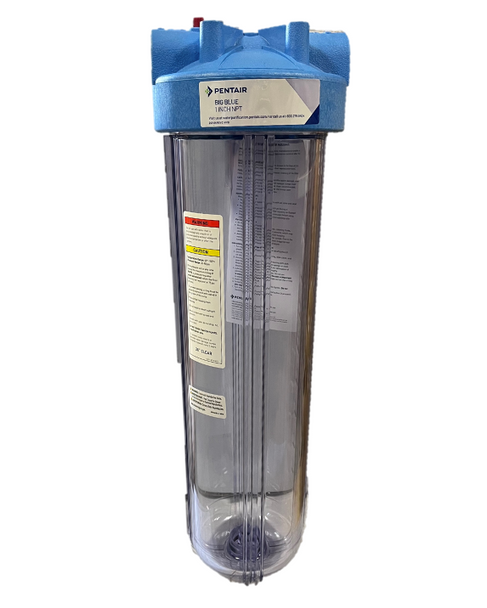

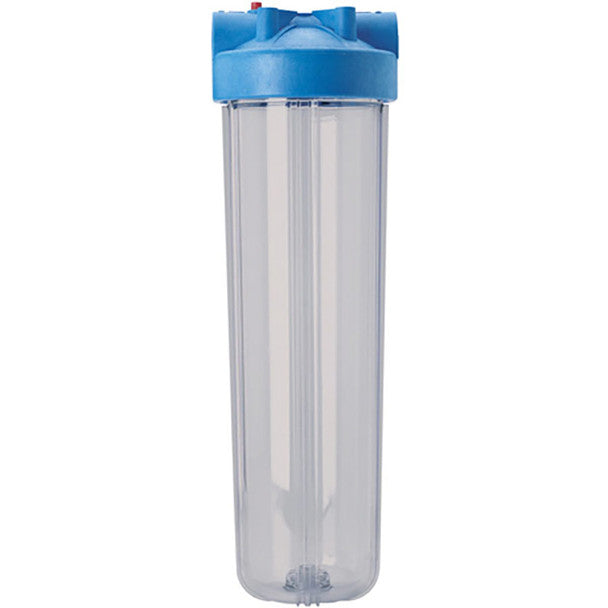

Pentair 166201 Pentek Filter Housing w/ 1 inches Ports & Pressure Release (Big Clear)

Product Description

The Big Clear 166201 20” Pentek Filter Housing with 1” ports and pressure release accepts 20” x 4.5” cartridges. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene.

• 1” FNPT Connections
• Accepts 20” X 4.5” Cartridges
• Large Capacity Housing Suitable for High Flow Applications

Product Highlights

This filter housing offers the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 166201
• Country of Origin: Made in the United States of America

Technical Specifications

• Housing Size: 20" x 4.5" Full Flow
• Port Size: 1" Ports
• Temperature (Min): 40 °F
• Temperature (Max): 100 °F
• Pressure (Min): 40 psi
• Pressure (Max): 100 psi
• Inlet Size: 1"
• Inlet Connection Type: NPT
• Connection Size: 1" NPT
