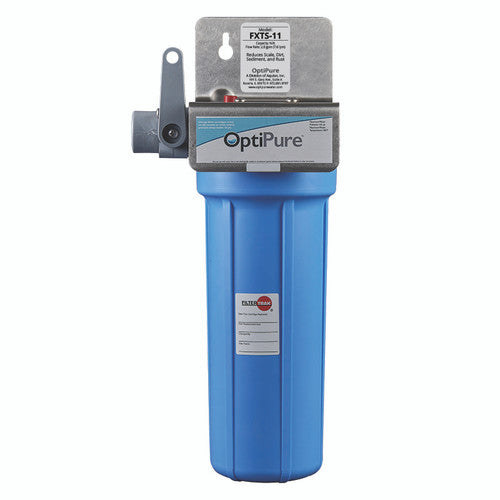

Pentair 160-50003 OptiPure FXTS-11 Single Filter System

Product Description

The Pentair 160-50003 OptiPure FXTS-11 Single Filter System is designed to enhance water filtration. It features a drop-in ten cartridge that filters sediment down to five microns. The IsoNet technology minimizes scale and corrosion in equipment. This system includes a full-flow inlet shut-off valve and a mounting bracket, making it easy to install. The cartridge can be replaced without changing the filter sump. It is effective as a point-of-use filter, keeping chlorine levels stable to prevent microbial growth in ice machines. The service flow rate is two point five gallons per minute.

• Reduces maintenance frequency and extends equipment life.
• Gradient-density sediment filtration protects against dirt, rust, and debris down to five microns.
• Includes mounting bracket and full-flow inlet shut-off valve for simple installation.

Product Highlights

This filter system offers effective sediment reduction and enhanced equipment protection.

Product Information

Standard Information

• Brand: Pentair
• Model: 160-50003

Technical Specifications

• Dimensions: 14.5 inches high x 6.5 inches wide x 5.1 inches deep
• Connection - Inlet & Outlet: 1/2 FNPT
• Operating Pressure Range: 10 - 125 psi
• Inlet Water Temperature Range: 35°F - 100°F
• Shipping Weight: 6 lbs
• Service Flow Rate: 2.5 gpm
• Pore Size for Sediment Reduction: 5 microns
• Scale & Corrosion Inhibitor: IsoNet (70 grams)
• Replacement Cartridge: 252-10810 - PTS-10 (1 required)
