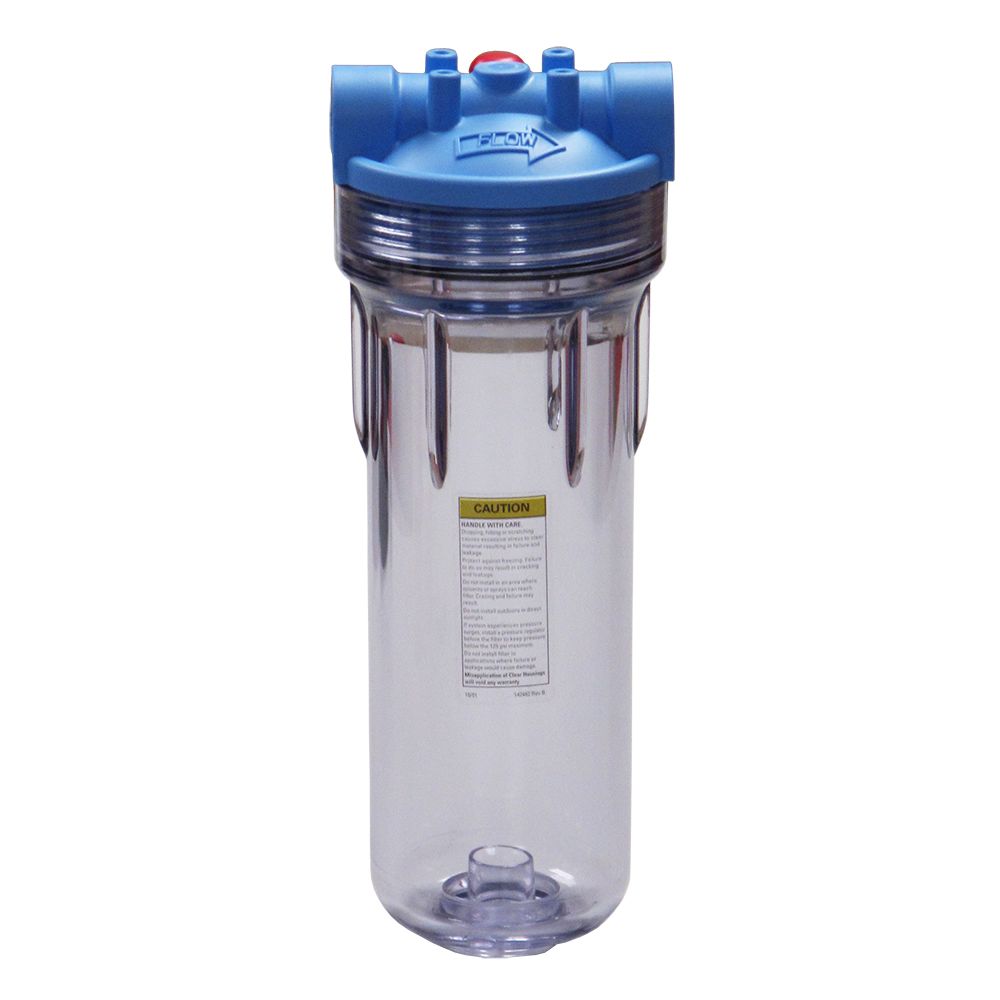

Pentair 158623 3G Slim Line Filter Housing 1/2 inches NPT

Product Description

The Pentair 158623 3G Slim Line Filter Housing is designed for low-flow filtration applications. Its slim design and high chemical compatibility make it ideal for challenging applications. It features NPT threaded connections offered in 1/4", 3/8", and 1/2". It is suitable for under-sink filter applications.

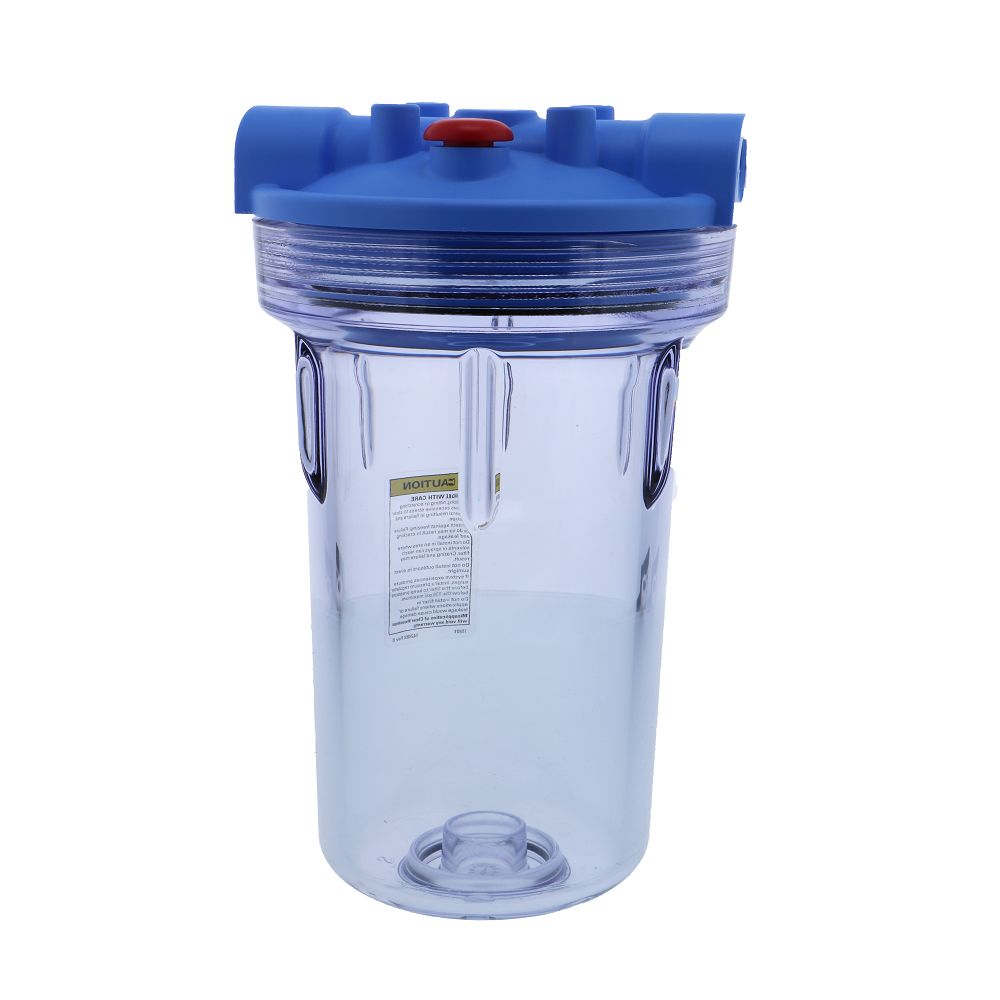

• 10" housings available with clear or opaque sumps
• Slim design reduces space required for installation while still utilizing standard 2.5"x10" cartridges
• John Guest and NPT threaded connections offered in 1/4", 3/8", and 1/2"

Product Highlights

The Pentair 158623 is perfect for low-flow filtration with a slim design and high chemical compatibility.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 158623
• Country of Origin: United States

Technical Specifications

• Brand: Pentair 3G
• Max Pressure psi: 125
• Max Pressure bar: 8.6
• Max Temperature °C: 52
• Max Temperature °F: 125
• Flow gpm: 5
• Material: Styrene Acrylonitrile
• O-Ring: #237 Buna-N
• Inlet inch: 1/2 NPT
• Outlet inch: 1/2 NPT
• Cartridge length inch: 11.75
• Diameter inch: Ø4.75
• Type: Water Filter
• Item Height: 10 in
• Number in Pack: 1
• Model: 158623
• Compatible Model: Not Available
• Item Depth: 10 in
• Item Width: 10 in
• Country of Origin: United States
• Temperature (Min): 40 °F
• Pressure (Min): 40 psi
• Pressure (Max): 125 psi
• MPN: 158623
• Series: 3G Slim Line
• Size: 1/2"
• Connection: NPT
• PSI: 125 PSI
• Min. Temp (°F): 40
• Max Temp (°F): 125
• Case Qty: 12-Case
• Part Number: 158623
• Ports: 1/2" NPT
• Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap: Reinforced polypropylene
• Button Assembly: 300-Series stainless steel, EPDM, and polypropylene
• Temperature Rating: 40-125o F (4.4-51.7o C)
• Maximum Pressure: 125 psi (8.6 bar)
• Case Quantity: 12 Pieces (Pricing is per piece)
• Cap Color: Blue
• Housing Material: Styrene Acrylonitrile
• Inlet Connection: 1/2" FPT
• Mounting Options: Mounting Bosses
• Outlet Connection: 1/2" FPT
• Seal / O-Ring Material: Buna-N (Nitrile)
• Shipping Length: 14
• Shipping Width: 6
• Shipping Height: 6
