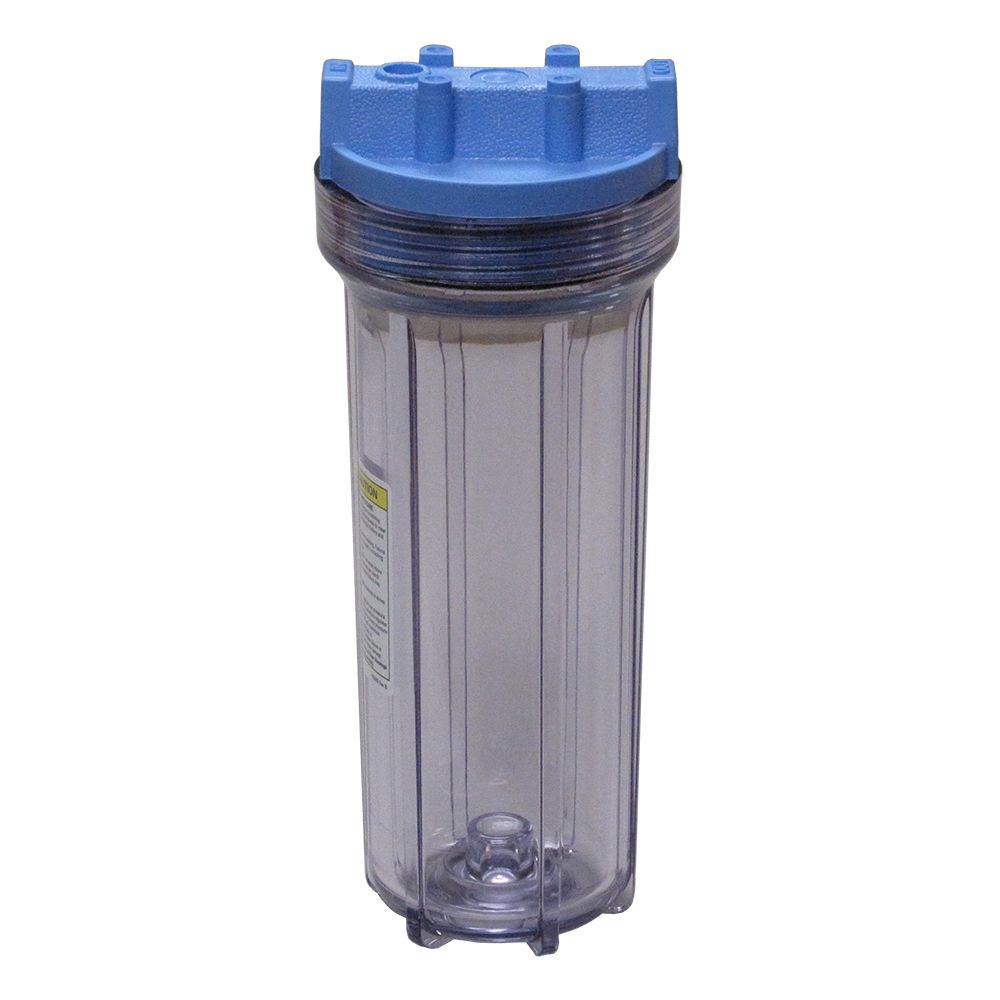

Pentair 158215 Slim Line 10 inch Housing

Product Description

The Pentair 158215 Slim Line 10 inch Housing without PR is made of SAN for a long-lasting grip on filter cartridges in the slim line system. It features a 1/2 inch inlet outlet and uses a Buna-N Oring. The housing has a clear bowl with a blue polypropylene reinforced head. Slim Line filter housings are an excellent choice for low-flow applications.

• Made of SAN for a long-lasting grip
• 1/2 inch inlet outlet
• Uses a Buna-N Oring

Product Highlights

The Pentair 158215 is ideal for residential, commercial, & industrial use and compatible with standard double open end cartridges.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 158215
• Country of Origin: China

Technical Specifications

• Inlet/Outlet Size: 1/2 inch
• Dimensions: 12 1/8" x 4 3/8"
• O-ring: Buna-N
• Pressure Release: Without
• Bowl Color: Clear
• Head Color: Blue Polypropylene Reinforced
• Max Temperature: 125 °F (51.7 °C)
• Maximum Pressure: 125 psi (8.62 bar)
• Inlet/Outlet Connection: 1/2” NPT
• Body Material: Polypropylene
• Cap Color: Blue
• Housing Material: Styrene Acrylonitrile
• Inlet Connection: 1/4" FPT
• Material Of Construction: Polypropylene
• Outlet Connection: 1/4" FPT
• Seal / O-Ring Material: Buna-N (Nitrile)
• Shipping Length: 14
• Shipping Width: 6
• Shipping Height: 6
• Ports: 1/2"NPT
• Maximum Dimensions: 12.13" x 4.63" (308 mm x 118 mm)
• Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap: Reinforced polypropylene
• Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
• Temperature Rating: 40-125°F (4.4-51.7°C)
• Case Quantity: 12 Pieces (Pricing is per piece)
