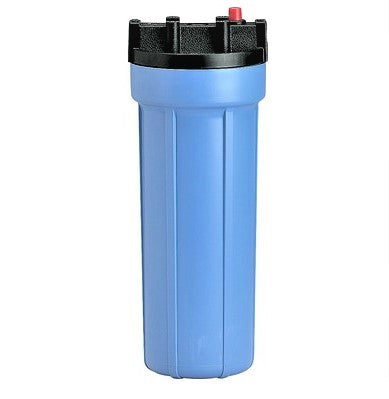

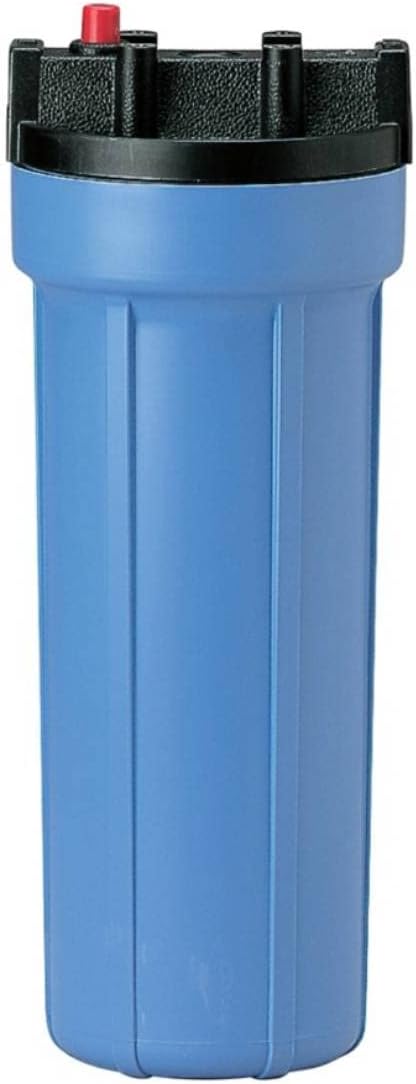

Pentair 158115 #10 Slim Line Filter Housing 1/4 inches NPT

Product Description

The PENTAIR 158115 is a traditional slim line filter housing with a 1/4" NPT connection. It features a pressure relief valve and is designed for use in low-flow applications, such as under-sink and countertop residential filtration, pre- and post-reverse osmosis filtration, and recreational vehicle filtration.

• Slim design reduces space required for installation without sacrificing capacity
• Available in 5", 10" and 20" lengths
• Optional pressure relief button on inlet side of cap

Product Highlights

The Pentair 158115 filter housing is ideal for undersink and countertop residential filtration, pre- and post-reverse osmosis filtration, recreational vehicle filtration, foodservice and humidifying systems.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 158115

Technical Specifications

• Brand: Pentair / Pentek
• MPN: 158115
• Series: Traditional Slim Line
• Size: 1/4"
• Connection: NPT
• PSI: 125 PSI
• Min. Temp (°F): 40
• Max Temp (°F): 125
• Case Qty: 12-Case
• Temperature (Min): 40 °F
• Temperature (Max): 125 °F
• Pressure (Min): 40 psi
• Pressure (Max): 125 psi
• Inlet Size: 1/4"
• Inlet Connection Type: NPT
• Connections: 1/4" FNPT
• Part Number: 158115
• Ports: 1/4"NPT
• Maximum Dimensions: 11.75" x 4.38" (298 mm x 111 mm)
• Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap: Reinforced polypropylene
• Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
• O-Ring: Buna-N
• Temperature Rating: 40-125°F (4.4-51.7°C)
• Maximum Pressure: 125 psi (8.6 bar)
• Case Quantity: 12 Pieces (Pricing is per piece)
• Model Number: 158115
• Brand Name: Pentek
• UPC: 051678581155
• Unit Count: 1 Count
• Number of Items: 1
• Manufacturer Part Number: 158115
• Manufacturer: Pentair
• Material Type: Polypropylene (PP)
• Item Weight: 1.72 Pounds
• External Testing Certification: ANSI, NSF
