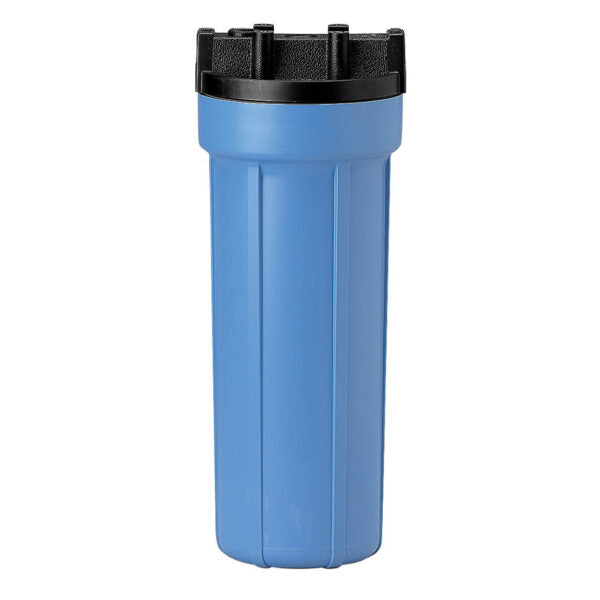

Pentair 158006 Slim Line Filter Housing 3/8 inches Ports

Product Description

The Pentair 158006 Slim Line filter housing with 3/8" ports accepts 10" x 2.5" cartridges. Slim Line filter housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns. It is molded from rugged reinforced polypropylene and offers outstanding chemical compatibility.

• Slim design reduces space required for installation without sacrificing capacity
• Available in 5", 10" and 20" lengths
• Optional pressure relief button on inlet side of cap

Product Highlights

The Pentair Slim Line filter housing is ideal for under-sink and countertop residential filtration, pre- and post-reverse osmosis filtration, recreational vehicle filtration, foodservice and humidifying systems.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 158006
• Country of Origin: United States of America

Technical Specifications

• Temperature (Min): 40 °F
• Temperature (Max): 125 °F
• Pressure (Min): 40 psi
• Pressure (Max): 125 psi
• Inlet Size: 3/8"
• Inlet Connection Type: NPT
• Color: Blue
• Connection Type: Threaded
• Gender: Female
• Length: 10 IN
• Material: SAN/POLYPRO
• Mfg: Pentair
• Pipe Size: 3/8 IN
• Threading: IPS
• Housing Size: 10" x 2.5" Standard
• Cartridge Size: 10"
• Port Size: 3/8" Ports
• Material Composition: Polypropylene (PP)
• Ports: 3/8"NPT
• Maximum Dimensions: 11.75" x 4.38" (298 mm x 111 mm)
• Housing: Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap: Reinforced polypropylene
• Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
• O-Ring: Buna-N
• Temperature Rating: 40-125°F (4.4-51.7°C)
• Maximum Pressure: 125 psi (8.6 bar)
• Inlet/Outlet: 3/8"
• Dimensions: 11 3/4" x 4 3/8"
• Pressure Release: Without
• Bowl Color: Blue Opaque
• Head Color: Black Polypropylene Reinforced
