Product Description

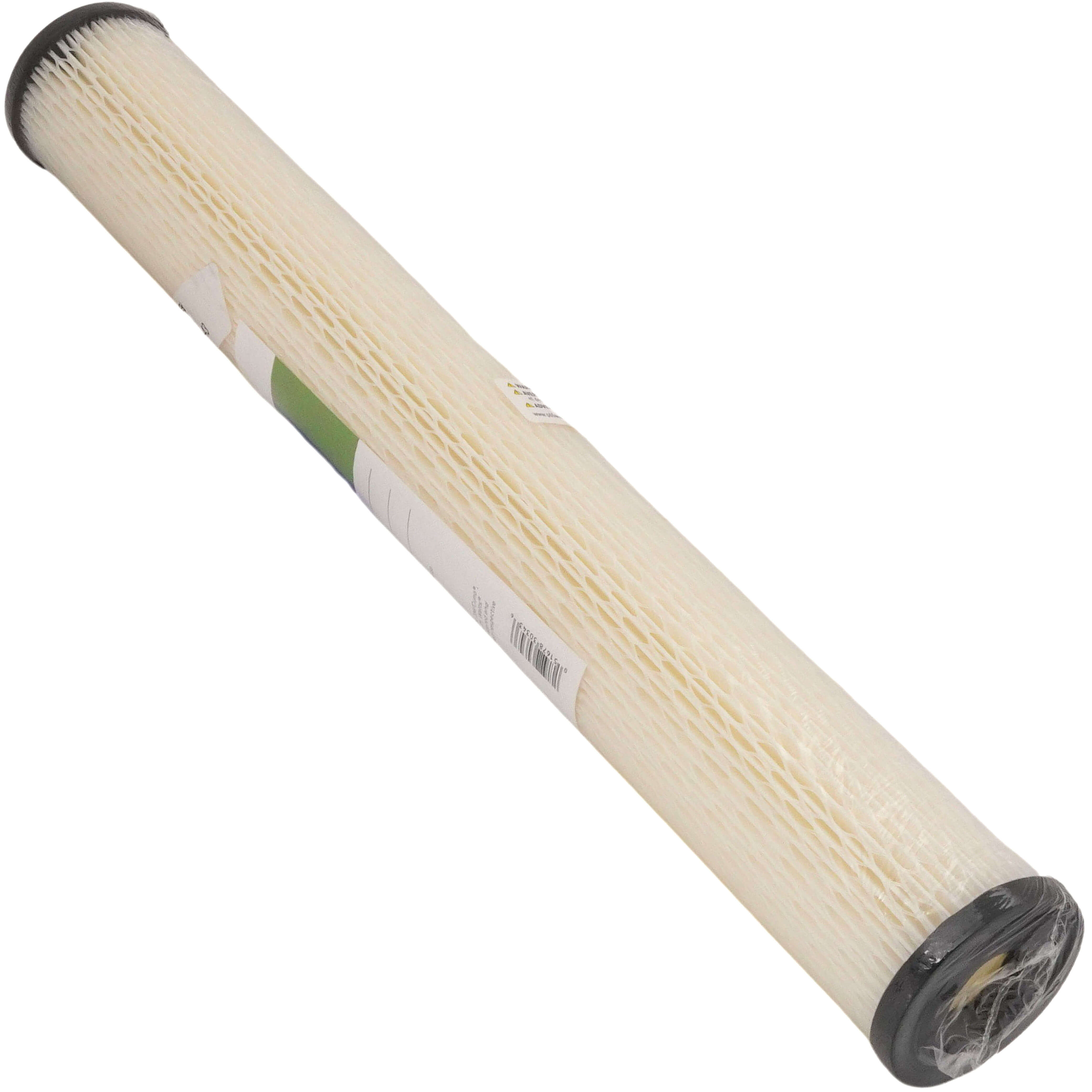

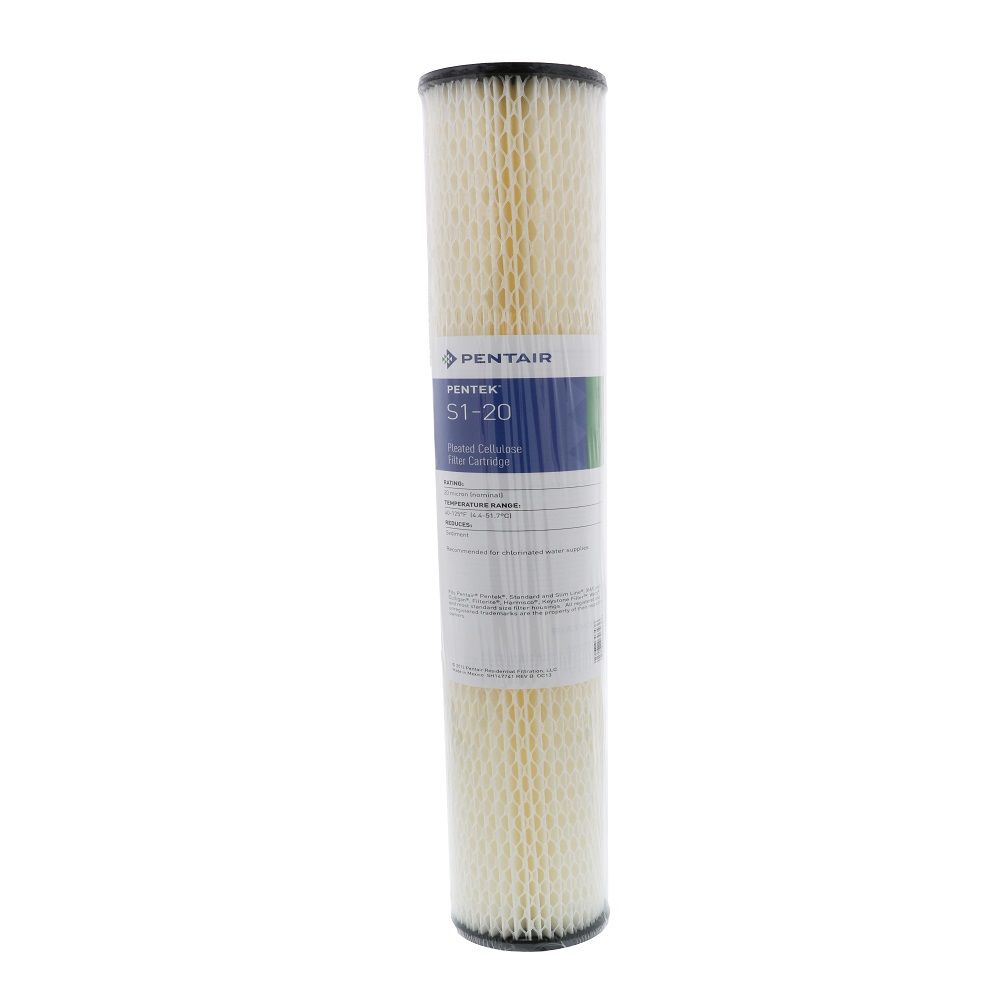

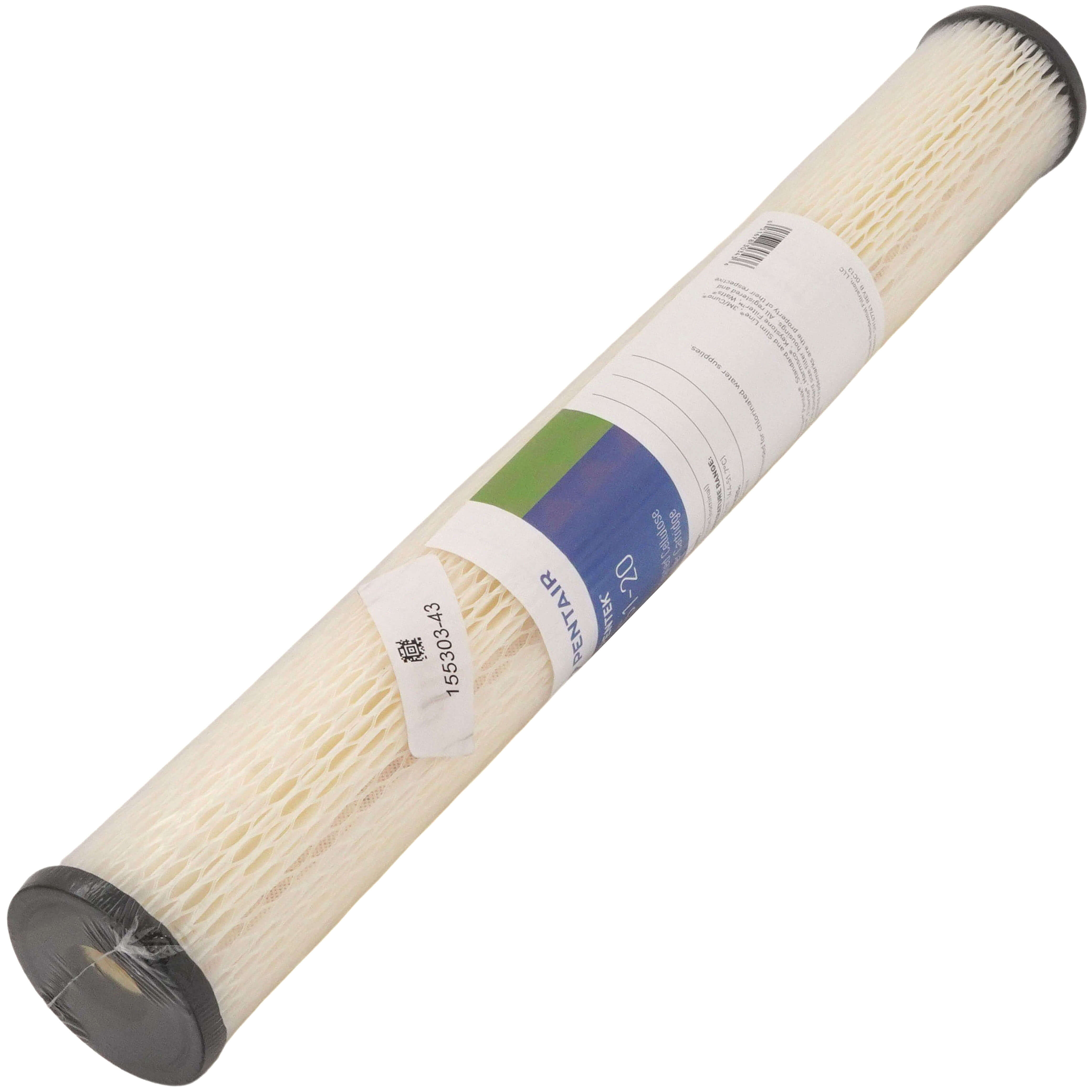

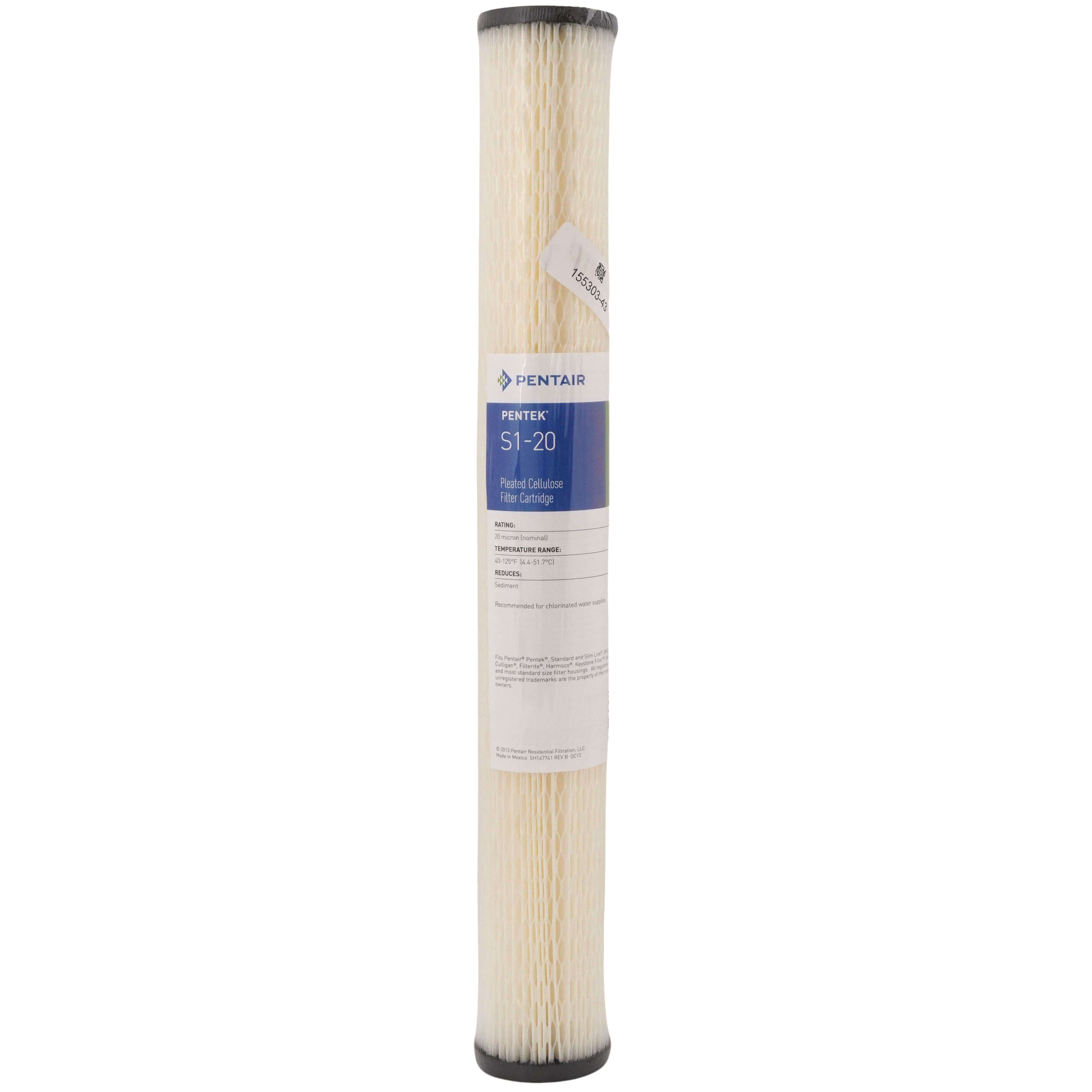

The PENTAIR 155303-43 S1-20 is a pleated cellulose sediment filter cartridge with a 20-micron rating designed for general water filtration purposes. It effectively reduces sediment particles and is recommended for chlorinated water supplies. The filter is constructed with pleated cellulose media around a polypropylene core for added strength.
- Sediment reduction
- 20" Height
- Cellulose Material
Product Highlights
The filter has a pleated design for high dirt loading and fits all 20" Standard and Slimline Housings.
Product Information
Standard Information
-
Brand: PENTAIR
-
Manufacturer Part Number: 155303-43
Technical Specifications
-
Type: Sediment
-
Height: 20"
-
Material: Cellulose
-
Application: Point of Entry
-
Filter Type: Pleated
-
Product Type: Filter Cartridge
-
Micron Rating: 20
-
Flow Rate (GPM): 10
-
Reduction Claim: Sediment
-
Diameter (Inches): 2-5/8"
-
Max Water Temp (°F): 145°F
-
Filter Life: 6 months
-
Contaminant Reduction: Sediment (sand, dirt, silt, rust, and scale particles)
-
Dimensions: 20" x 2.5"
-
Temperature Rating: 40°F to 145°F
-
Part Number: 155303-43 / 15530343
-
Model #: S1-20
-
Brand: Pentek
-
Made by: Pentair
-
Core Material: Polypropylene
-
Initial Pressure Drop: .8 PSI Differential
-
Outer Diameter: 2.625 in
-
Recommended Flow Rate: 15 GPM
-
Seal-Type Mechanism: None
-
Surface Area: 1,110 Square Feet
