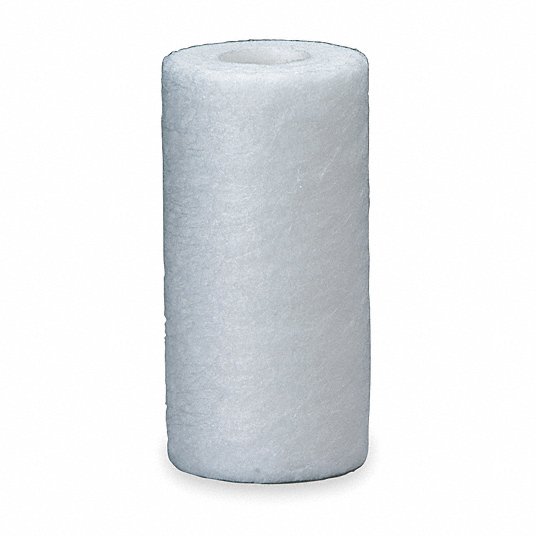

Pentair 155030-43 P Series 5 Micron Sediment Filter

Product Description

The PENTAIR 155030-43, also known as the Pentek P Series, is designed for purity and will not impart taste, odor, or color to the liquid being filtered. Manufactured from pure 100% polypropylene fibers, the spun fibers form a true gradient density from outer to inner surfaces. It is rated at 5 micron filtration and fits standard #5 Slim Line style filter housings.

• Manufactured from pure 100% polypropylene
• Designed for purity and chemical compatibility
• Spun fibers form a true gradient density from outer to inner surfaces

Product Highlights

The PENTAIR 155030-43 is ideal for sediment removal, prefiltration for reverse osmosis systems, and various applications requiring fine filtration.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 155030-43
• Country of Origin: China

Technical Specifications

• Part #: 155030-43
• Model: P5-478
• Brand: Pentek
• Filter Size: (Nominal): 5" Standard
• Actual Filter Dimensions: 2.38" OD x 4.88"L
• Filtration Rating (Nominal): 5 Micron
• Initial P @ Flow Rate: 0.3 psi @ 2 gpm
• Fits Housings of Approximate Outer Dimensions: 7.5"OD x 4.5"L
• Filter Media: Polypropylene fibers
• Temperature Rating: 40°F - 145°F
• Product Type: Simple product
• Series: P
• Micron: 5
• Material: Polypropylene
• Min. Temp (°F): 40
• Max Temp (°F): 145
• Case Qty: 24-Case
• Filtration Method: Sediment, Polypropylene
• Contaminant Removal: Sediment
• Number in Pack: 1
• Item Height: 1 Count (Pack of 1)
• Sub-brand: P5-478
• Reduces: Sediment
• Micron Rating: 5 micron
• Filter Design: Melt Blown
• Flow Rate: 2 gpm
• Inside Diameter: 1-1/8 in
• Outside Diameter: 2-3/8 in
• Overall Height: 4-7/8 in
• Max. Operating Pressure: 125 psi
• Max. Operating Temperature: 145 °F
• Min. Operating Temperature: 40 °F
• Compatible Brand: Universal
• Compatible Product Type: 5 in Housings
• Application: Drinking Water
• Standards: NSF 42
• Manufacturer Part Number: 155030-43
• UNSPSC: 40161516
