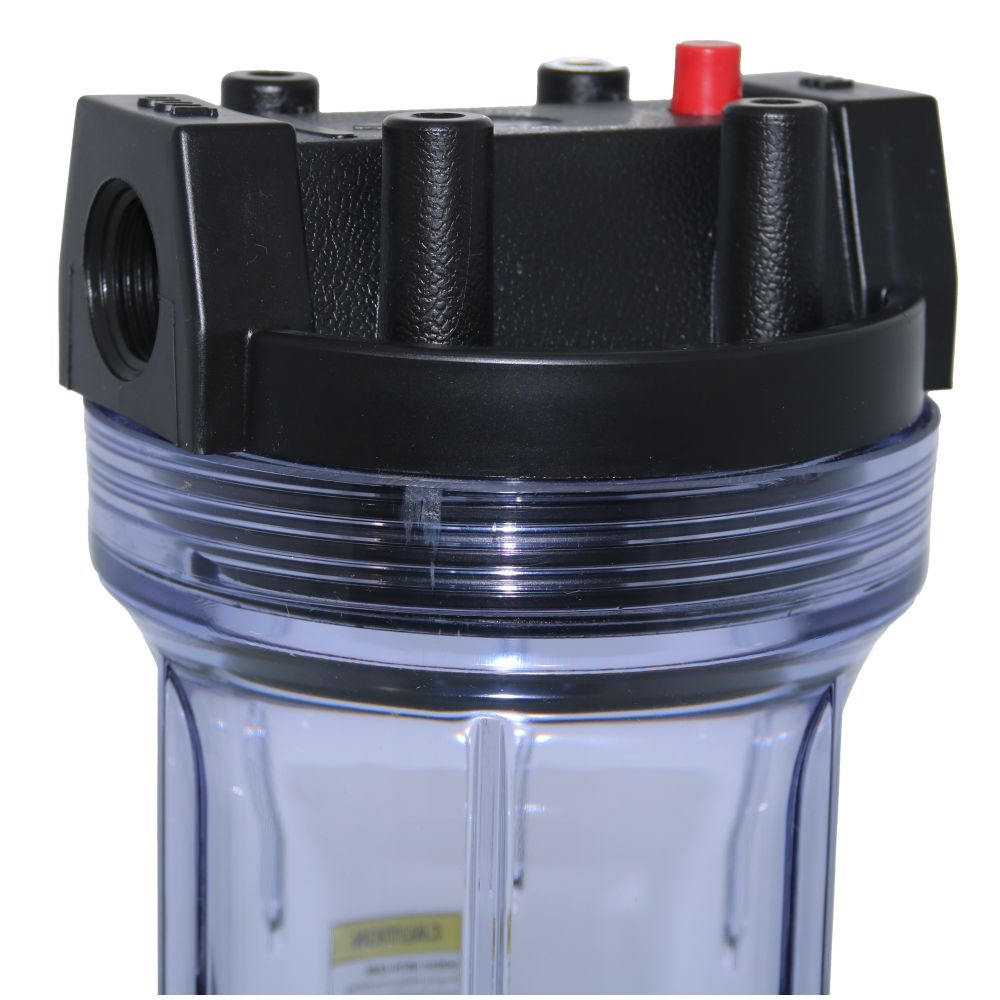

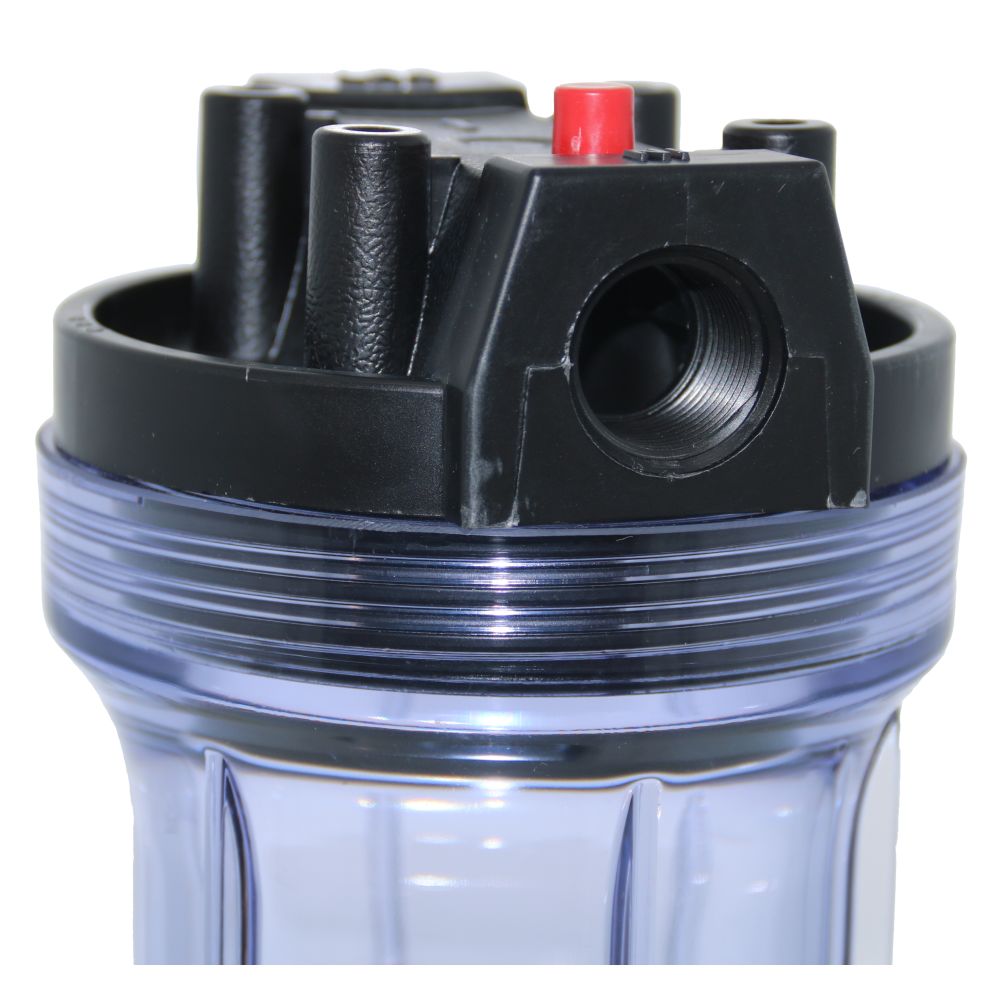

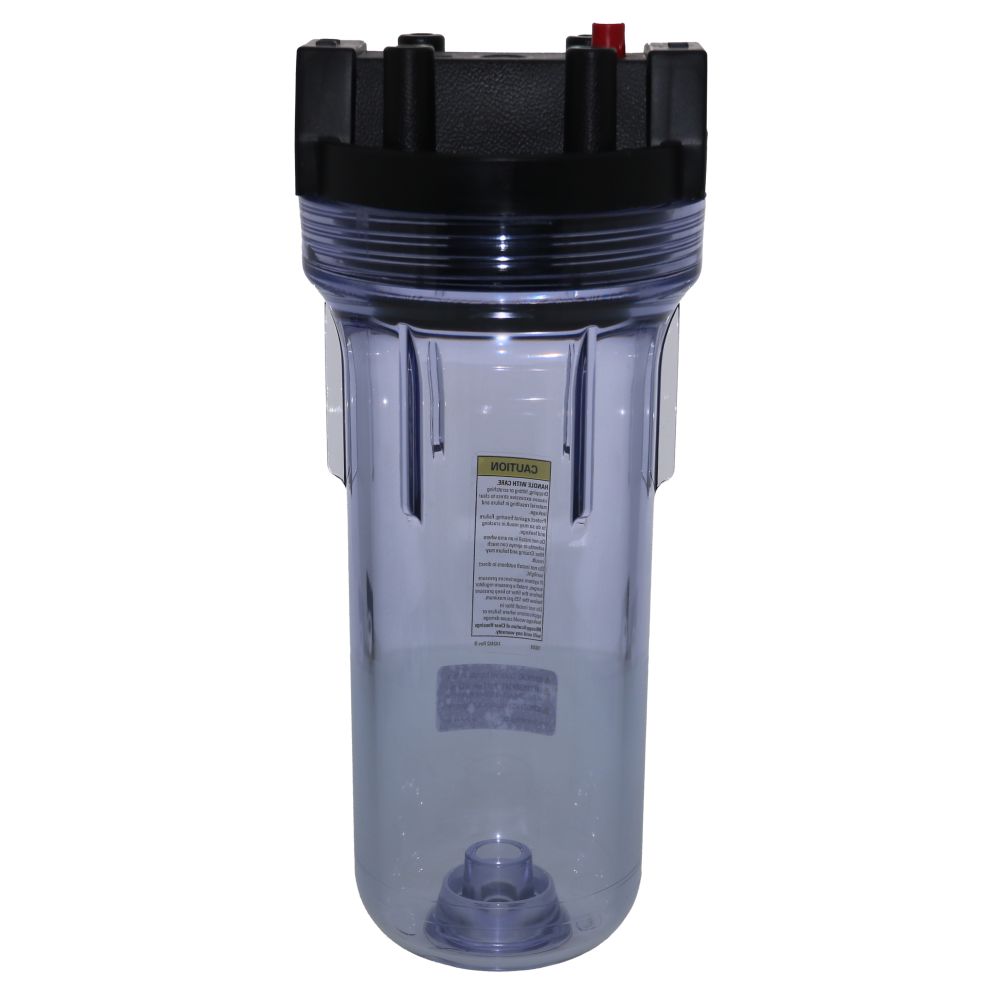

Pentair 150435 Pentek 10 inches Standard Water Filter Housing

Product Description

The Pentair 150435 Pentek standard water filter housing is made of reinforced polypropylene cap and a styrene acrylonitrile (SAN) sump. Equipped with 3/4" NPT inlet and outlet ports, the housing accommodates 2-1/2" to 2-7/8" diameter cartridges, making it ideal for low-flow applications. The clear sumps are annealed to relieve stress and to add clarity and strength.

• Ideal for residential, commercial, and industrial applications.
• Features mounting bosses for a bracket (not included).
• Offers excellent chemical resistance.

Product Highlights

The Pentek standard water filter housing has thick walls for increased strength and leak-proof sealing with a Buna-N O-ring.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 150435

Technical Specifications

• Cap Color: Black
• Features: Pressure Relief
• Housing Material: Styrene Acrylonitrile
• Inlet Connection: 3/4" FPT
• Max Pressure (Psi): 125
• Max Temp (°F): 125°F
• Mounting Options: Mounting Bosses
• Outlet Connection: 3/4" FPT
• Psid@Flow Rate: 1 PSI @ 10 GPM
• Seal / O-Ring Material: Buna-N (Nitrile)
• Size: 10"
• Cap Material: Polypropylene
• Connection Type: Female (FPT)
• Flow Rate: 10 GPM
• Type: Standard
• Product Certification Standard: NSF/ANSI 42
• Product Height: 5.125
• Product Length: 12.375
• Product Width: 5.125
• Temperature (Min): 40 °F
• Temperature (Max): 125 °F
• Pressure (Min): 40 psi
• Pressure (Max): 125 psi
• Inlet Size: 3/4"
• Inlet Connection Type: NPT
• Category: Filter Housings
• Connections: FPT
• Family: Filtration
• Filter length: 10"
• Group: Polypropylene
• Material: Styrene Acrylonitrile
• Nominal size str: 3/4"
• Seals: Buna-N
