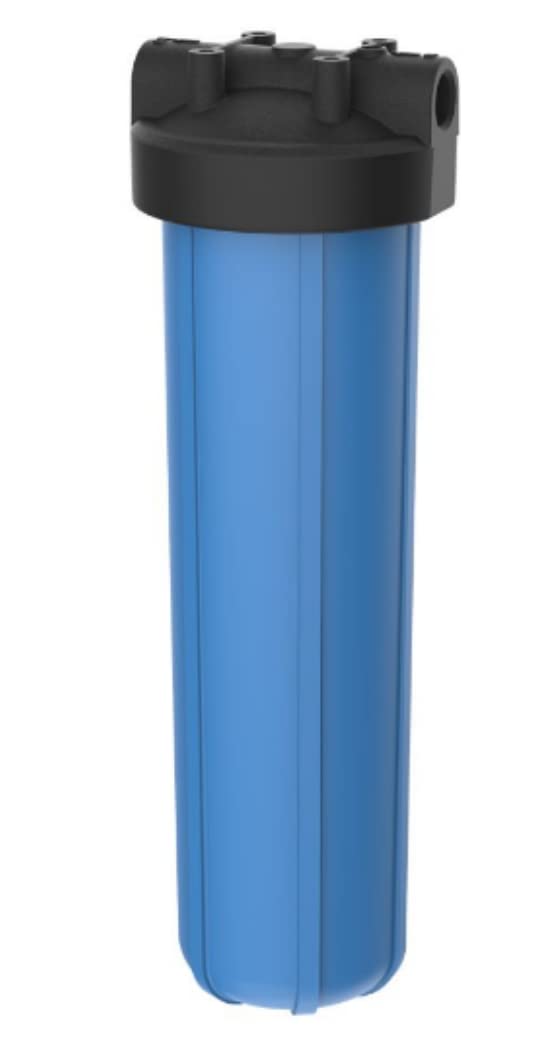

Pentair 150234 Big Blue Filter Housing 1 inches NPT 20-Inch

Product Description

The Pentair 150234 Big Blue Heavy Duty Filter Housing meets large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. It accepts a wide variety of 4-1/2" diameter cartridges.

• American plumber 150234 1 inch big Blue filter housing
• Without pressure relief button
• Reinforced polypropylene

Product Highlights

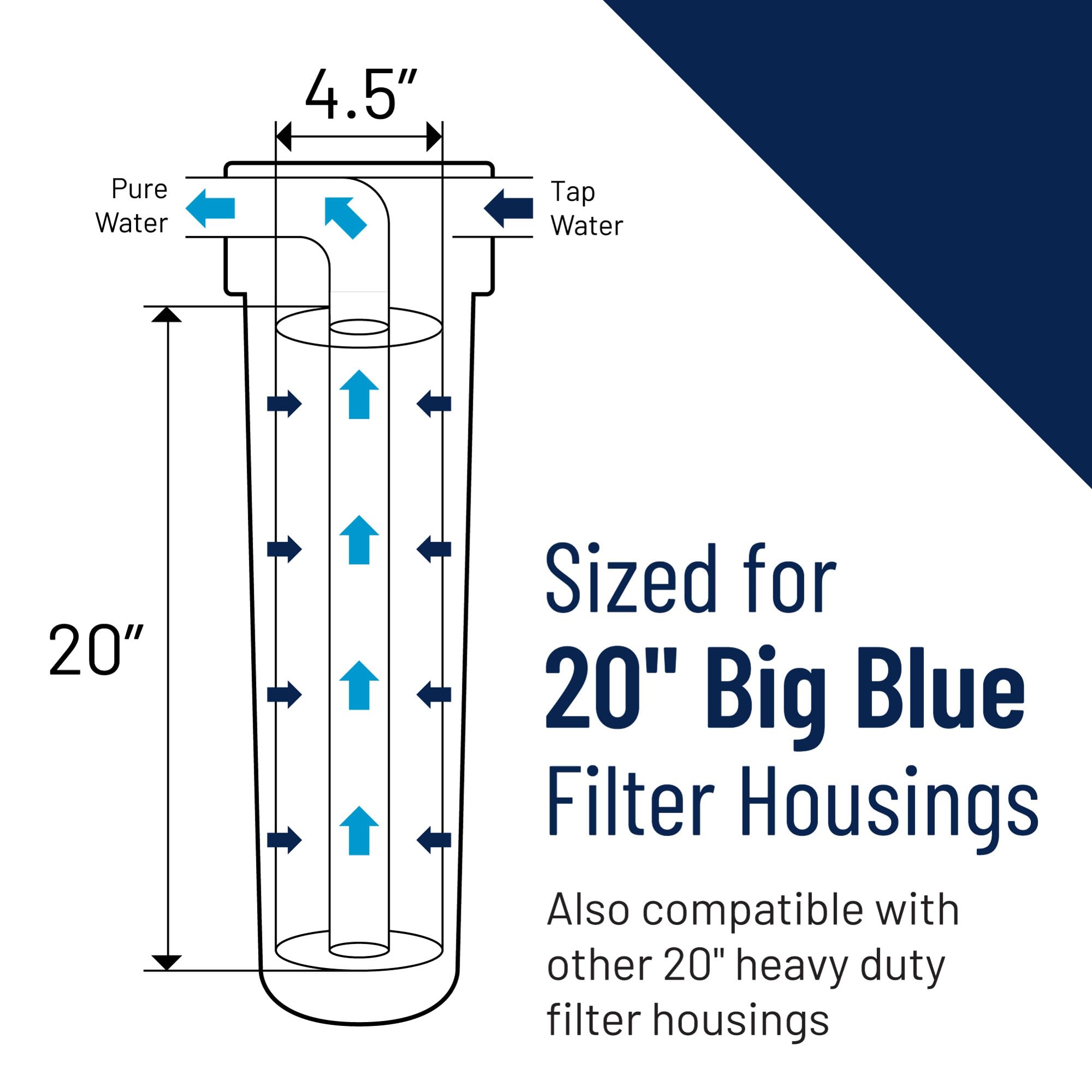

Large capacity housing suitable for high flow applications. Available in 10 and 20 lengths. Accepts up to 4-1/2 diameter cartridges.

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 150234
• Country of Origin: United States

Technical Specifications

• Model / MPN: 150234
• Size: 1" NPT
• Number of Items: 1.0
• Product Type: POTABLE_WATER_FILTER
• Manufacturer: Pentair
• Brand: Pentek
• Inlet/Outlet Size: 1"
• Housing Size: 20" Big Blue
• Housing: Polypropylene
• Cap: Polypropylene (HFPP)
• Button Assembly: 300-Series stainless steel, EPDM, and polypropylene
• O-Ring: EPDM
• Temperature Rating: 40-100oF (4.4-37.8oC)
• Maximum Pressure- 10": 100 psi (6.9 bar)
• Maximum Pressure- 20": 90 psi (6.2 bar)
