Pentair 150068 Standard Water Filter Housing 10 inches

Product Description

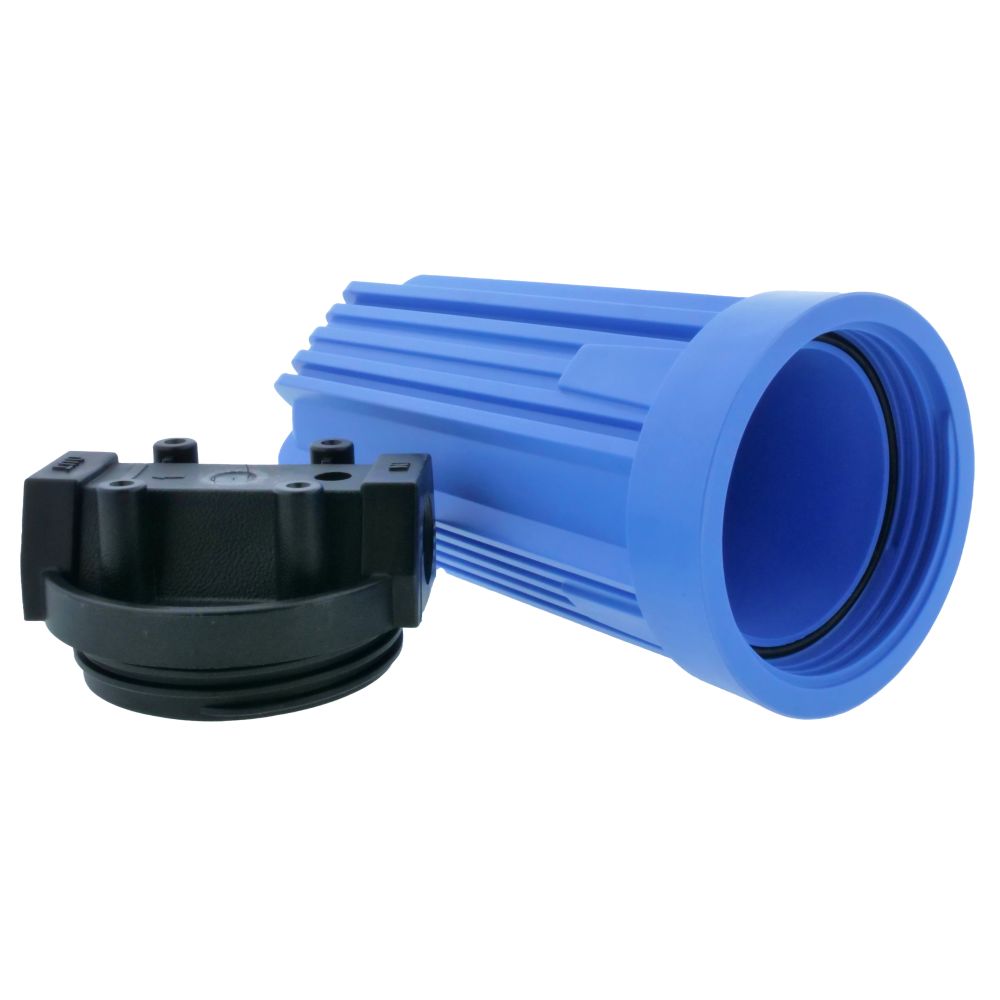

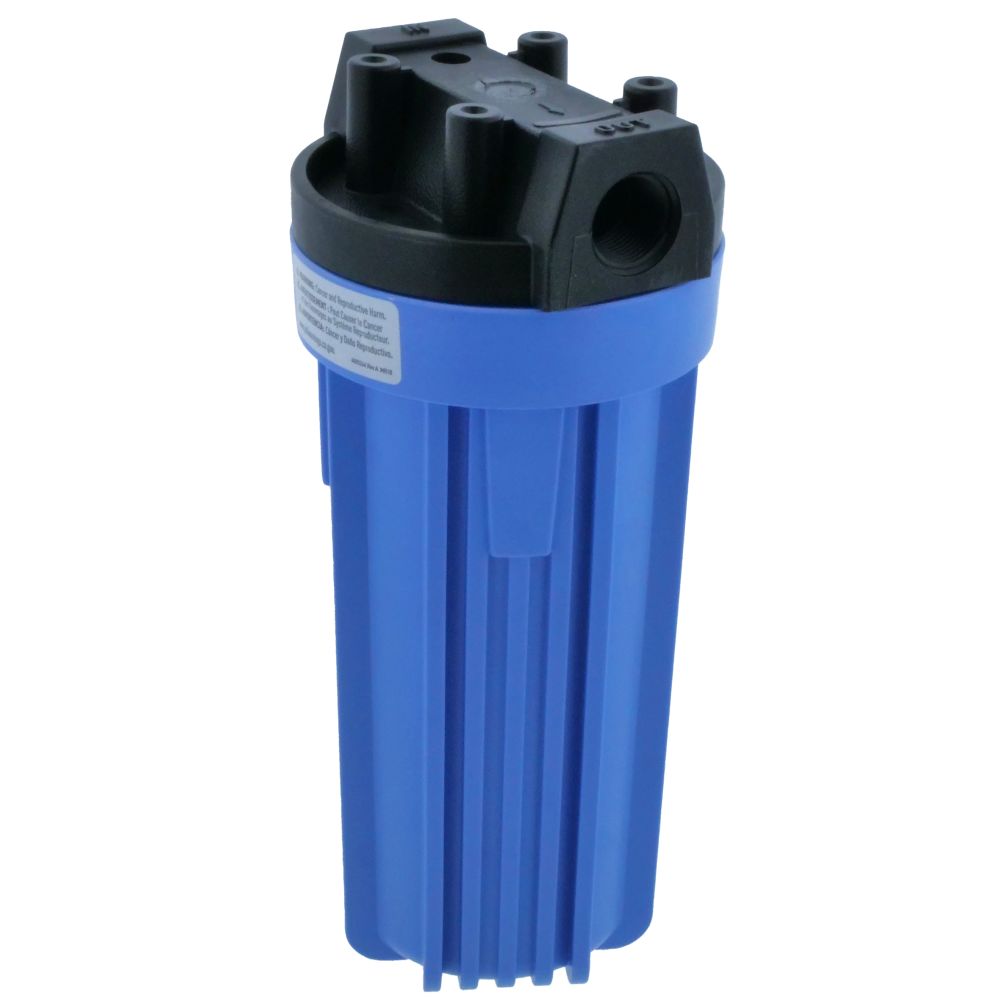

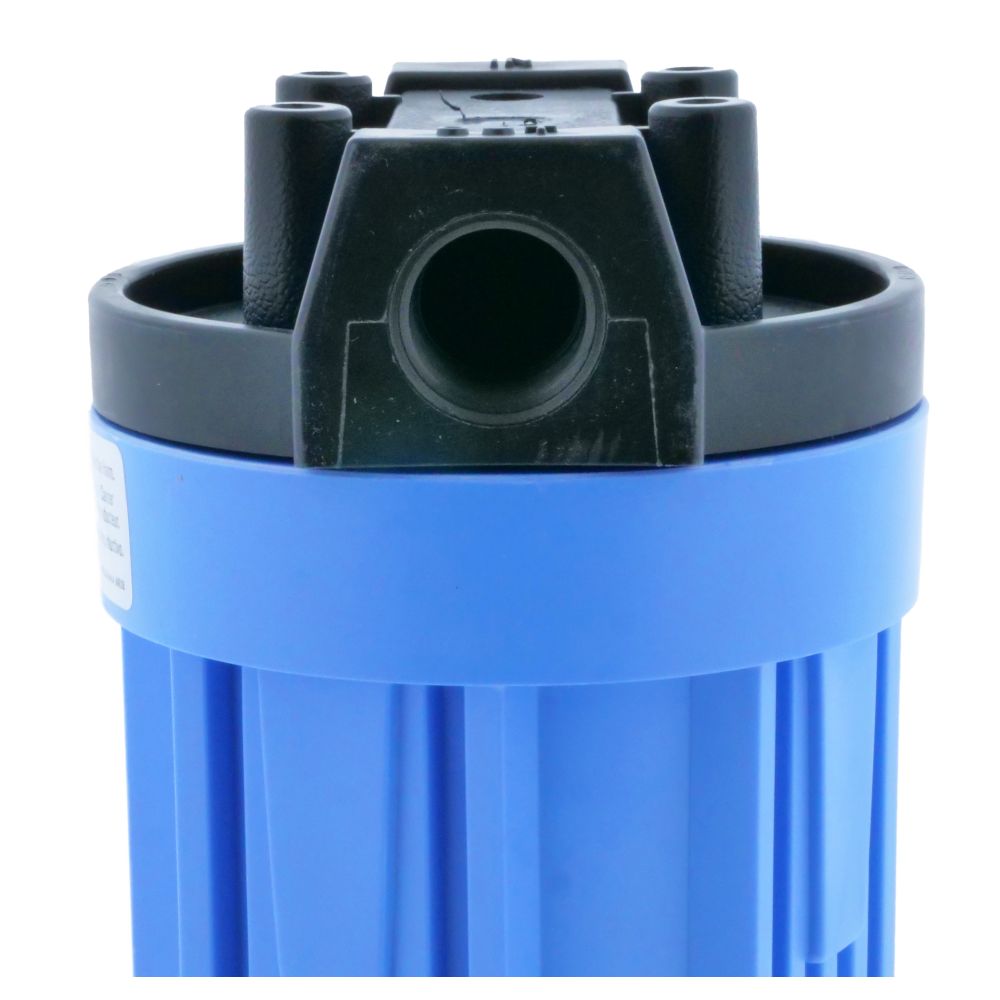

The PENTAIR 150068 standard water filter housing is made of durable polypropylene and equipped with 3/4" NPT inlet and outlet ports. The housing offers chemical compatibility and accommodates 2-1/2" to 2-7/8" diameter cartridges, ideal for low-flow applications in residential, commercial, and industrial settings.

• Reinforced polypropylene housings have excellent chemical resistance
• Clear sumps offer on-site examination of the cartridge
• Leak-proof sealing with top-seated 151120 Buna-N O-ring

Product Highlights

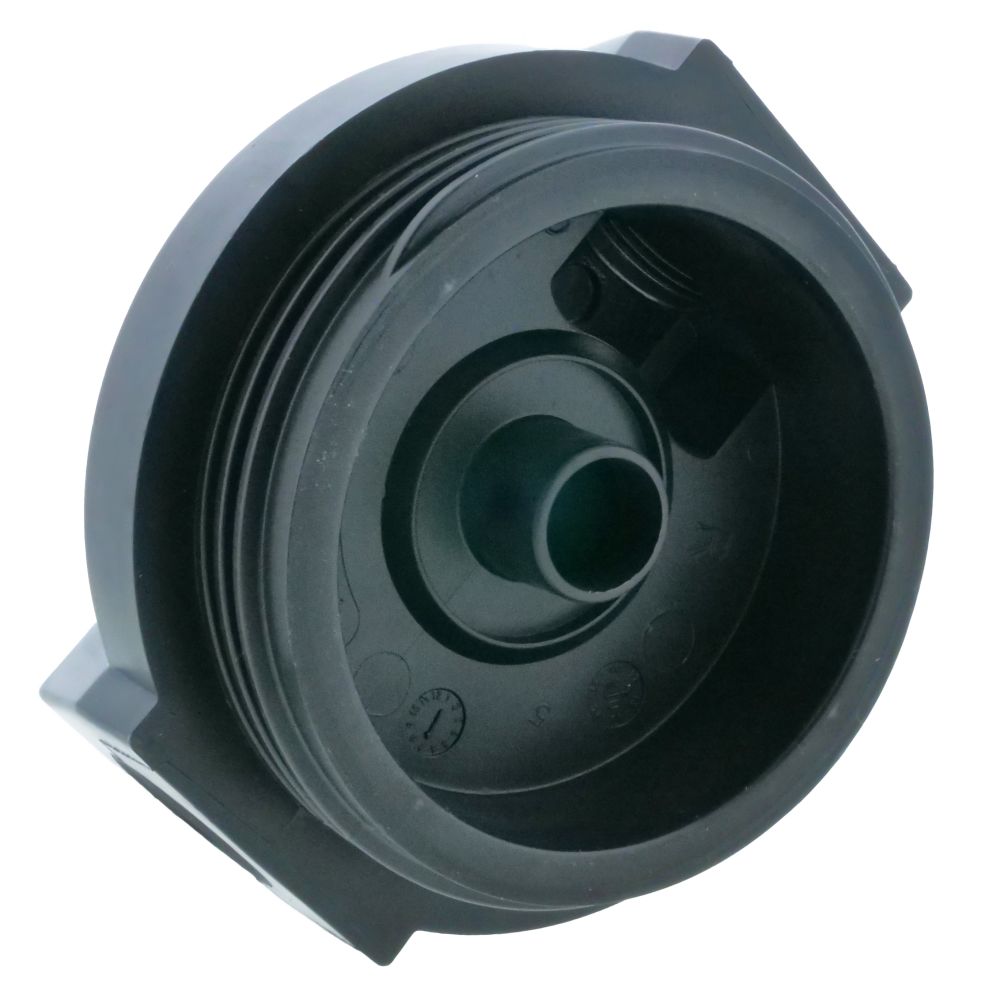

Ideal for residential, commercial, and industrial applications, the housing features thick walls for increased strength and a cap with mounting bosses for a bracket (not included).

Product Information

Standard Information

• Brand: PENTAIR
• Manufacturer Part Number: 150068

Technical Specifications

• Temperature (Min): 40 °F
• Temperature (Max): 125 °F
• Pressure (Min): 40 psi
• Pressure (Max): 125 psi
• Inlet Size: 3/4"
• Inlet Connection Type: NPT
• Color: Blue
• Connection Type: Threaded
• Gender: Female
• Length: 10 IN
• Material: SAN/POLYPRO
• Mfg: Pentair
• Pipe Size: 3/4 IN
• Threading: IPS
• Cap Color: Blue
• Housing Material: Polypropylene
• Inlet Connection: 3/4" FPT
• Outlet Connection: 3/4" FPT
• Seal / O-Ring Material: Buna-N (Nitrile)
