Product Description

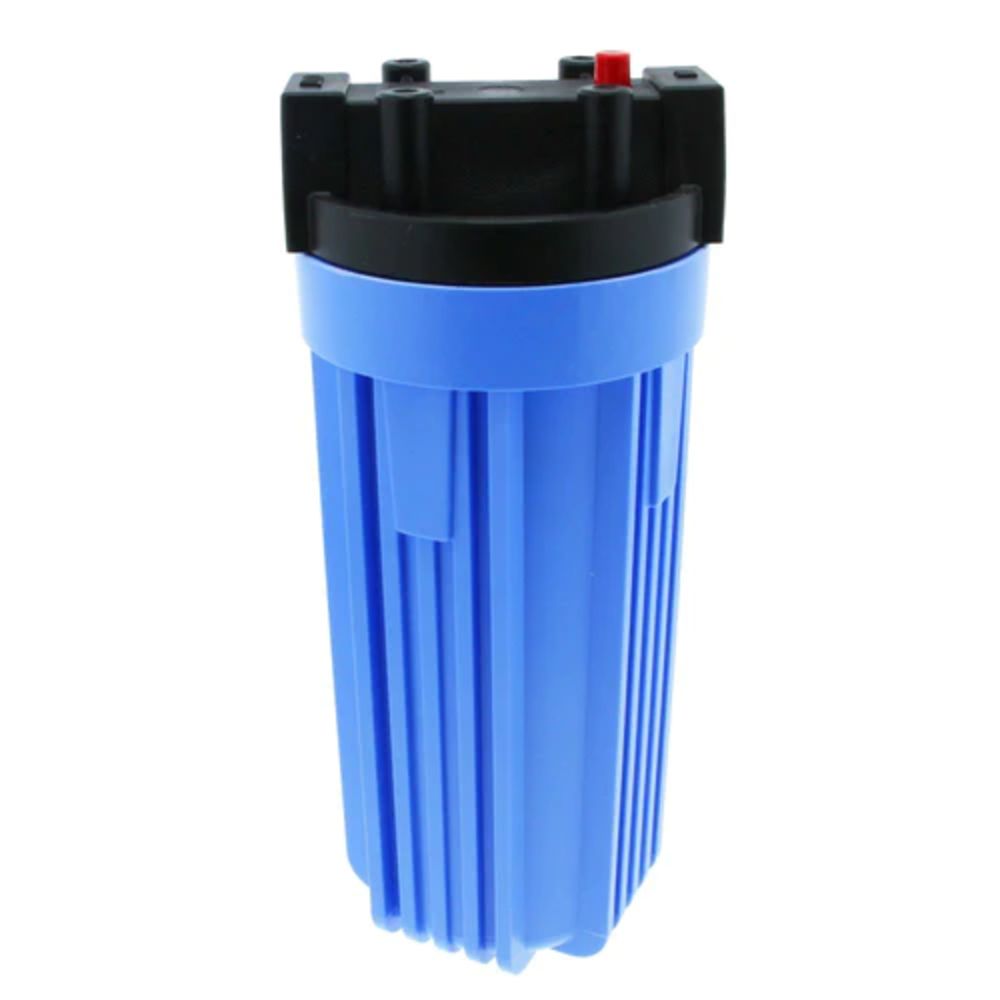

The Pentair 150002 Pentek Traditional Standard Filter Housing with 3/4" NPT connection is constructed from reinforced polypropylene, offering excellent chemical resistance. It is ideal for residential, commercial, and industrial applications. It features thick walls for increased strength and a pressure relief/bleed button on the inlet side of the cap.
- Ideal for residential, commercial, and industrial applications
- Features thick walls for increased strength
- Includes a pressure relief/bleed button
Product Highlights
The Pentek 150002 filter housing provides a leak-proof seal and is suitable for various applications requiring chemical resistance and durability.
Product Information
Standard Information
-
Brand: PENTAIR
-
Manufacturer Part Number: 150002
Technical Specifications
-
Brand: Pentair / Pentek
-
MPN: 150002
-
Series: Traditional Standard
-
Size: 3/4"
-
Connection: NPT
-
PSI: 125 PSI
-
Min. Temp (°F): 40
-
Max Temp (°F): 125
-
Case Qty: 12-Case
-
Body Material: Polypropylene
-
Housing Material: Polypropylene
-
Inlet Connection: 3/4" NPT
-
Outlet Connection: 3/4" NPT
-
Seal / O-Ring Material: EPDM
-
Shipping Length: 14
-
Shipping Width: 6
-
Shipping Height: 6
-
Ports: 3/4" NPT
-
Maximum Dimensions: 12.25" x 5.13" (311 mm x 130 mm)
-
Cap: Reinforced polypropylene
-
Button Assembly: 300 Series stainless steel, EPDM, and polypropylene
-
O-Ring: Buna-N
-
Temperature Rating: 40-125°F (4.4-51.7°C)
-
Maximum Pressure: 125 psi (8.6 bar)
-
Temperature (Min): 40 °F
-
Temperature (Max): 125 °F
-
Pressure (Min): 40 psi
-
Pressure (Max): 125 psi
-
Inlet Size: 3/4"
-
Inlet Connection Type: NPT
