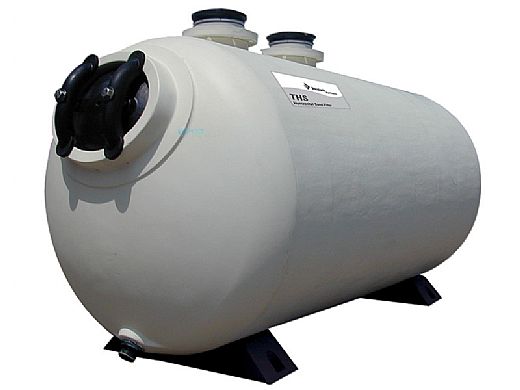

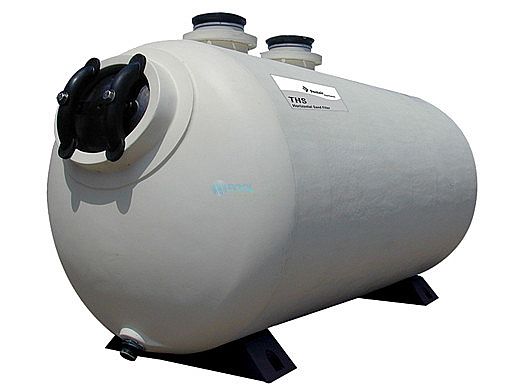

Pentair 144296 THS Series Horizontal Sand Filter 42 x 96

Product Description

The Pentair THS Series Horizontal Sand Filter, model 144296, is designed for commercial swimming pools and various water applications. It caters to filters with up to twenty-seven square feet of filtration area. This product includes various sizes and configurations suitable for different water bodies.

The THS Series filter is an NSF-certified tank rated for fifty psi with maximum flow rates reaching up to five hundred thirty-five gallons per minute in one tank. Its filter shell is made from a durable composite laminate, eliminating the need for winding. An additional interior coating enhances protection for wet surfaces.

• Constructed with multi-layer fiberglass for durability.
• Operating pressure capability up to fifty psi.
• Comes with efficient headers and distributors for optimal sand flow.

Product Highlights

This product guarantees effective filtration while being easy to install and maintain, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Tank Diameter: 42 inches
• Valve Position: Top

Technical Specifications

• Square Foot: 27.60
• ClearPro Technology: No
• Flow Rate: NSF Listed for five to twenty GPM per square foot of filter area
• Maximum Working Pressure: fifty psi
• Continuous Water Temperature: one hundred twenty-five degrees Fahrenheit
• Sand Media: #20 white quartz silica sand with effective size of 0.45-0.55 mm
• Safety Features: Automatic and manual air release systems included
