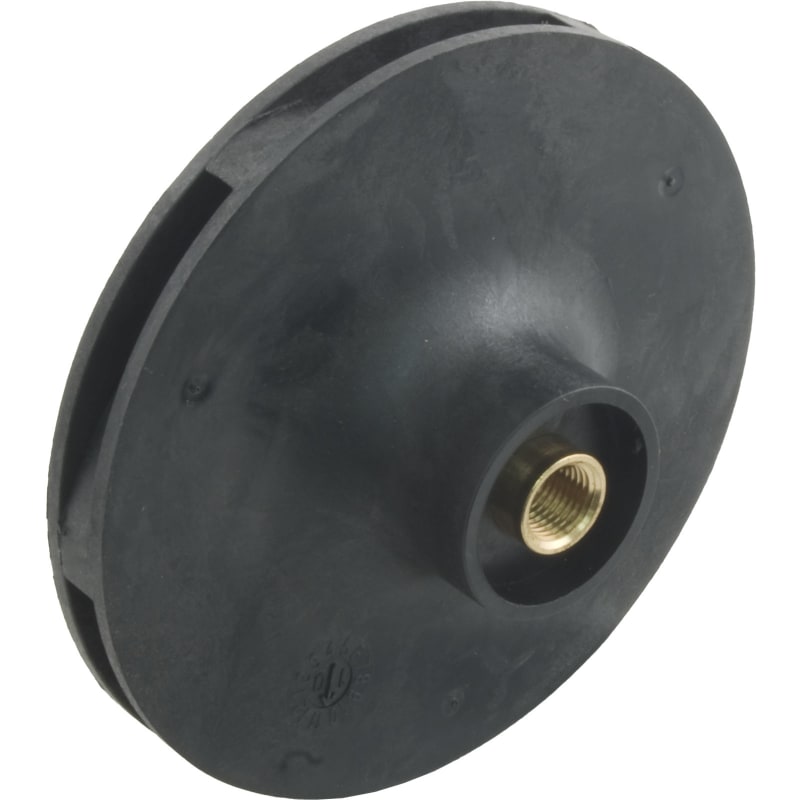

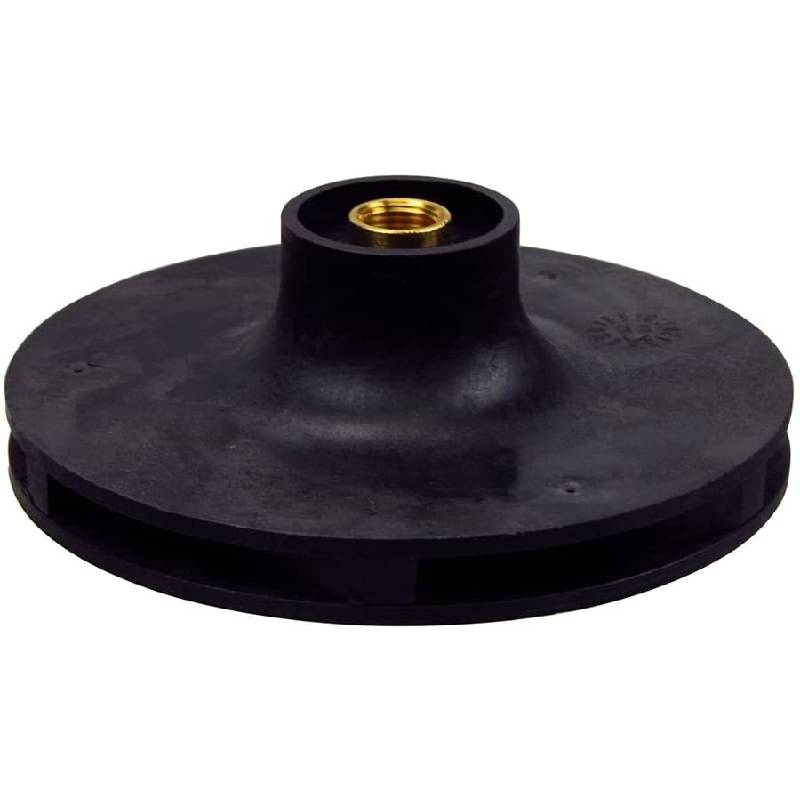

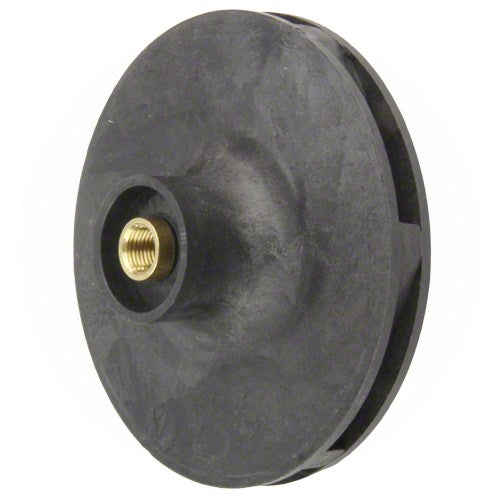

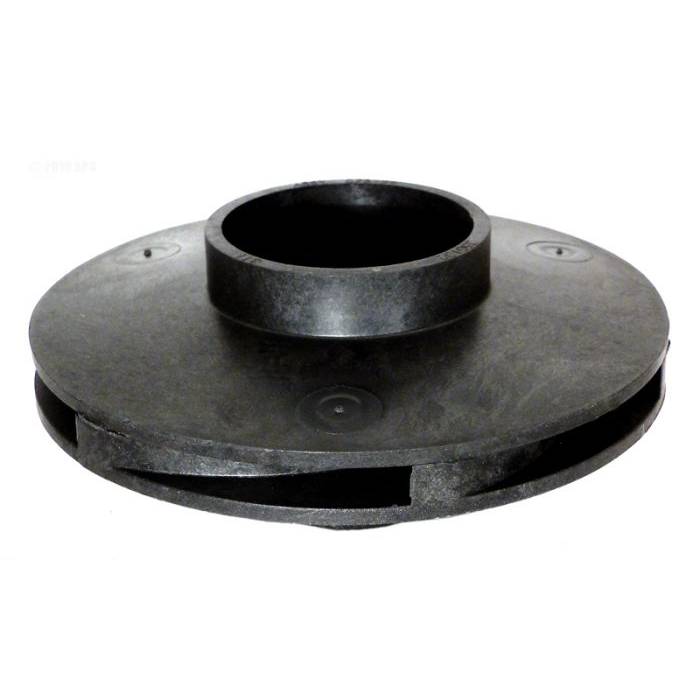

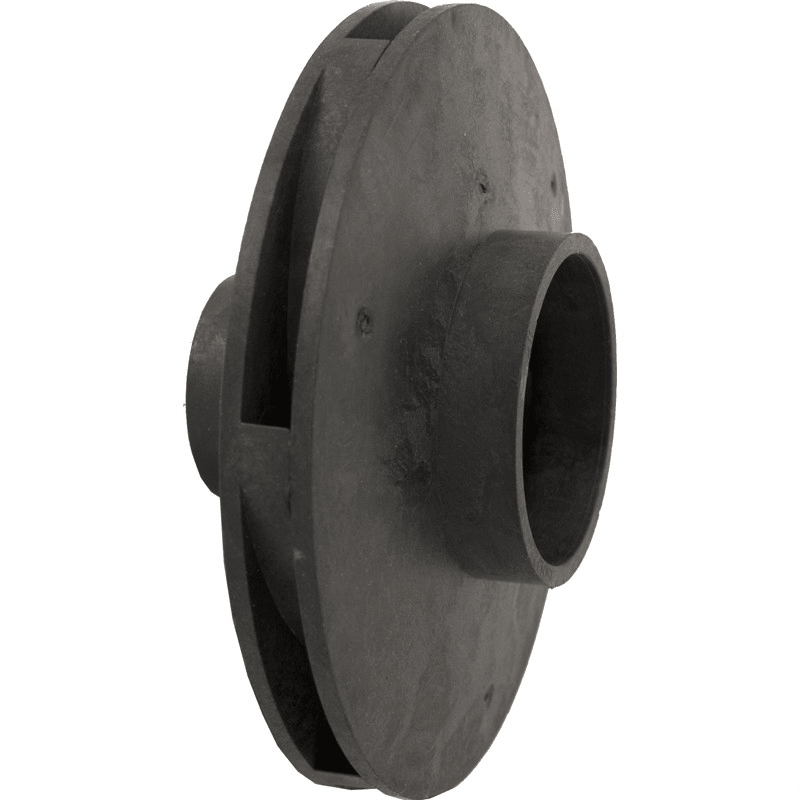

Pentair 073129Z WhisperFlo 1.5 HP Impeller

Product Description

The Pentair 073129Z WhisperFlo 1.5 HP Impeller is a critical component for Pentair WhisperFlo 1000 Series inground pumps. This impeller is compatible with models WF-6, WF-28, WFE-6, WFE-28, WFK-6, WFDS-6, and WFDS-28. It plays an essential role in moving water throughout the pumping system for efficient operation.

• Designed for use with Pentair WhisperFlo 1000 Series pumps.
• Constructed with a closed face design.
• Dimensions are five and one-fourth inches in length, two and one-fourth inches in height, and five and one-fourth inches in width.

Product Highlights

The impeller is designed for easy installation on a square flange motor, ensuring compatibility and effective water movement.

Product Information

Standard Information

• Product Name: WhisperFlo Impeller
• Manufacturer Part Number: 073129

Technical Specifications

• Fits: Pentair WhisperFlo 1000 Series models WF-6, WF-28, WFE-6, WFE-28, WFK-6, WFDS-6, WFDS-28
• Measurements: 5-1/4 inches length, 2-1/4 inches height, 5-1/4 inches width
• Impeller Type: Closed Face
• Impeller Diameter: 4-7/8 inches
• Shaft Length: 1/4 inches
• Shaft Diameter: 5/8 inches
• Seal Seat Depth: 1/4 inches
