Product Description

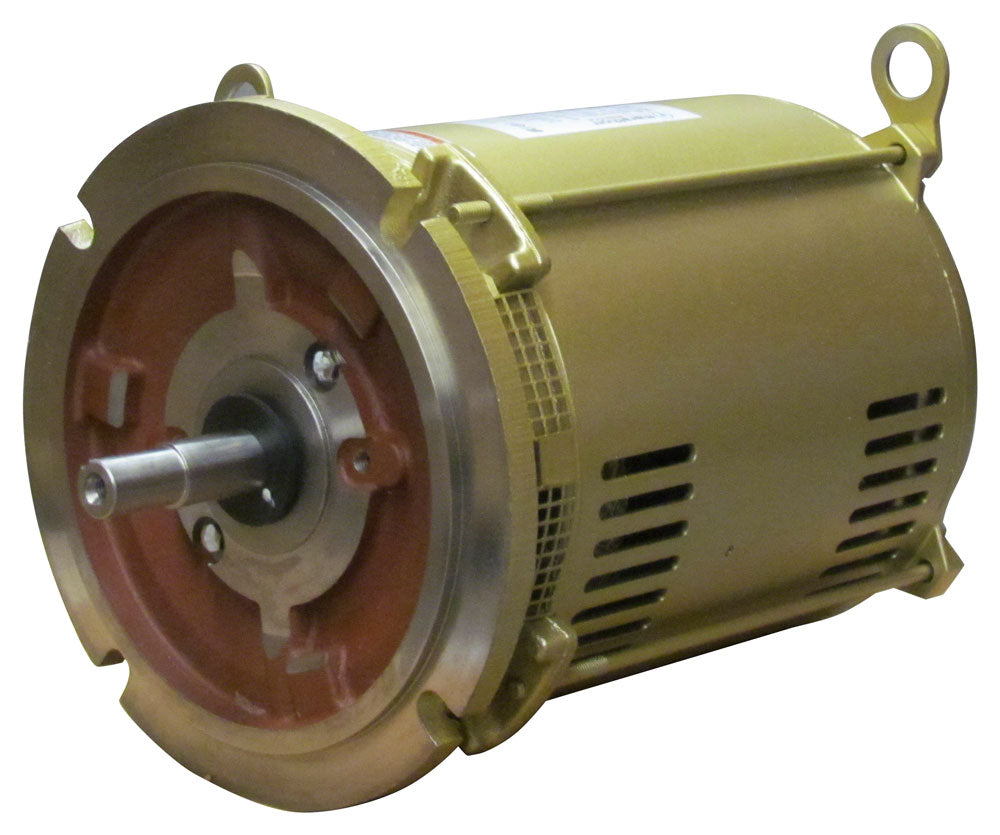

The Pentair 071363S is a 3-Phase, 10 HP motor replacement designed for Pentair C-Series commercial performance pool and spa pumps. Operating at 208-220/440-Volt and 60 Hz, this motor is constructed in bronze for maximum strength and durability, meeting the demands of the commercial pool industry.
- 3-Phase, 10-horsepower motor replacement
- Fits Pentair C-Series commercial performance pool and spa pumps
- Operates at 208-220/440-Volt
Product Highlights
This Pentair motor is a reliable replacement part for C-Series commercial pool pumps, offering durability and performance.
Product Information
Standard Information
-
Brand: PENTAIR
-
Manufacturer Part Number: 071363S
Technical Specifications
-
Brand: Pentair
-
Manufacturer: Pentair
-
Model / MPN: 071363S
-
Product Type: ELECTRIC_MOTOR
-
MPN: 071363S
-
Electrical Type: Polyphase
-
Poles: 2
-
Rotation: Reversible
-
Mounting: Round
-
Motor Orientation: Horizontal
-
Drive End Bearing: BALL
-
Opp Drive End Bearing: BALL
-
Frame Material: Rolled Steel
-
Shaft Type: Keyed
-
Overall Length: 16.54 in
-
Frame Length: 9.65 in
-
Shaft Diameter: 1.000 in
-
Shaft Extension: 3 in
-
Motor Type: Pool
-
Pump Part Type: Motor
-
Motor Amperage: 28.0A-25.3A/12.6A
-
Frame Type: 213TY
-
Speed: 1 Speed (1-Spd)
-
Horsepower: 10.0hp
-
Phase: 3 Phase (3ph)
-
Voltage: 208v-230v/460v
-
Forusewith: C Series Commercial Pump
-
HP: 10
-
Item: Motor
-
VoltageRating: 208 - 220/440 V
