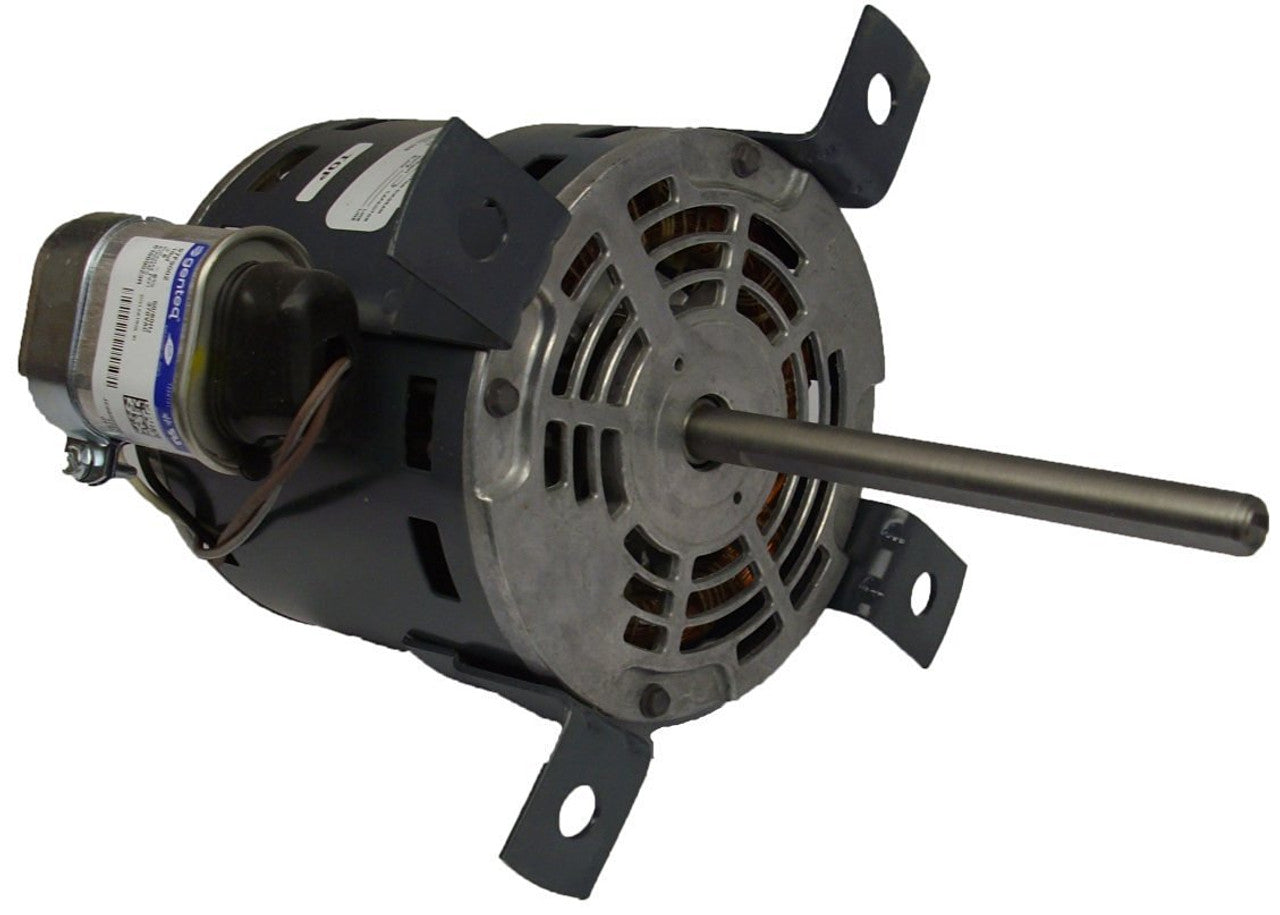

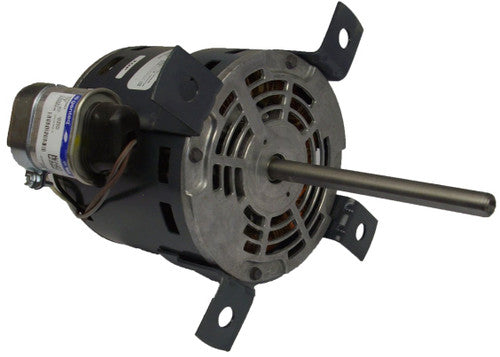

PENN VENT 63752-0 Electric Motor 3/4 HP

Product Description

The PENN VENT 63752-0 is a reliable electric motor suitable for various ventilation applications. This motor operates at one hundred fifteen volts and supports both fifty and sixty hertz frequency. It provides three-quarters of a horsepower with a speed of one thousand seven hundred fifty RPM. The motor’s shaft has a diameter of one-half inch, providing robust connectivity for systems requiring effective air movement.

• Horsepower: 3/4 HP
• Shaft Diameter: 1/2 inch
• Speed: 1750 RPM

Product Highlights

This motor is designed for efficient performance in ventilation systems. It has an open enclosure and includes a capacitor for enhanced functionality.

Product Information

Standard Information

• Input Voltage: 115 V
• Frequency: 50/60 Hz

Technical Specifications

• Horsepower: 3/4 HP
• Speed: 1750 RPM
• Current: 8.6/9.6 Amps
• Shaft Dimensions: 1/2 x 5-1/2 inches
• Motor Diameter: 5-5/8 inches
• Motor Length: 5-23/32 inches
• Rotation: CW shaft end
• Motor Type: PSC Motor With Cap
• Insulation Class: Class B
• Ambient Temperature: 50 degrees C
• Enclosure: Open
• Phase: 1
• Speeds: 1
• Protector: Automatic
• Service Factor: 1.00
• Bearing: Ball Bearing
• Frame: 48
