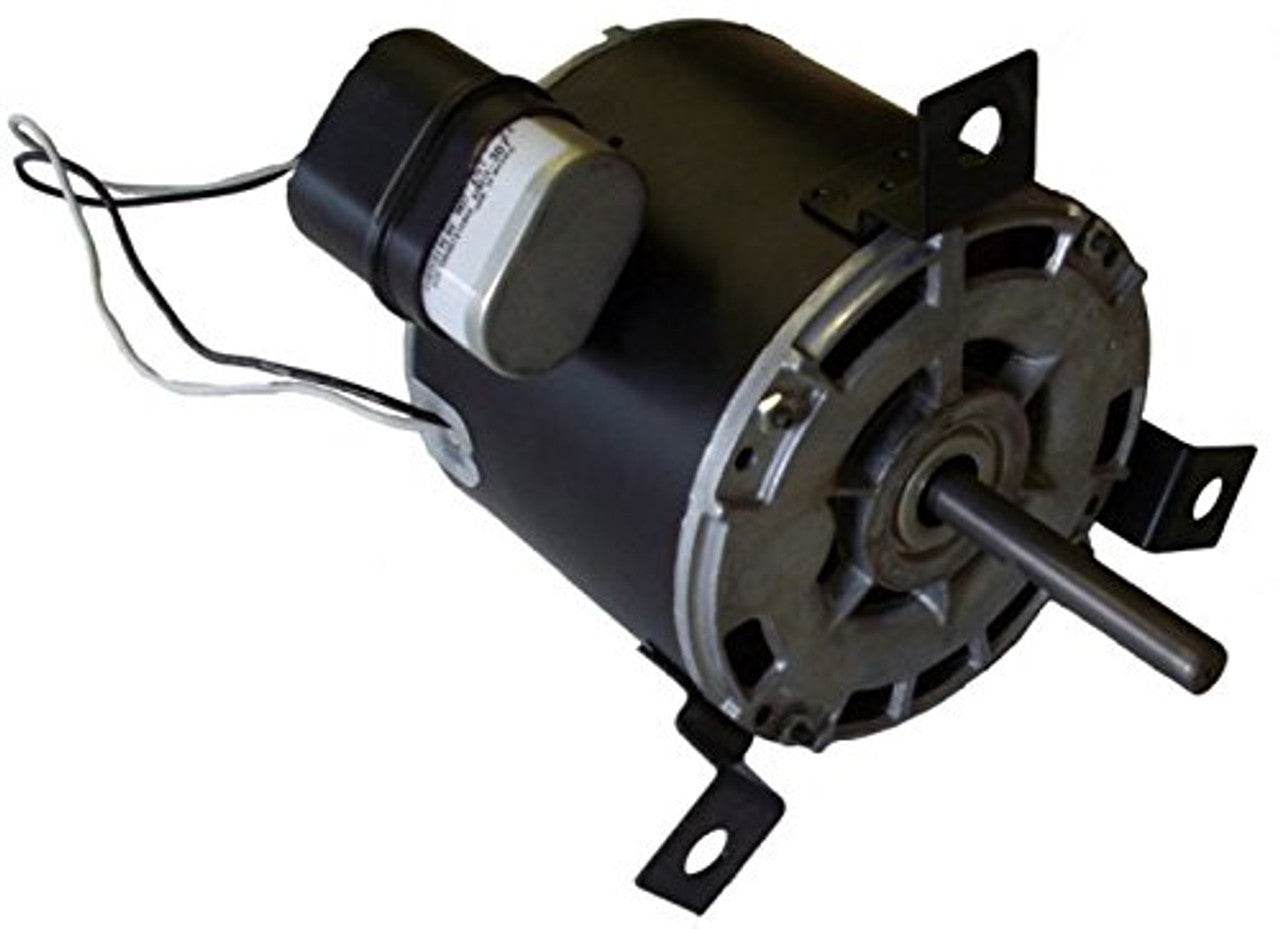

PENN VENT 63749-0 Electric Motor 1/4 HP 115V

Product Description

The PENN VENT 63749-0 electric motor is designed for ventilation applications and delivers efficient performance. This motor operates at one hundred fifteen volts with a frequency of fifty to sixty hertz. It has a power rating of one-quarter horsepower and runs at a speed of one thousand seven hundred twenty-five revolutions per minute. The motor comes with a capacitor and has a clockwise shaft end rotation.

• Operates at 115V and 50/60 Hz
• Features a 1/4 HP motor with a speed of 1725 RPM
• Includes a capacitor and has clockwise shaft end rotation

Product Highlights

This reliable electric motor is suitable for various HVAC and ventilation systems, providing robust airflow with minimal energy consumption.

Product Information

Standard Information

• Manufacturer: Penn Vent
• MPN: 63749-0

Technical Specifications

• Input Voltage: 115 Volts
• Frequency: 50/60 Hz
• Input Current: 3.5 Amps
• Horsepower: 1/4 HP
• Speed: 1725 RPM
• Shaft Size: 1/2 inches x 3 inches
• Motor Length: 4.5 inches
• Motor Diameter: 5.625 inches
• Bearing Type: Ball Bearing
• Capacitor: Permanent Split Capacitor (PSC)
• Rotation: CWSE
• Enclosure: Open
• Frame: 48
• Protector: Auto
• Mounting Type: 3 Lug Mount
