PENN VENT 60076-0 Motor 1/6 HP Replacement 323P764

Product Description

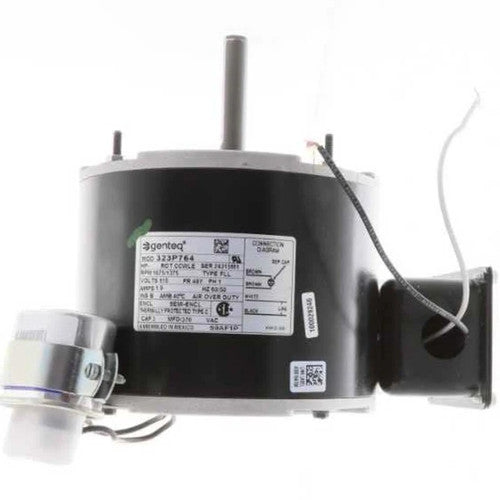

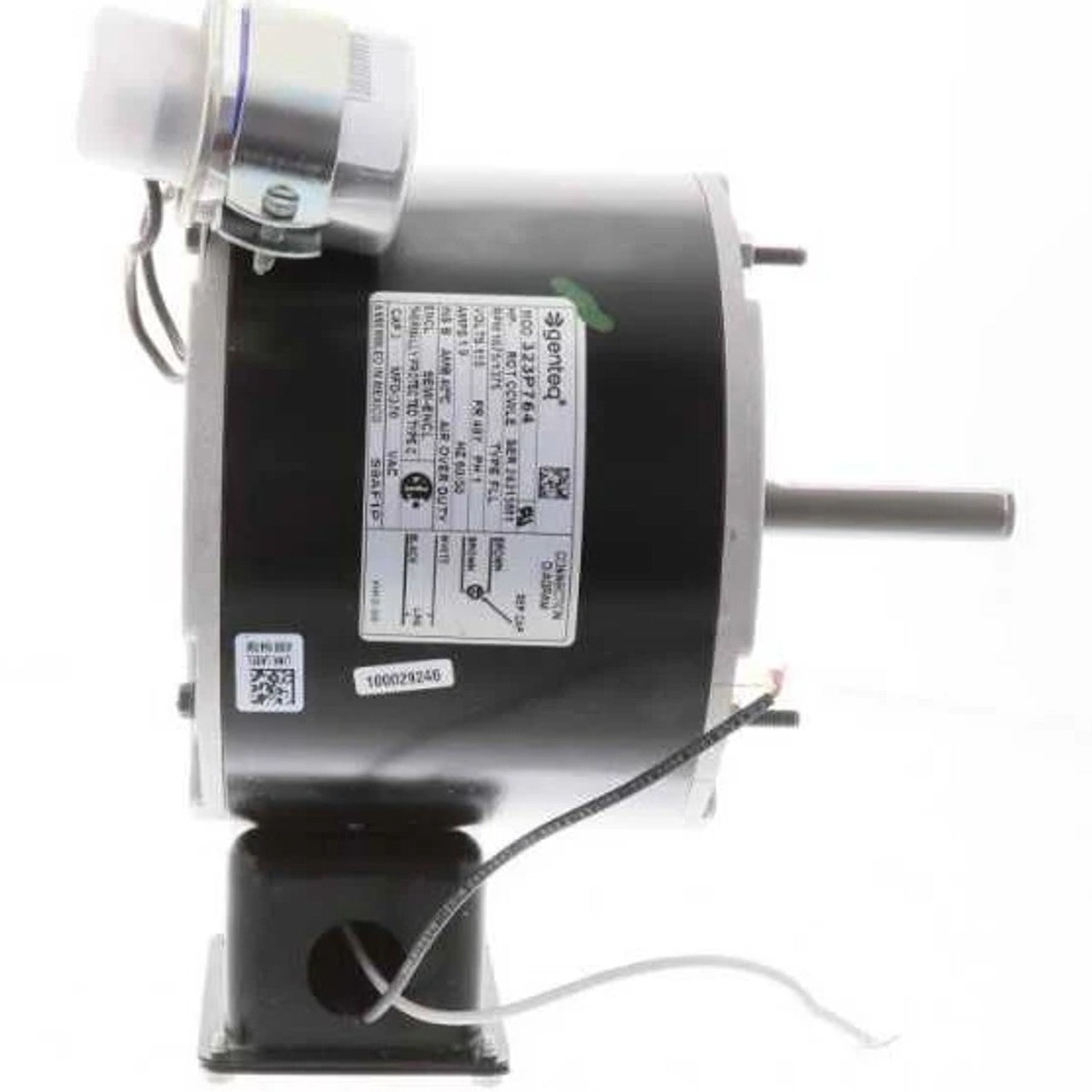

The PENN VENT 60076-0 motor is a one-sixth horsepower motor that operates at one hundred fifteen volts. It has a forty-eight Y frame and runs at two speeds: one thousand six hundred seventy-five and one thousand three hundred seventy-five RPM with a one point nine amp draw. This motor is designed for air over duty applications and includes a three DV capacitor that is mounted directly to the motor. The motor has a clockwise rotation at the shaft end.

• Operates at two speeds: 1675 and 1375 RPM
• Features clockwise shaft end rotation
• Includes a three DV capacitor mounted directly to the motor

Product Highlights

This motor is an excellent replacement for the PENN VENT 323P764 and FMX9Q. Its design makes it suitable for various air over applications.

Product Information

Standard Information

• Brand: PENN VENT
• MPN: 60076-0

Technical Specifications

• HP: 1/6
• RPM: 1675/1375
• Amps: 1.9
• Rotation: CW Shaft End
• Voltage: 115
• Phase: 1
• Frame: 48Y
• Frequency: 60/50
• Duty: Air Over
• Capacitor: 3DV Included, mounted directly to motor
• Speed: 2-Speed
• Shaft Size: 1/2 inches x 2 5/8 inches
• Motor Diameter: 5 5/8 inches
• Motor Case Length: 4 1/4 inches
