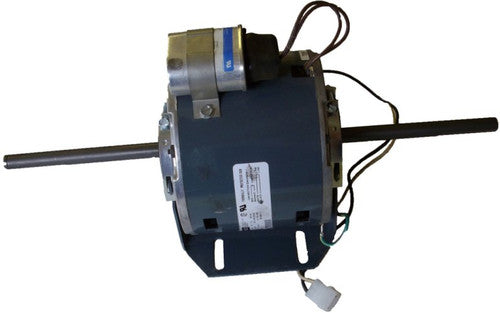

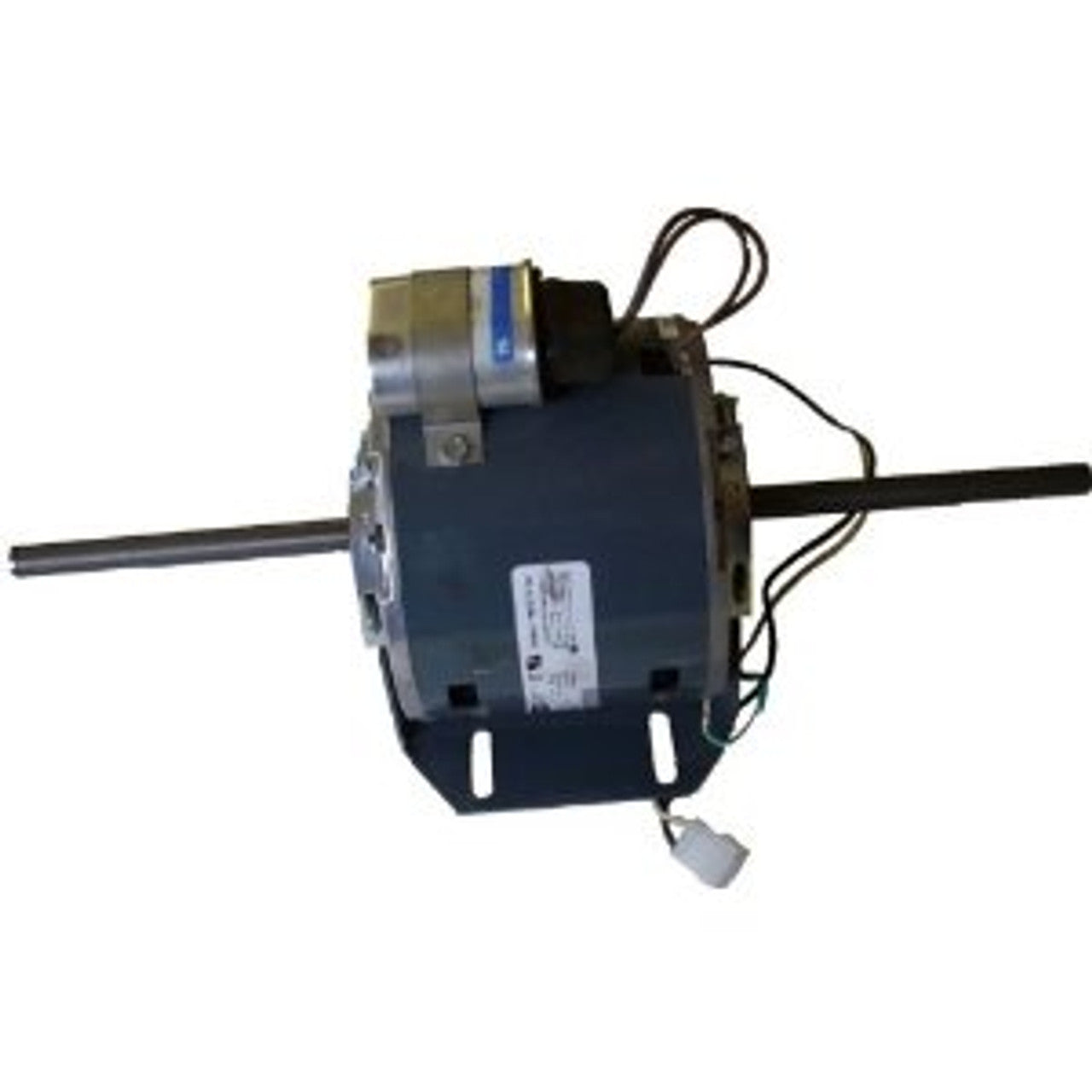

PENN VENT 56351-0 Electric Motor 115V Double Shaft Capacitor Included

Product Description

The PENN VENT 56351-0 is an electric motor suitable for various applications. This motor operates at one hundred fifteen volts and utilizes a Permanent Split Capacitor (PSC) type design. The motor has a diameter of five and five-eighths inches and features a double shaft setup.

• Operates with a PSC type design
• Includes a ten microfarad capacitor
• Thermally protected for durability

Product Highlights

This motor is built with a resilient base ensuring stability during operation.

Product Information

Standard Information

• MPN: 56351-0
• Brand: PENN VENT

Technical Specifications

• Horsepower: 2/3
• Input Voltage: 115V
• Input Current: 7.6 amps
• RPM: 1530
• Shaft Type: Double shaft
• Shaft Dimensions: 5 1/8 inch x 1/2 inch diameter x 5 1/8 inch
• Motor Diameter: 5-5/8 inches
• Base Type: Resilient Base
• Motor Type: PSC Type Motor
• Capacitor: 10MFD Included
• Protection: Thermally protected
• Type: U24B1
• A Dimension: 5 inches
