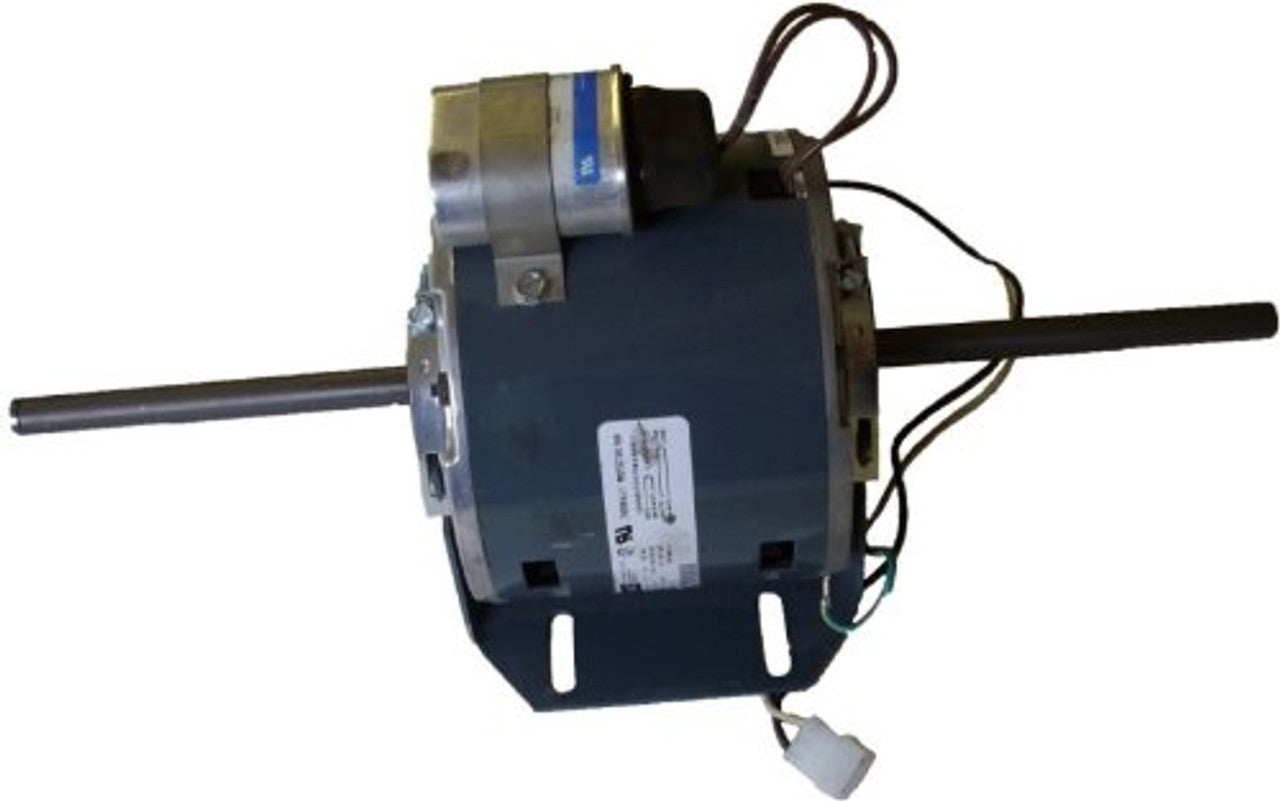

PENN VENT 56349-0 Motor 1/2 HP 115 Volts

Product Description

The PENN VENT 56349-0 is a motor useful for many applications. It runs on one hundred fifteen volts and seven point five amps, providing a half horsepower. The motor operates at a speed of one thousand five hundred fifty RPM and comes with a seven point five MFD capacitor. This double shaft motor has dimensions of five and one-quarter by one-half by five and one-quarter inches. It is classified as a PSC type and features a diameter of five and three-eighths inches.

• Horsepower: 1/2 HP
• Speed: 1550 RPM
• Voltage: 115 Volts

Product Highlights

This motor is ideal for both residential and commercial settings, providing reliable performance in HVAC systems.

Product Information

Standard Information

• UPC: 663001050216

Technical Specifications

• Horsepower: 1/2 HP
• Speed: 1550 RPM
• Input Voltage: 115 Volts
• Input Current: 7.5 Amps
• Motor Diameter: 5-5/8 inches
• Shaft Dimensions: 5-1/4 x 1/2 x 5-1/4 inches
• Motor Type: PSC Motor
• Capacitor: 7.5 MFD Included
• Base Dimensions: 2-3/4 x 4-1/2 inches
• A Dimension: 4-1/2 inches
• Shaft Type: Double Shaft
