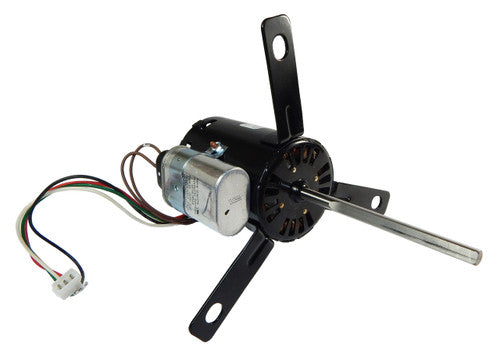

PENN VENT 56346-0 Replacement Motor

Product Description

The PENN VENT 56346-0 is a reliable replacement motor suitable for various applications. It operates at an input voltage of one hundred fifteen volts and provides dual amperage ratings of three point two and one point nine amps. With dual-speed functionality, this motor can run at one thousand five hundred fifty RPM or one thousand fifty RPM. The motor features a diameter of three point three inches and comes with a three lug mounting setup. The design includes thermal protection and supports clockwise shaft rotation.

• Operates at one hundred fifteen volts
• Dual-speed capabilities: one thousand five hundred fifty RPM and one thousand fifty RPM
• Includes three lug mounting

Product Highlights

This motor is thermally protected and designed for effective performance in various environments.

Product Information

Standard Information

• Brand: PENN VENT
• MPN: 56346-0

Technical Specifications

• Horsepower: 0.27
• Input Voltage: 115V
• Output Current: 3.20/1.90 amps
• RPM: 1550/1050
• Frequency: 60 Hz
• Shaft Length: 5 and 1/2 inches
• Shaft Diameter: 3/8 inches
• Rotation: CWSE
• Phase: 1
• Motor Diameter: 3.3 inches
• Enclosure: Open
• Mounting Type: 3 Lug Mounting
• Operating Temperature: 40 degrees Celsius
• Weight: 8 lbs
• Speeds: 2
• Bearings: Ball
• Protection: Thermally Protected
• Motor Type: Permanent Split Capacitor
