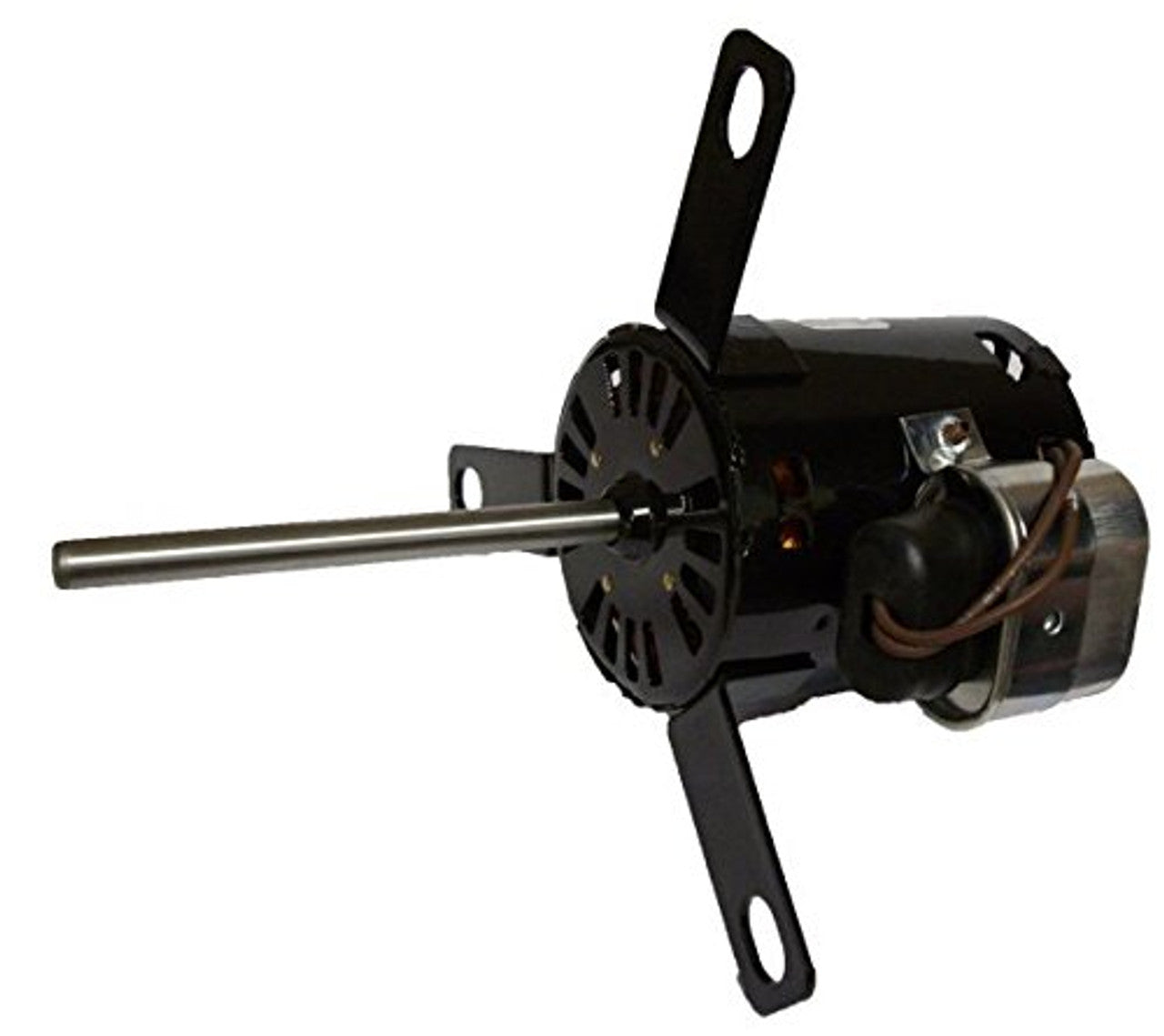

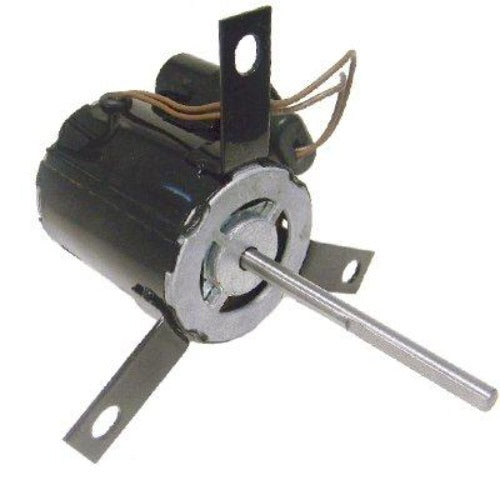

PENN VENT 56345-0 Replacement Motor

Product Description

The PENN VENT 56345-0 is a replacement motor known for its reliability in various applications. This single-phase motor operates at one hundred fifteen volts and sixty hertz. Designed with a horsepower of one over twenty-five, it rotates at one thousand fifty RPM.

• Single-phase permanent split capacitor motor
• Clockwise shaft end rotation with three mounting lugs
• Open enclosure with sleeve bearings

Product Highlights

Suitable for various installations, the motor is compact and reliably built. It features an open construction that allows for efficient airflow around the motor.

Product Information

Standard Information

• Manufacturer Part Number: 56345-0
• HP: 1/25

Technical Specifications

• Input Voltage: 115V
• Input Current: 1.00 amps
• RPM: 1050
• Frequency: 60 Hz
• Length: 4-13/16 inches
• Shaft Dimensions: 3/8 x 4-9/16 inches
• Motor Type: Permanent Split Capacitor
• Speeds: 1
• Diameter: 3.3 inches
• Bearings: Sleeve
• Rotation: Clockwise
• Thermal Protection: Auto
• Service Factor: 1.00
• Phase: 1
• Ambient Temperature: 40°C
