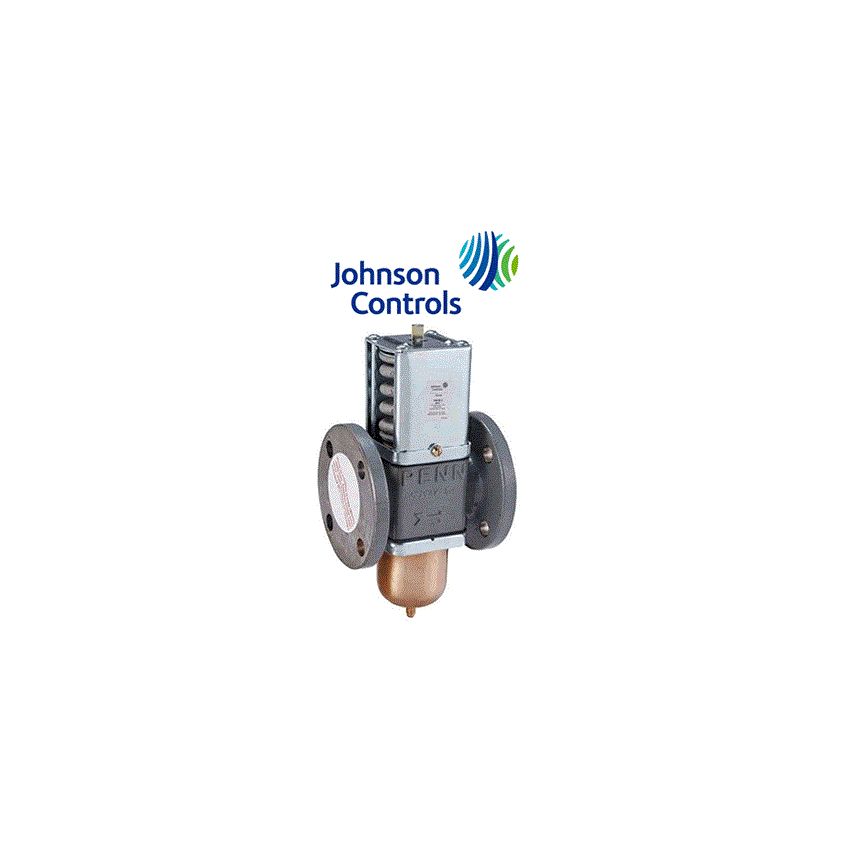

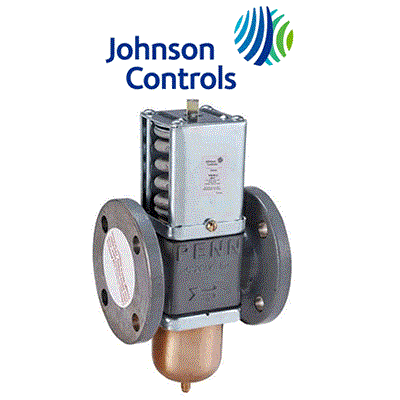

PENN V46AT-1C 2.5in Flanged 2W Water Reg Valve 70/170#

Product Description

The PENN V46AT-1C is a two-way water regulating valve with a flanged connection. It is suitable for applications requiring precise pressure control within a range of seventy to one hundred seventy PSI. This valve is designed to handle water and non-R410 refrigerants, making it versatile for various commercial applications.

• Pressure actuated with an opening point adjustment range of 70-170 PSI
• Four hole ASME flange connection for secure attachment
• Compatible with multiple refrigerant types including R12, R22, and R134A

Product Highlights

This valve operates effectively in a wide range of commercial applications, ensuring optimal performance in water control systems.

Product Information

Standard Information

• Brand: PENN
• MPN: V46AT-1C

Technical Specifications

• Capillary: No Capillary
• Pipe Size: 2.5 inches
• Item Weight: 29.50 lbs per EA
• Valve Piping: Two-Way
• Connection Type: Four Hole ASME Flange
• Application Type: Commercial
• Refrigerant Type: R12, R22, R134A, R502, R404A, R507
• Opening Point Media: Pressure
• Connector Description: 1/4 In. Male Flare Fitting
• High Pressure Refrigerant: Non R410A
• Opening Point Adjustment Range: 70-170 PSI
