Product Description

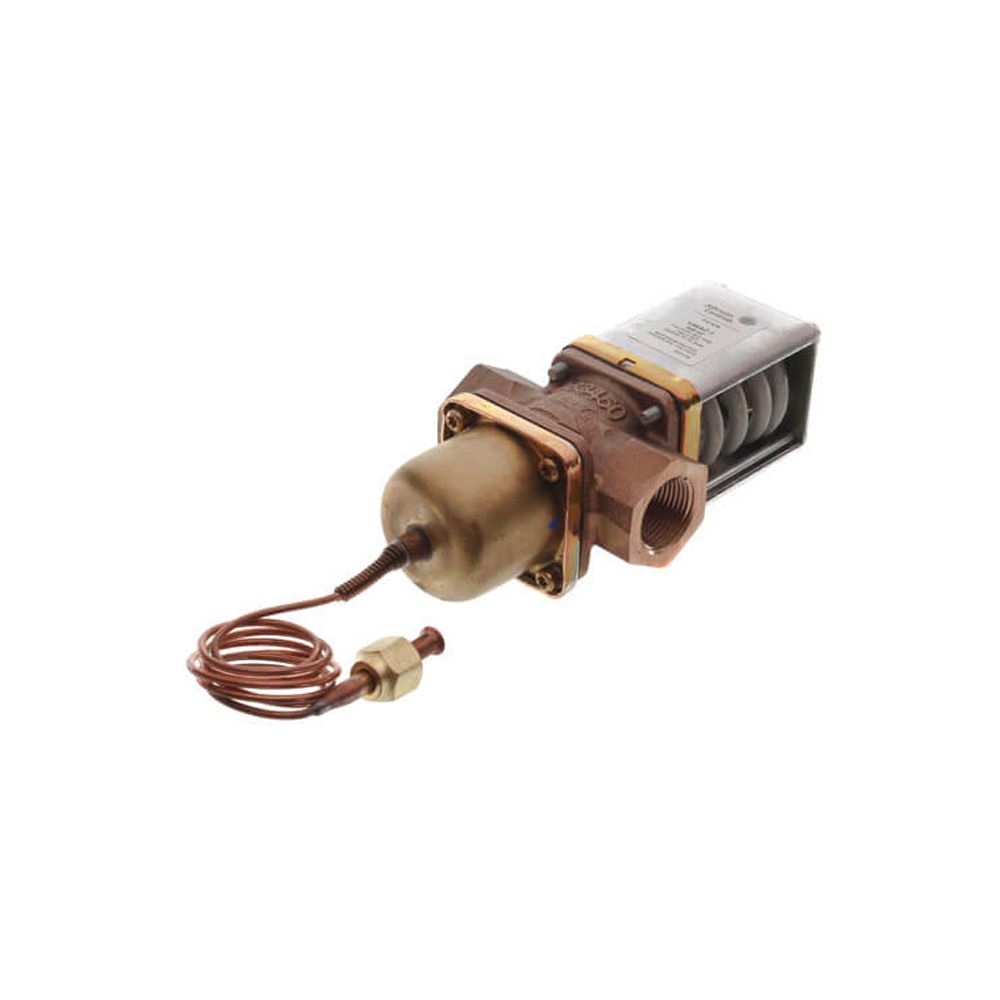

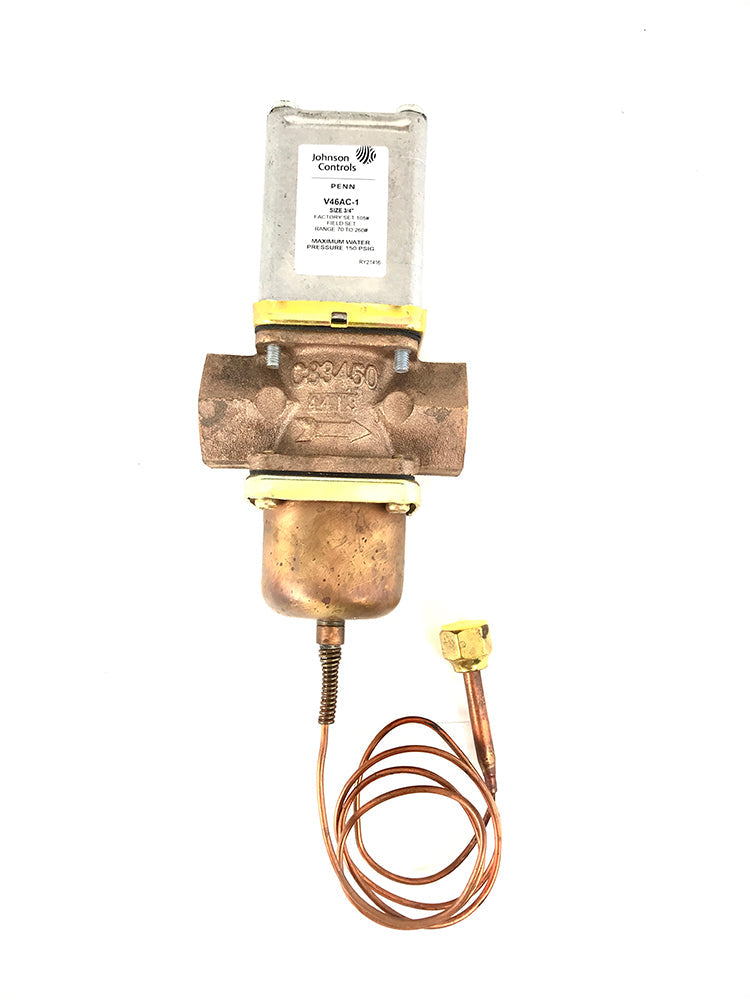

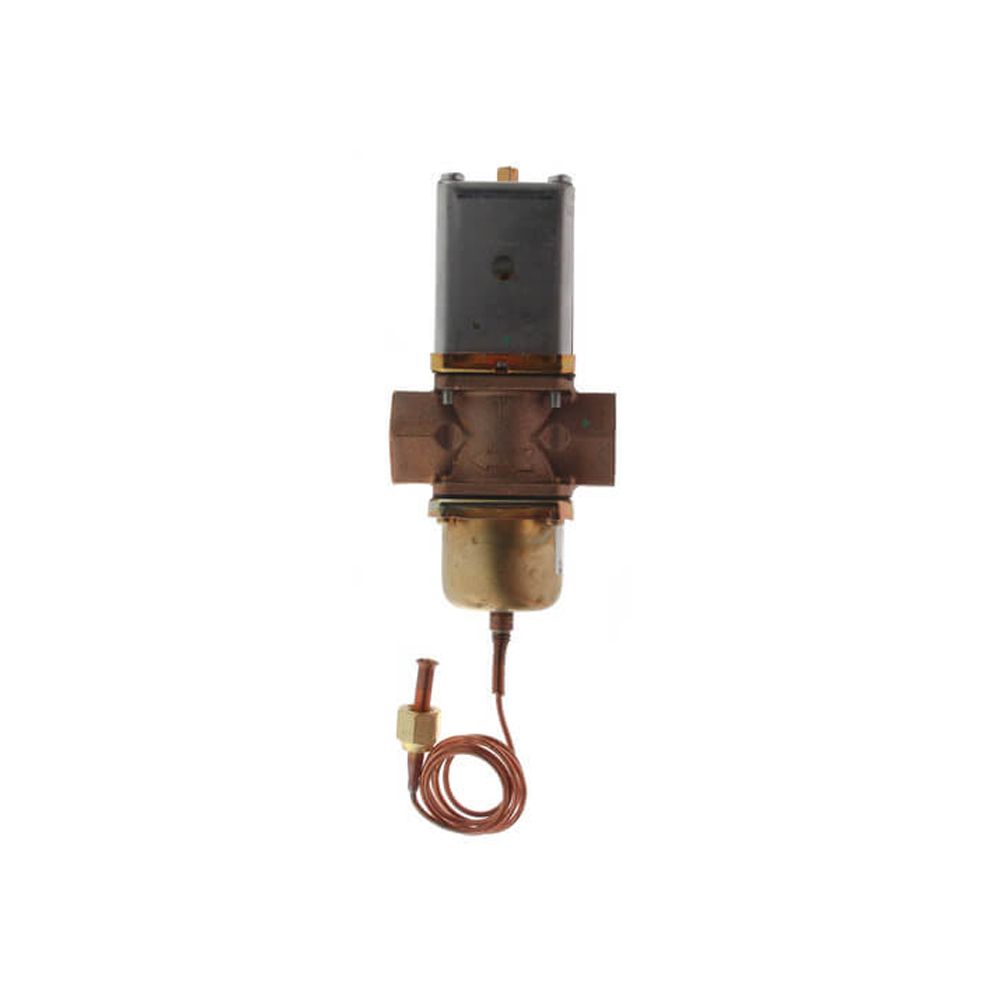

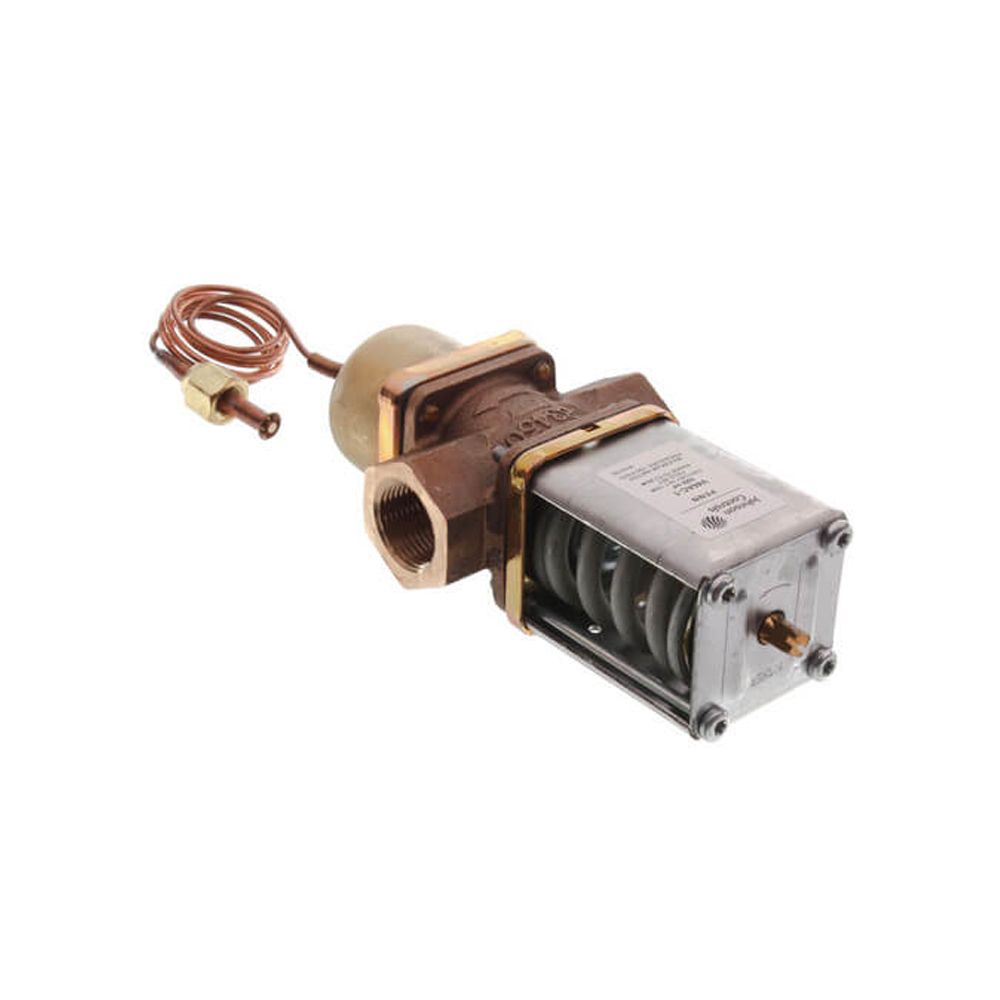

The PENN V46AC-1C is a pressure-actuated water regulating valve suitable for use on closed or open systems. This direct-acting valve opens on pressure increase and is used to regulate water or glycol flow to a water-cooled condenser on a refrigeration system. It features a 30-inch capillary and a 1/4-inch flare nut.
- No close-fitting or sliding parts in water passages
- Minimizes chatter or water hammer
- Free movement of all parts provides smooth pressure modulation
Product Highlights
This valve withstands high hydraulic shock without damage and is designed for commercial applications using non-corrosive refrigerants.
Product Information
Standard Information
-
Brand: PENN
-
Manufacturer Part Number: V46AC-1C
Technical Specifications
-
Applicable Standard: ASME
-
Application: Commercial, Non-Corrosive Refrigerant, Ice Cream Machine, Computer Room Air Conditioning Unit, Refrigeration Case
-
CATALOG NUMBER: V46AC-1C
-
End Connection: Threaded
-
Features/Benefits: No Close Fitting or Sliding Parts in Water Passages; Minimizes Chatter or Water Hammer; Free Movement of all Parts Provides Smooth Pressure Modulation; Refrigerant Adjustment is not Affected by Water Pressure; Withstands High Hydraulic Shock without Damage; Range Spring does not Come in Contact with Cooling Water; Easy Manual Flushing if Required
-
Manufacturer Name: Penn
-
Manufacturer Part Number: V46AC-1C
-
Nominal Size: 3/4 Inch
-
Pressure Rating: 70 to 260 PSI
-
Series/Model: V46
-
Type: Direct Acting
-
Pressure Element: 30 Inch Capillary, 1/4 Inch Flare Nut
-
Connection Type: NPT
-
Valve Piping: Two-Way
-
Application Type: Commercial
-
Refrigerant Type: R12, R22, R134A, R502, R404A, R507
-
Opening Point Media: Pressure
-
Connector Description: 1/4 In. Flare Nut with 30 in capillary
-
High Pressure Refrigerant: Non R410A
-
Opening Point Adjustment Range: 70-260 PSI
-
Pipe Size: 0.75
