PENN V146EK-1C 3/4in Sweat 2W Water Reg Valve 70/260#

Product Description

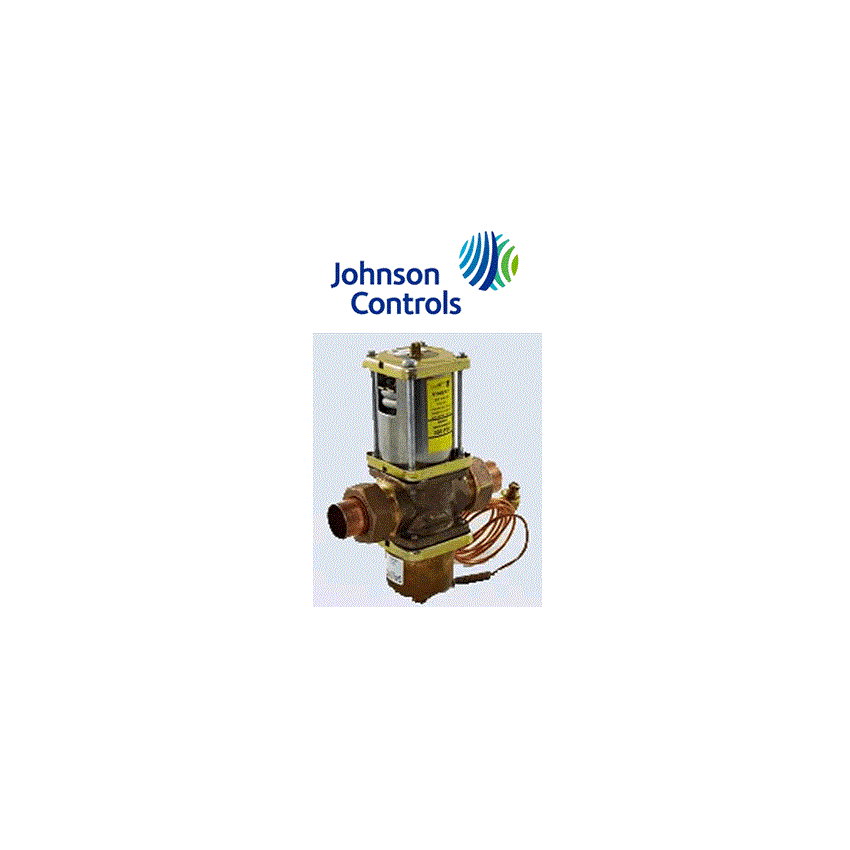

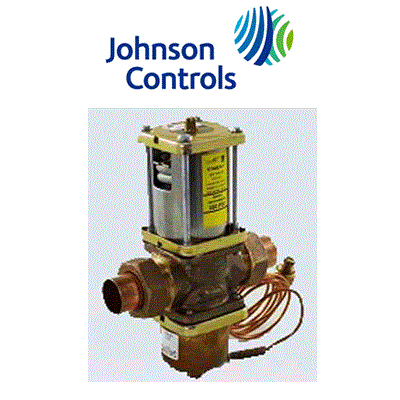

The PENN V146EK-1C is a 3/4 inch sweat two-way water regulating valve. It operates under pressure actuated control, with a maximum pressure rating of three hundred fifty PSI. This valve is ideal for commercial applications, supporting various refrigerants including R12, R22, R134A, R502, R404A, and R507. The valve features a capillary of thirty inches and uses a one-fourth inch flare nut connection.

• Two-way operation for efficient flow control
• Maximum pressure of three hundred fifty PSI
• Compatible with multiple refrigerant types

Product Highlights

This valve is designed for commercial use and provides reliable pressure control for various applications.

Product Information

Standard Information

• Brand: PENN
• Part Number: V146EK-1C

Technical Specifications

• Capillary: Capillary
• Pipe Size: 0.75 inches
• Valve Piping: Two-Way
• Connection Type: Sweat
• Application Type: Commercial
• Refrigerant Type: R12, R22, R134A, R502, R404A, R507
• Opening Point Media: Pressure
• Connector Description: 1/4 In. Flare Nut with 48 in capillary
