Penn-Union TP-4/0 Aluminum Terminal Plug - Center Pin 4/0 AWG

Product Description

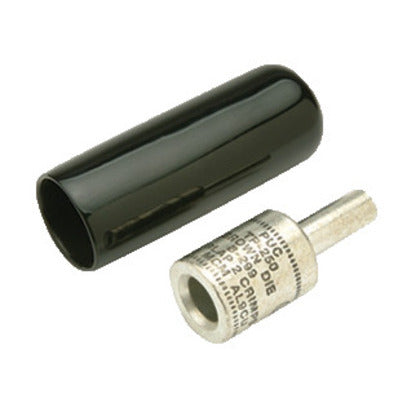

The PENN-UNION TP-4/0 aluminum terminal plug is manufactured from high-strength aluminum alloy, tin-plated, and filled with oxide inhibitor for a cool running compression connection. It features an optimum design to permit the use of stranded copper or aluminum conductors in equipment such as panel boards and meter sockets. Marked with catalog number, die index, color code and required number of crimps. Insulating cover is supplied and is rated 600 V.

• Manufactured from high-strength aluminum alloy
• Tin-plated and filled with oxide inhibitor
• Optimum design for stranded copper or aluminum conductors
• Insulating cover included, rated 600V
• Marked with catalog number, die index, color code, and crimp count

Product Highlights

Aluminum terminal plug for terminating copper or aluminum wire. Features tin plating and oxide inhibitor for cool compression connections. Includes insulating cover.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: TP-4/0
• Country of Origin: United States

Technical Specifications

• A (in.): 0.42
• OD: 0.85
• L1: 2.59
• L2: 1.22
• C (in.): 2.25
• Color Code: White
• Diameter: 0.528 in
• Material: Aluminum
• Allowable Gauge Range: 4/0
• Manufacturer Part Number: TP4/0
• Manufacturer: Penn Union
• Product Series: TP
• Family Series: Penn Union Terminals, TP Series
• Description: Aluminum Terminal Plug
• Conductor Size: 4/0 AWG
• Pigtail Size: 2/0 AWG
• Pigtail Style: Solid Centered
• Barrel Length: 2.25 "
• Pigtail Length: 1.22 "
• Approvals: UL
