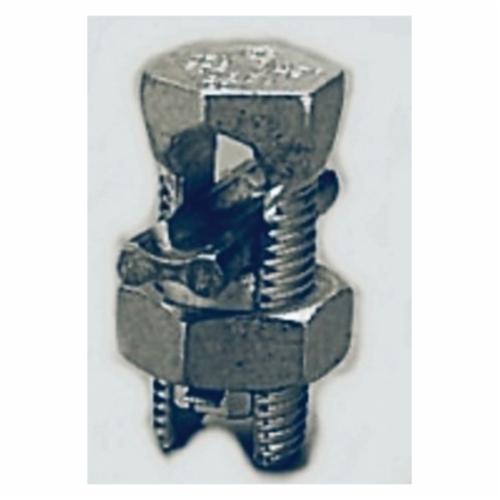

Penn-Union SW6 SW Series Split Bolt Connector 8 to 2 AWG

Product Description

The PENN-UNION SW6 SW Series Split Bolt Connector is designed for connecting 8 to 2 AWG ACSR, aluminum, copper, solid, and stranded conductors. Constructed from high-strength copper alloy, it offers resistance to corrosion and season cracking. The connector features an electro-tin plated bolt, nut, spacer, and pressure bar, ensuring high contact pressure under torque.

• Made from high strength copper alloy
• Suitable for ACSR, aluminum, copper, solid, and stranded conductors
• Electro-tin plated components enhance corrosion resistance

Product Highlights

High-strength copper alloy split bolt connector for secure and corrosion-resistant connections of various conductor types.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: SW6

Technical Specifications

• Series: SW Series
• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Conductor Size: 8 to 2 AWG
• Specifications: 1 Port 275 in-lb Torque
• Temperature Rating: 90 deg C
• Material: Copper Alloy
• Finish: Tin Plated
• Product Series: SW
• Family Series: Penn Union Connectors, SW Series
• Description: Copper Alloy-Bodied Split Bolt Connector / Tin Plated
• Style: Split Bolt
• Composition: Copper
• Cond. Equal Main/Tap: 8 sol.-2 str.
• Cond. Max Main/Min Tap: 8 sol.
• Approvals: CSA, UL
• Comments: Two Conductor Al-Al, Al-Cu & Cu-Cu
• Manufacturer Part Number: SW6
• Manufacturer: Penn Union
