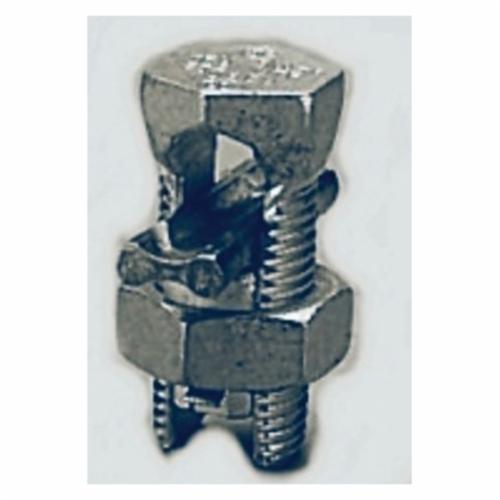

Penn-Union SW4 SW Series Split Bolt Connector, 10 to 6 AWG ACSR/Aluminum/Copper/Solid/Stranded Conductor

Product Description

The Penn-Union SW4 Split Bolt Connector is designed for use with conductors ranging from ten to six AWG. This connector is suitable for ACSR, aluminum, copper, solid, and stranded conductors. It is made from a high strength copper alloy that offers resistance to corrosion.

• Compatible with 10 to 6 AWG conductors.
• Features an electro-tin plated design for added durability.
• Allows for high contact pressure under torque.

Product Highlights

This connector is easy to install with standard tools and is ideal for various electrical applications. It ensures reliable connections in electrical wiring tasks.

Product Information

Standard Information

• Brand: Penn-Union
• MPN: SW4

Technical Specifications

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded
• Conductor Size: 10 to 6 AWG
• Torque Rating: 165 in-lb
• Temperature Rating: 90 deg C
• Material: Copper Alloy
• Finish: Tin Plated
