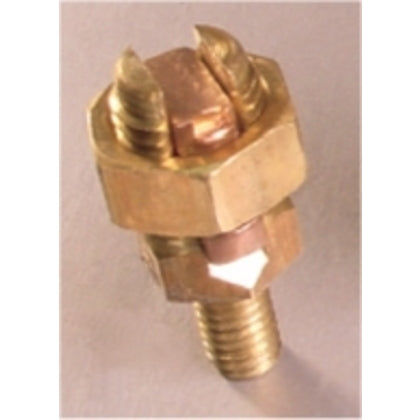

Penn-Union SSS-4A1 2-AWG Male Connector

Product Description

The Penn-Union SSS-4A1 2-AWG Male Connector is designed to ground one cable to steel structures, bus bars, or transformers. It is manufactured from high copper content wrought for maximum conductivity and features a true hex design for easy installation with standard tools. This bronze service post connector is suitable for direct burial applications.

• Designed to Ground One Cable to Steel Structures, Bus Bars, or Transformers
• Manufactured from High Copper Content Wrought for Maximum Conductivity
• True Hex Design for Body and Nut Simplifiers Installation with Standard Socket, Box, or Open End Wrenches

Product Highlights

The Penn-Union SSS-4A1 is a bronze service post connector with a male design, ideal for grounding applications.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: SSS-4A1

Technical Specifications

• Manufacturer Part Number: SSS4A1
• Manufacturer: Penn Union
• Product Series: SSS
• Family Series: Penn Union Grounding, SSS Series
• Description: Bronze Service Post Connector
• Conductor Size: 4-2 AWG
• Number of Conductors: 1
• Material: Bronze
• For Use With: Busbar, Steel Structure, Transformer
• Direct Burial: Yes
• Stud Size: 3/8-16
• Approvals: cULus
