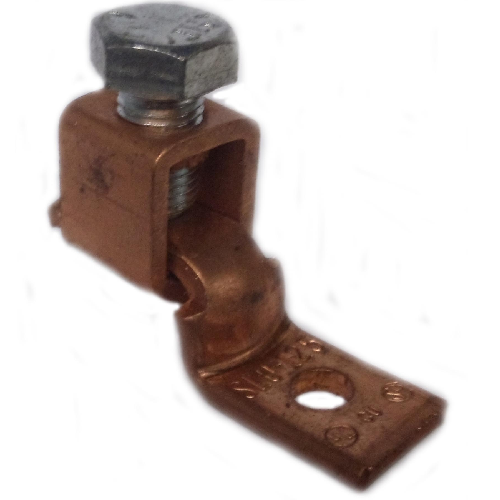

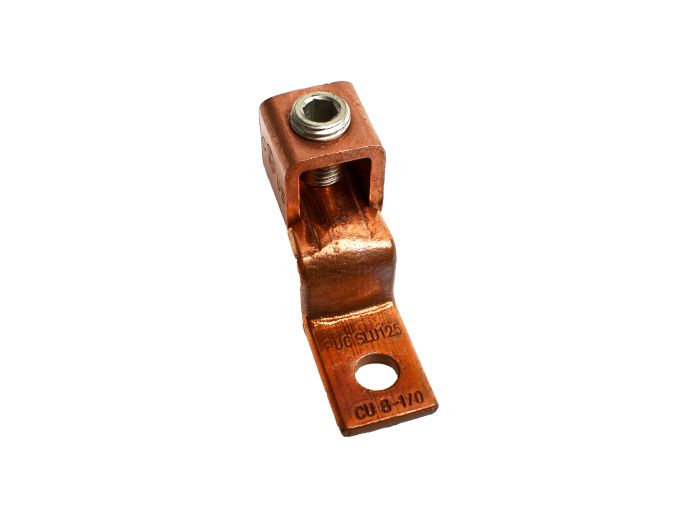

Penn-Union SLU-125 Type SLU Single Collar Mechanical Terminal Lug 8 to 1/0 AWG

Product Description

The PENN-UNION SLU-125 Type SLU single collar mechanical terminal lug accommodates 8 AWG to 1/0 AWG stranded copper conductors. Constructed from 100% pure electrolytic copper, it ensures utmost efficiency. Designed with a 17/64 in stud and one bolt hole, this lug is suitable for copper stranded wire applications.

• 100% pure electrolytic copper for utmost efficiency
• Unique design of the concave pressure bar and V-bottom collar assures positive contact and firm, permanent grip
• One hole, single collar

Product Highlights

This copper lug provides a secure and efficient connection for stranded copper conductors, featuring a robust design and high-quality construction.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: SLU-125

Technical Specifications

• Material: Copper
• Number of Bolt Holes: 1
• Catalog ID: P-USLU-125
• Conductor Size: 8 AWG to 1/0 Stranded AWG
• Conductor Type: Stranded Copper
• Series: SLU
• Stud Size: 17/64 in
• Temperature Rating: 90 deg C
• Tongue Size: 7/8 in L x 5/8 in W
• Standard & Approvals: CSA Certified, UL Listed
• Application: For copper stranded wire
• Mounting: 1-Hole
• Allowable Gauge Range: 8 - 1/0
• Manufacturer Part Number: SLU125
• Manufacturer: Penn Union
• Product Series: SLU
• Family Series: Penn Union Terminals, SLU Series
• Description: Copper Mechanical Lug - One Hole Offset Tongue 8 Sol. to 1/0 Str. CU
• Wire Size Range: 8-1/0 AWG
• Number of Conductors: 1
• Approvals: CSA, UL
