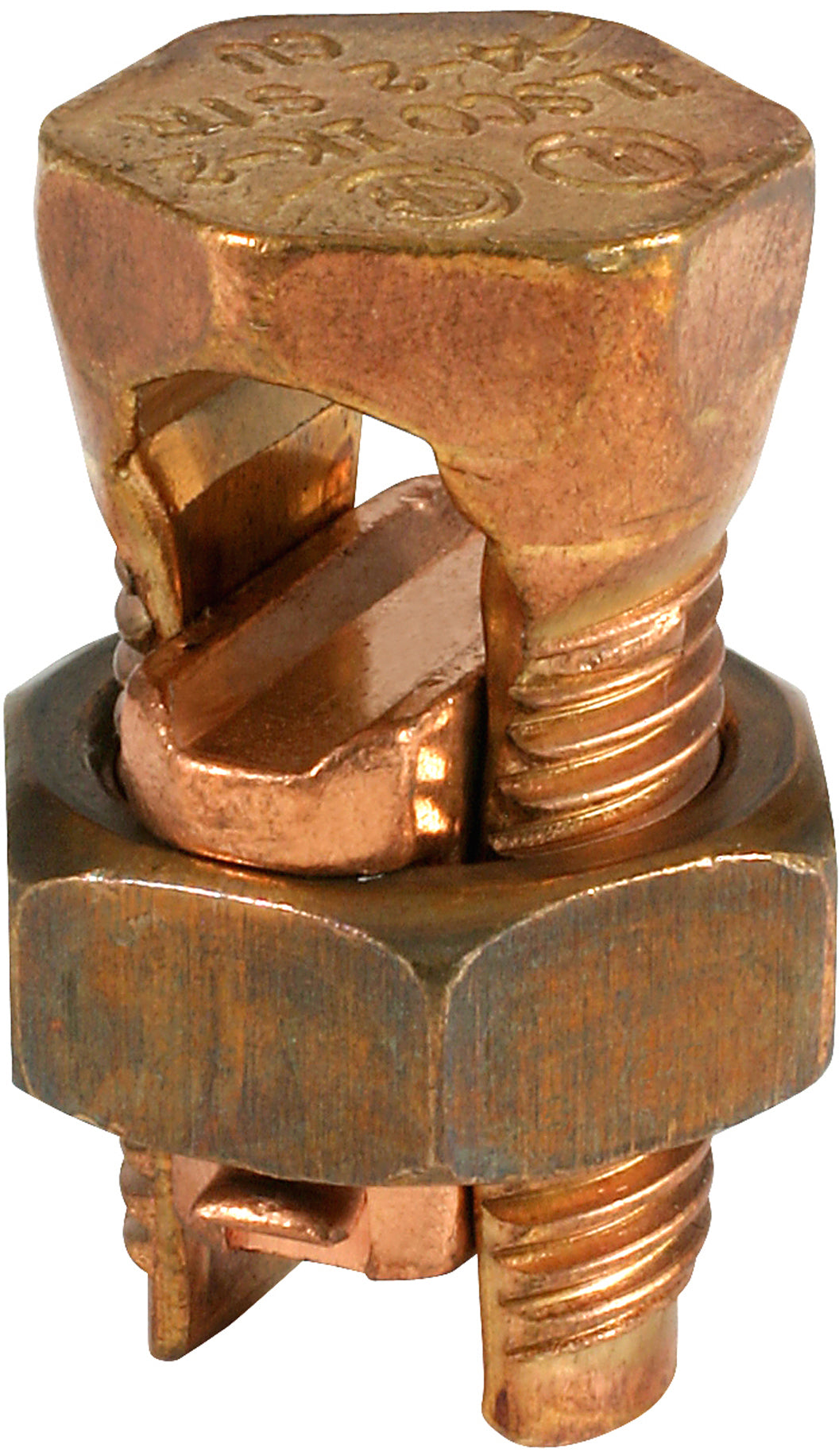

Penn-Union S1/0 S Series Split Bolt Connector 4 to 1/0 AWG

Product Description

The Penn-Union S1/0 S Series Split Bolt Connector is designed for connecting 4 to 1/0 AWG solid or stranded copper conductors. Constructed from high-strength copper alloy, it offers resistance to corrosion and season cracking. This connector provides high contact pressure between conductors under torque and accommodates a wire diameter ranging from 0.204 to 0.375 inches.

• Made from high strength copper alloy
• Highly resistant to corrosion and season cracking
• Under torque this design provides high contact pressure between conductors

Product Highlights

Split bolt connector made from copper alloy for connecting 4 to 1/0 AWG solid or stranded copper conductors.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: S1/0

Technical Specifications

• Conductor Size: 4 to 1/0 AWG
• Material: Copper Alloy
• Series: S Series
• Conductor Type: Solid/Stranded Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
