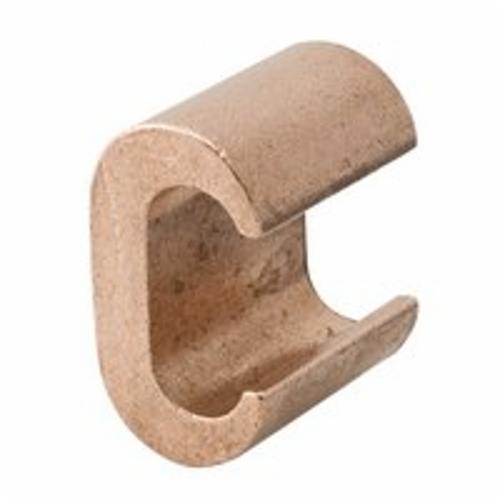

Penn-Union RTC3 Copper Range Taking C-Tap 12 AWG - 6 AWG

Product Description

The PENN-UNION RTC3 copper range taking C-Tap is manufactured from high conductivity wrought copper. It is designed for copper to copper tapping, splicing, or pig tailing. Its compact size allows for easy taping and insulation of connection and is color-coded for proper crimp die selection. Rated for 600 V applications at 90°C.

• Manufactured from high conductivity wrought copper
• Applications include copper to copper tapping, splicing or pig tailing
• Compact size allows for easy taping and insulation of connection

Product Highlights

The RTC3 C-Tap provides a low installation cost and allows for lower inventory requirements. cULus listed to UL 486A-486B for power applications and UL 467 for grounding, bonding, and direct burial applications.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: RTC3
• Country of Origin: USA

Technical Specifications

• B (in.): 0.32
• C (in.): 0.19
• D (in.): 0.61
• T (in.): 0.07
• Die Color Code: Grey
• Manufacturer: Penn Union
• Manufacturer Part Number: RTC3
• Description: Copper Range Taking C-Taps
• Conductor Type: Copper
• Main/Run Size: 8 to 6 AWG
• Material: Copper
• Series: RTC
• Shape: C
• Tap Size: 12 to 8 AWG
• Temperature Rating: 90 deg C
• Voltage Rating: 600 V
• Wire Strip Length: 5/8 in
