Penn-Union PNL-4 Bronze Terminal Lug 14 AWG - 4 AWG

Product Description

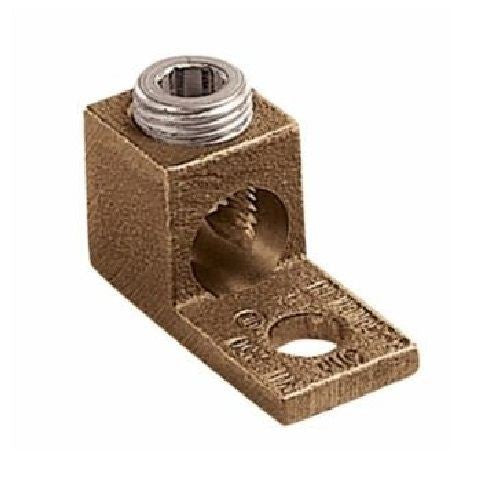

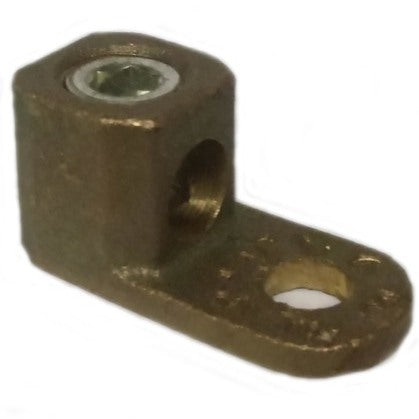

The PENN-UNION PNL-4 is a bronze terminal lug designed for joining copper conductors to equipment pads or bus bars. It accommodates conductor sizes ranging from 14 AWG solid to 4 AWG stranded. The plated steel set screw ensures a strong connection, while the flat bottom provides complete contact with the mounting surface. An inspection hole allows for visual confirmation of proper cable insertion.

• Manufactured from high strength copper alloy for maximum conductivity and corrosion resistance
• Plated steel set screw provides high strength connection
• Flat bottoms allow for complete contact with mounting surface

Product Highlights

This bronze solderless lug ensures maximum conductivity with its high-strength copper alloy construction and plated steel set screw.

Product Information

Standard Information

• Brand: PENN-UNION
• Manufacturer Part Number: PNL-4
• Country of Origin: USA

Technical Specifications

• Conductor Range: 14 Sol. -4 Str.
• C (in.): 0.27
• K (in.): 0.27
• H (in.): 0.56
• L (in.): 1.25
• T (in.): 0.14
• W (in.): 0.53
• J - Screw Thread: 5/16"-24
• Material: Bronze
• Temperature Rating: 90 deg C
• Tongue Style: Straight
• Stud Size: 17/64 in
• Conductor Size: 14 to 4 AWG
• Tongue Size: 17/32 in W X 9/64 in Thk
• Conductor Type: Standard/Set Screw
• Number of Bolt Holes: 1
• Series: PNL
• Mounting: 1-Hole
• Allowable Gauge Range: 14 - 4
